Description

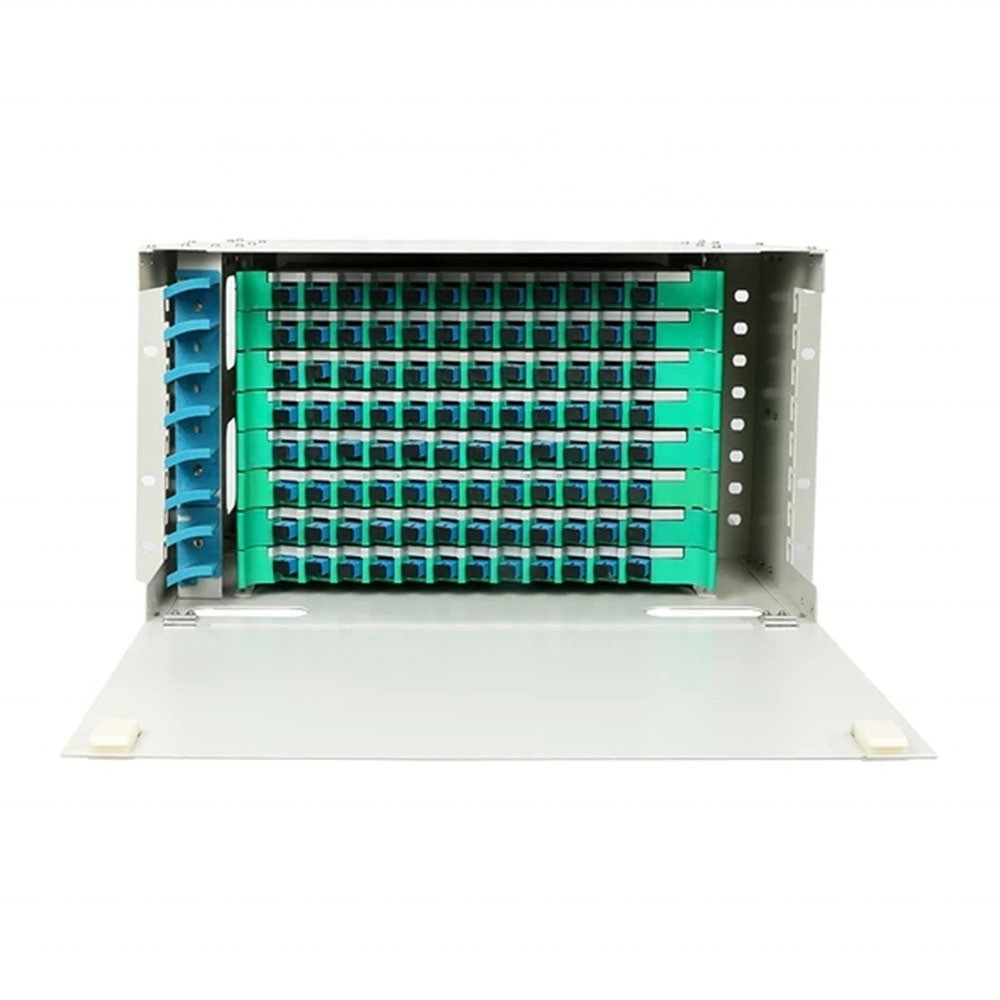

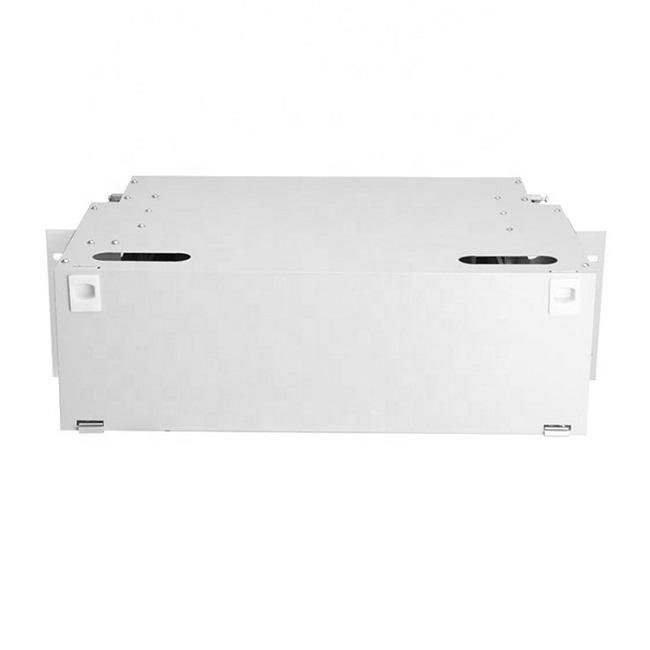

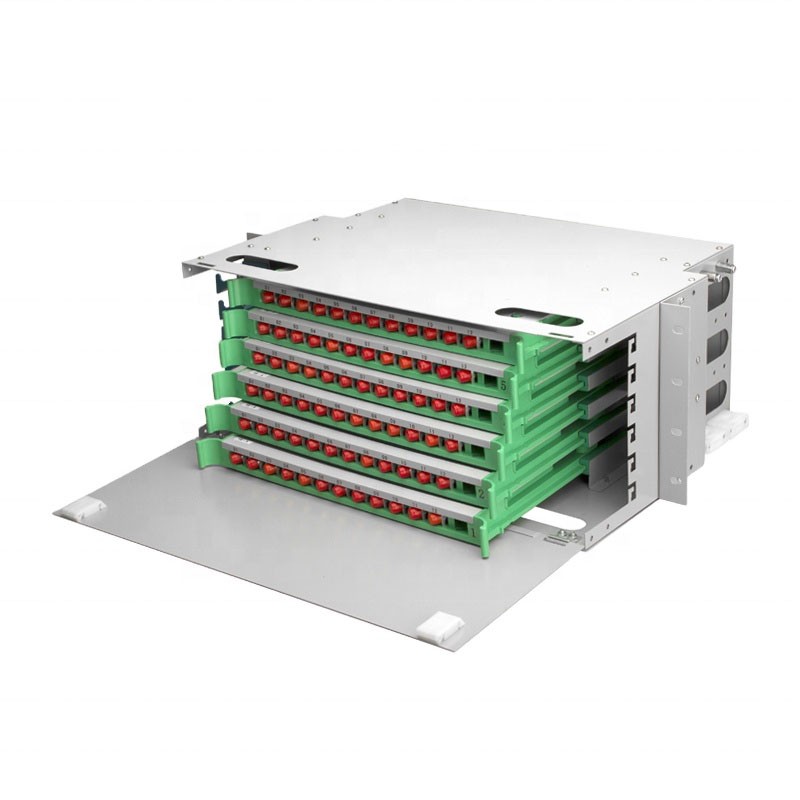

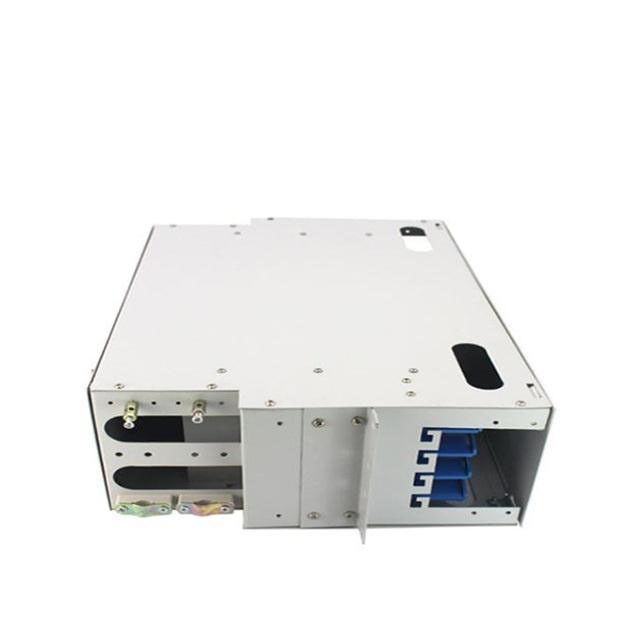

QYY- FTTH fiber equipment optical distribution frame 12/24/48/96 core rack mount
Features:
. Standard size, light weight and reasonable structure
. Splice tray inside changeable
. Can be used in 19'', 23'' standard distribution frame
. Suitable for ribbon and single fiber
. Various panel plate to fit different adapter interface
. Front mark on the plate is easy for identification and operation
. 24C, 36C, 48C, 72C 96C optional, with or without fiber optic pigtails and adapters
. Easy for management and operation
Specifications:
|
Interface Type |
SC FC ST LC |
Width |
19 inch |
|
Use |
FTTH |
Product Specifications |
12/24/48/72/96/144 cores |
|
Type |
Standard 19-inch rack |
Material |
cold rolled sheet |
|
Box color |
white (lacquered frosted) |
Use mode |
single mode, multi-mode |
|
Open mode |
pull open |
Accessories |
cable tie, screw fixed metal parts |
Applications:
. Telecommunications subscriber loop
. Fiber to the home (FTTH)
. LAN/WAN
. CATV
. It can fix the optic cable and protect the connection between cables and pigtails
. The box is unique structure, reasonable layout.
. It’s easy installation and convenient maintenance.
. There is clear identification. Easy for transfer, jumper and test.
