Description

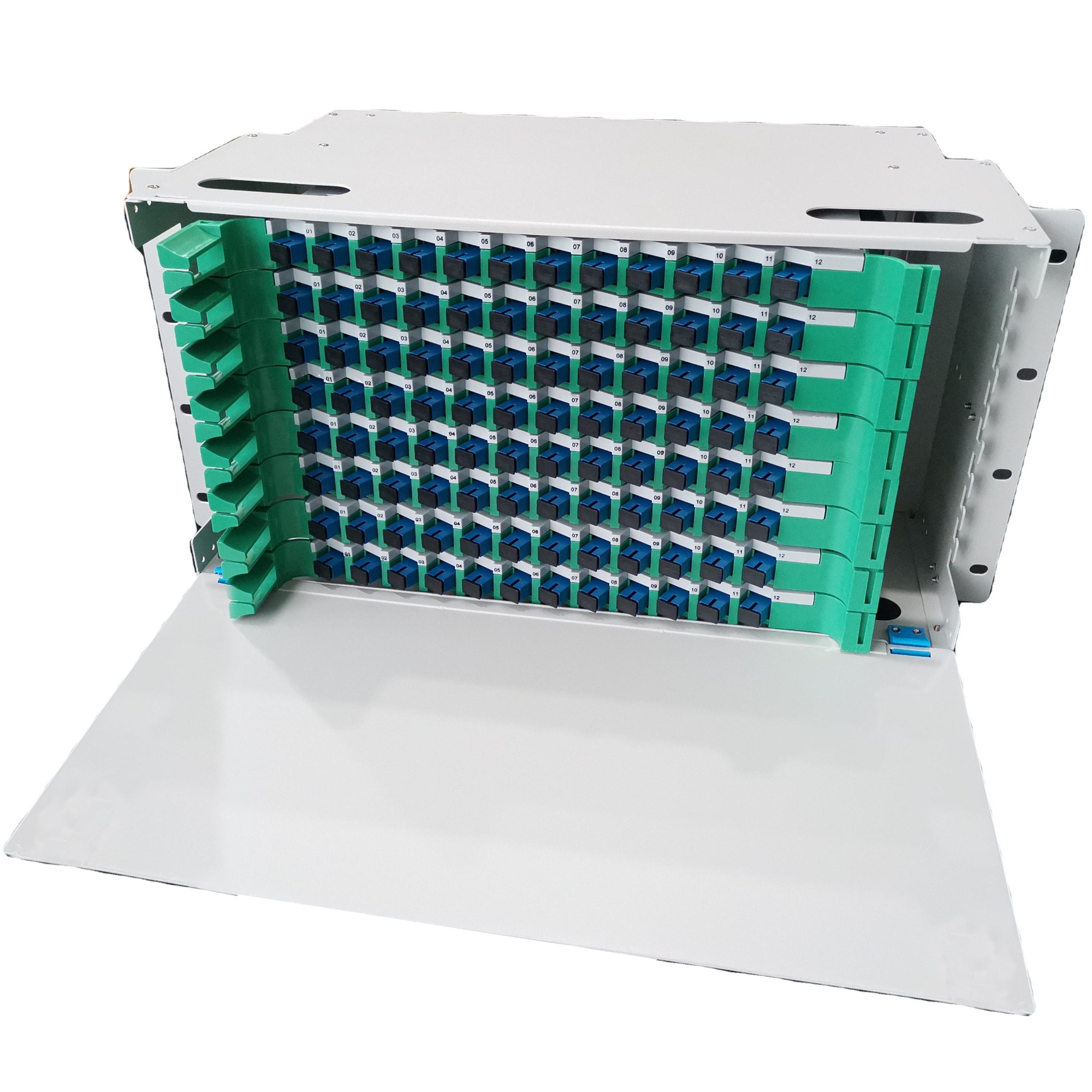

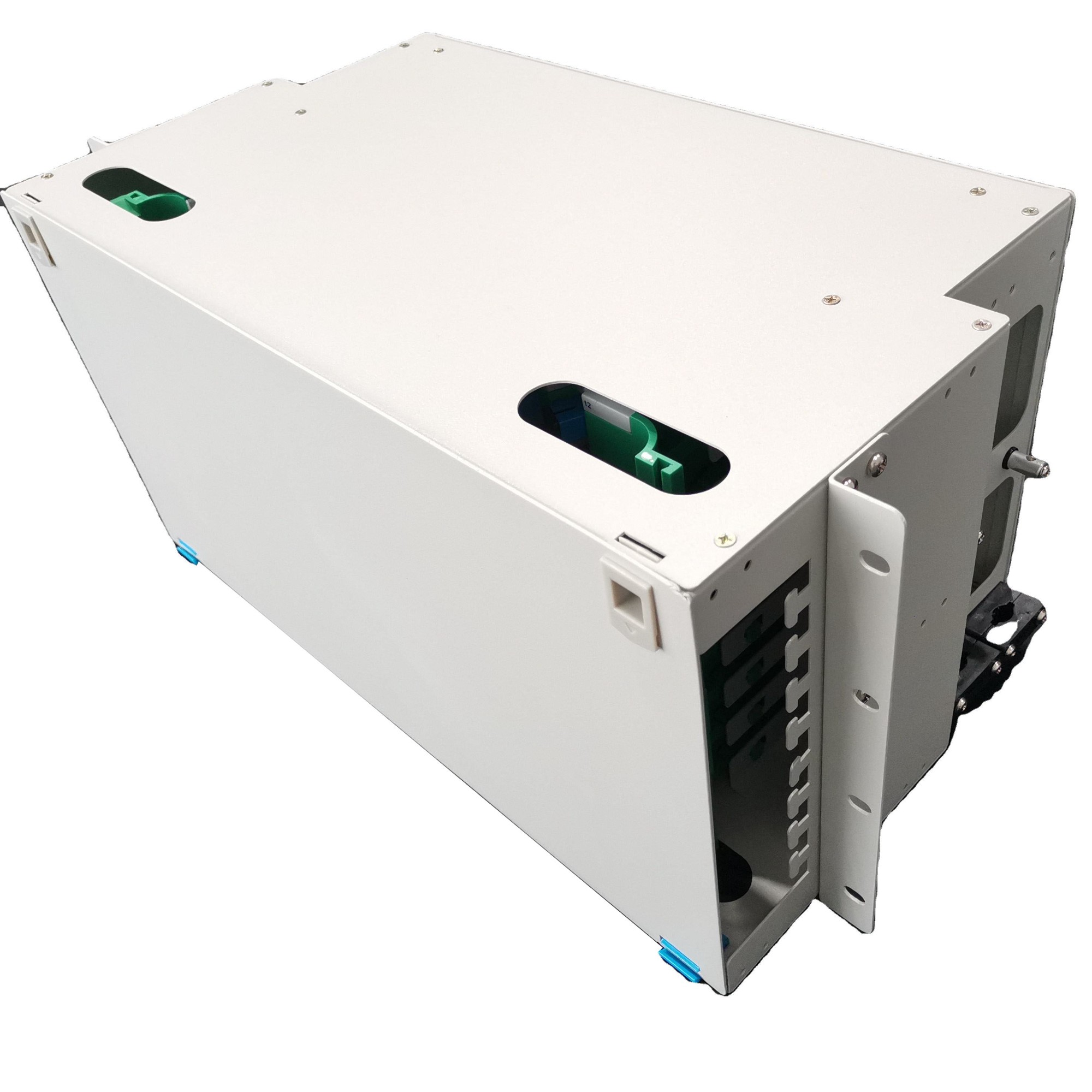

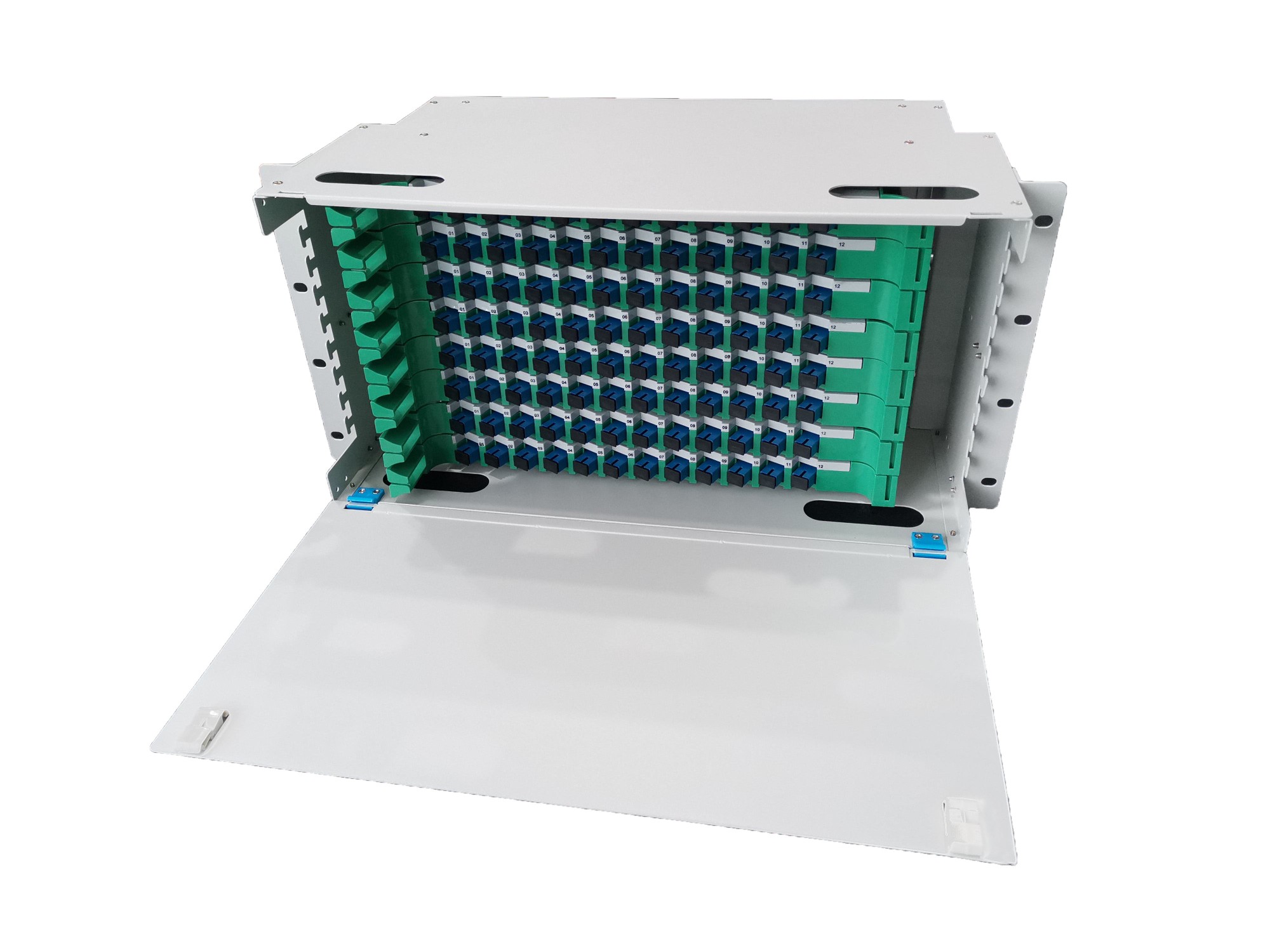

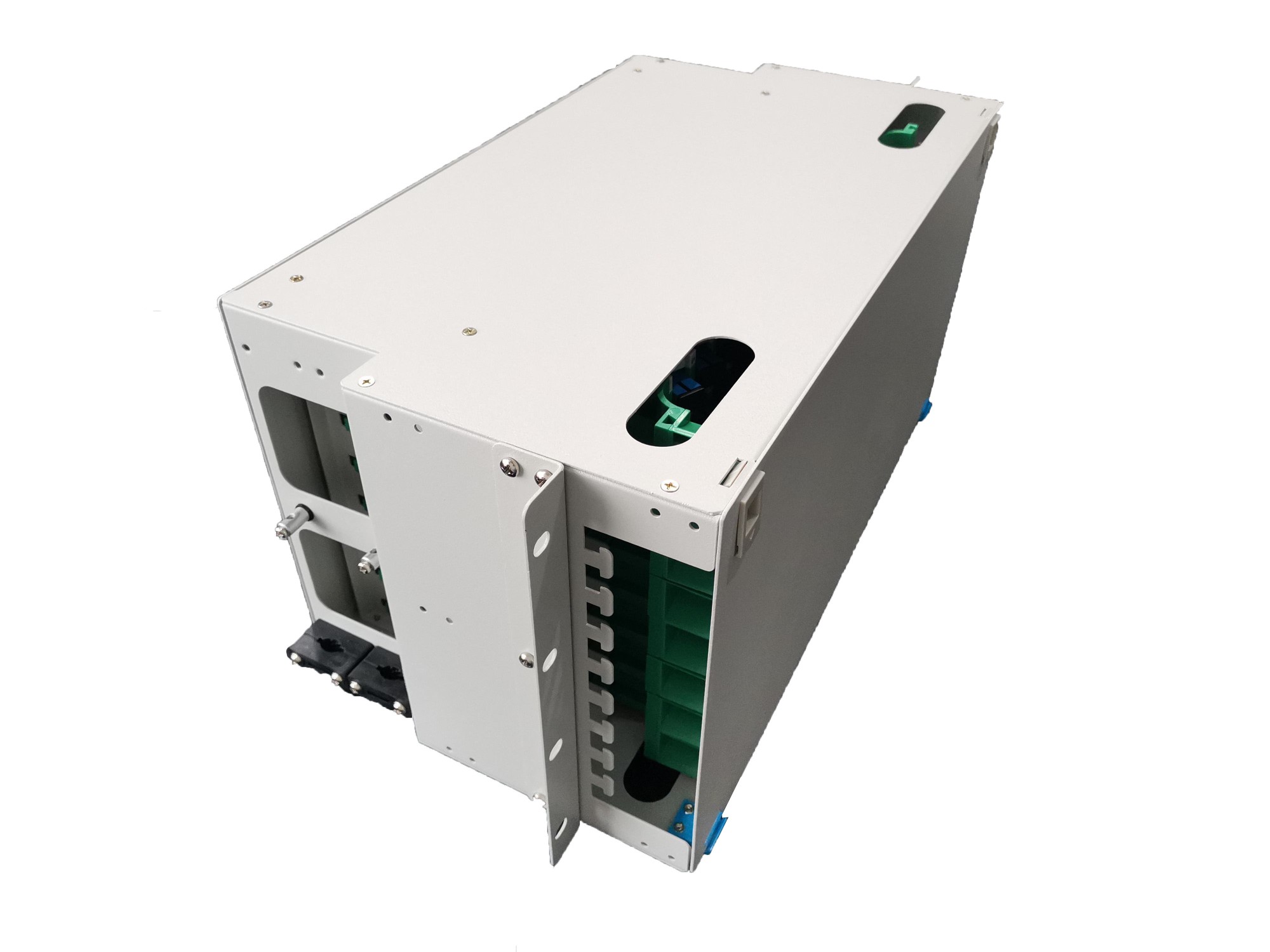

QYY- Rack Mount Fiber Distribution Panel Frame FTTH 24-96 Core SC/FC/LC
Features:
. Dimesion: 482*240*43.5/65.5/117.5/221.5 MM & High quality cold roll steel, electrostatic spraying
. With cable fixing and cable strengthen core fixing kit for managing the cables
. With modular plastic splice trays inside for fiber splicing and distribution
. Each splice tray can load 12pcs SC, FC, LC adapters and support fiber splicing, convenient for using
. 19inch rack mounted application
Specifications:
|
Model |
L |
W |
H |
A |
Cable ports |
Splice tray Qty |
Adapter Qty |
|
ODF-R12-B |
482 |
240 |
43.5 |
465 |
2-60*22 |
1 |
12 |
|
ODF-R24-B |
482 |
240 |
65.5 |
465 |
2-Φ30*70 |
2 |
24 |
|
ODF-R48-B |
482 |
240 |
117.5 |
465 |
2-Φ50*70 |
4 |
48 |
|
ODF-R96-B |
482 |
240 |
221.5 |
465 |
4-70*60 |
8 |
96 |
Applications:
. FTTH, Telecom,
. CATV,
. Data Communications & Local Area Networks
