Description

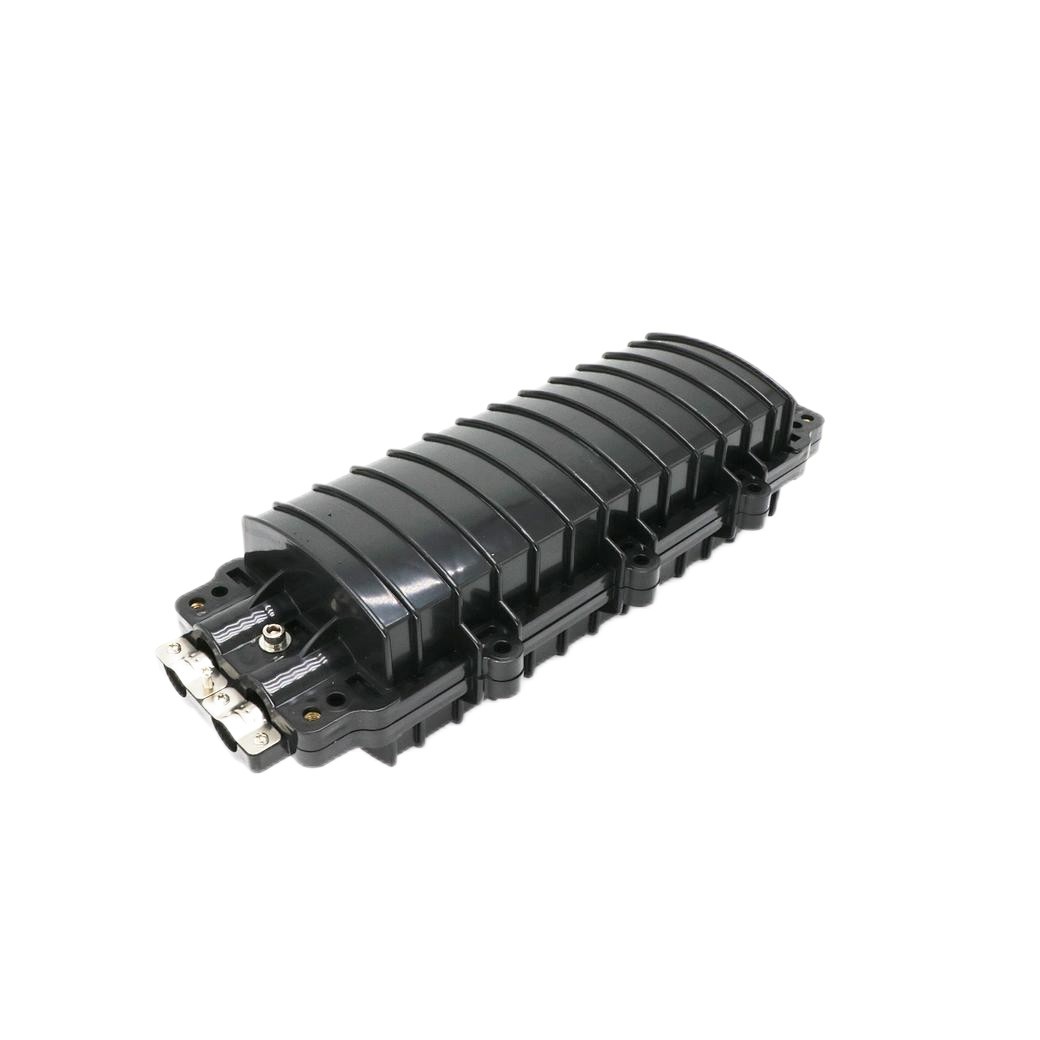

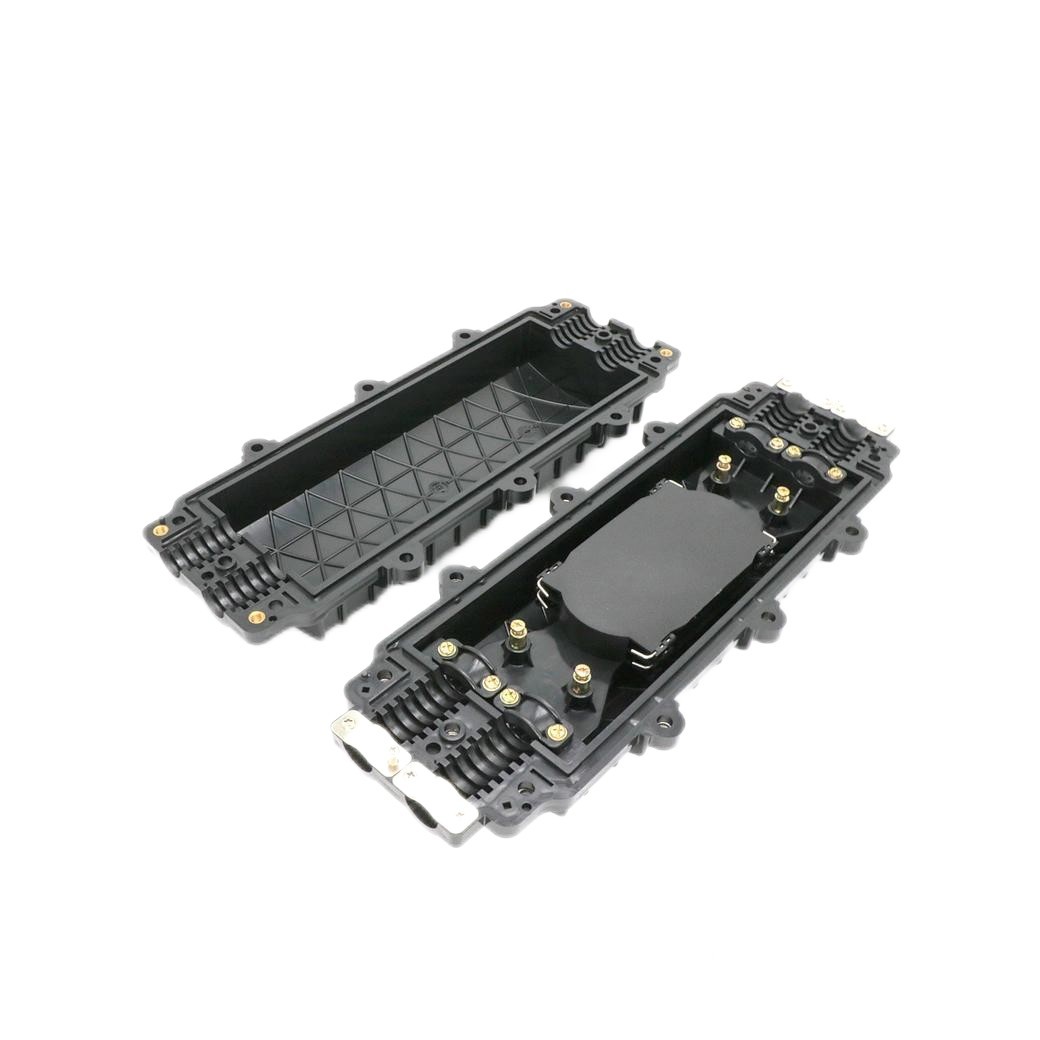

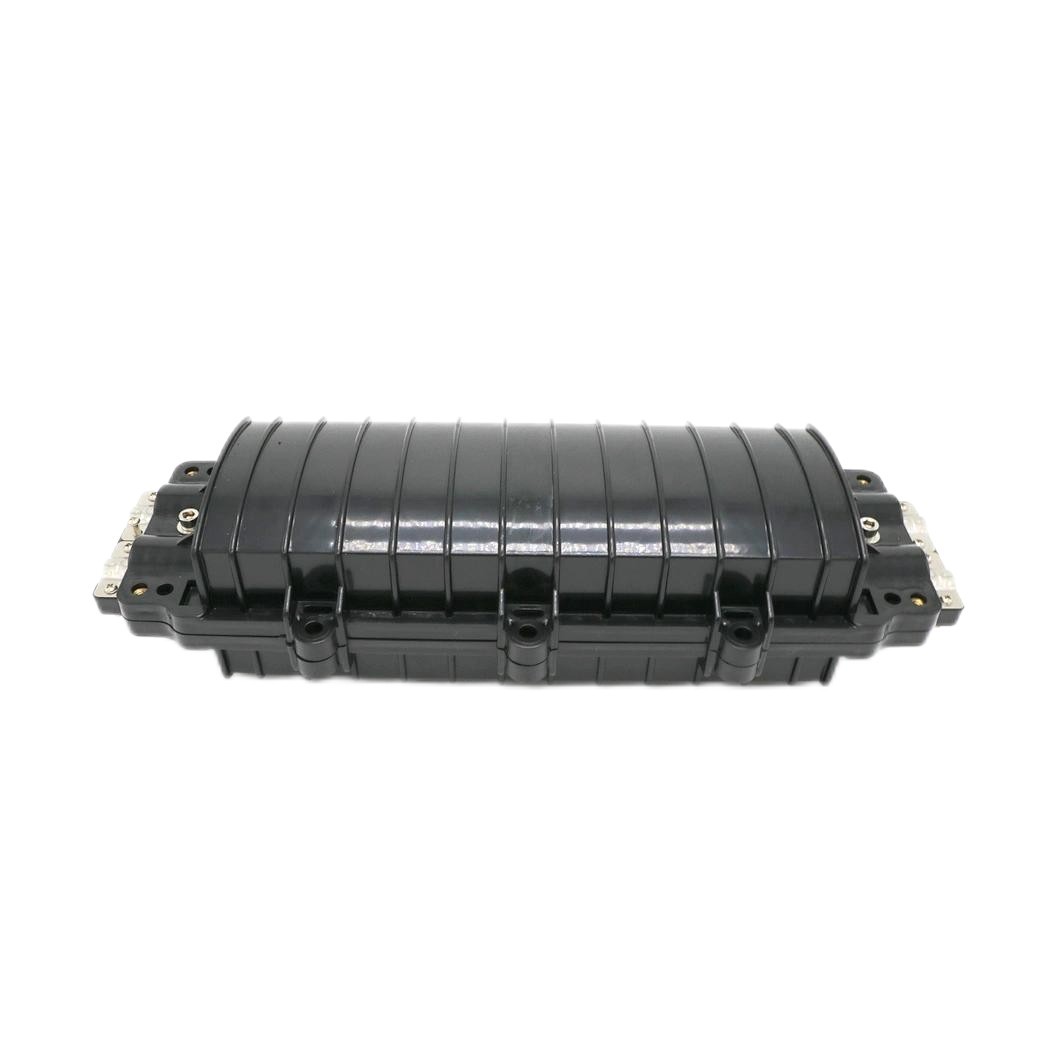

QYY- 48 Cores Fiber Optical Joint Closure Box
Specifications：
. Suitable for ordinary fiber and ribbon fiber.
. Easy to install and re-entry with a common can wrench.
. Excellent Mechanical Sealed to protect fiber and splice ensuring durability.
. Stand up to severe condition of moisture,vibration and extreme temperatures.
. Fully kitted with all parts for convenient operation.
. Overlap structure in splicing tray for easy installation.
. Fiber-bending radium guaranteed more than 40mm.
Specifications：
| Type/Fiber Optic Splice Closure | FOSC-H001 | FOSC-H002 | FOSC-H003 | FOSC-H004 | FOSC-H005 | FOSC-H006 |
| Size(mm) | 435*190*85 | 435*190*120 | 435*190*120 | 435*190*80 | 435*190*170 | 420*150*110 |
| Cable diameter(mm) | Φ 10 – Φ 17 | Φ 10 – Φ 22 | Φ 10 – Φ 22 | Φ 10 – Φ 17 | Φ 10 – Φ 22 | Φ 10 – Φ 23 |
| Max capacity(core) | 96 | 168 | 192 | 96 | 288 | 96 |
| Cable port | 2 in, 2 out | 4 in, 4 out | 3 in, 3 out | |||
| Sealing structure | Sticky cincture | |||||
| Weight(kg) | 2.6 | 2.8 | 2.6 | 2.3 | 4.7 | 2 |
Application：
. belonged to open structure airproof tie-in system of machine pressure.
. used for the protective connection between two or more optical cables.
. widely used for communication, network system, CATV, the fiber optic cable by network.
. uitable for single core fiber optic cable and ribbon fiber optic cable.
