Description

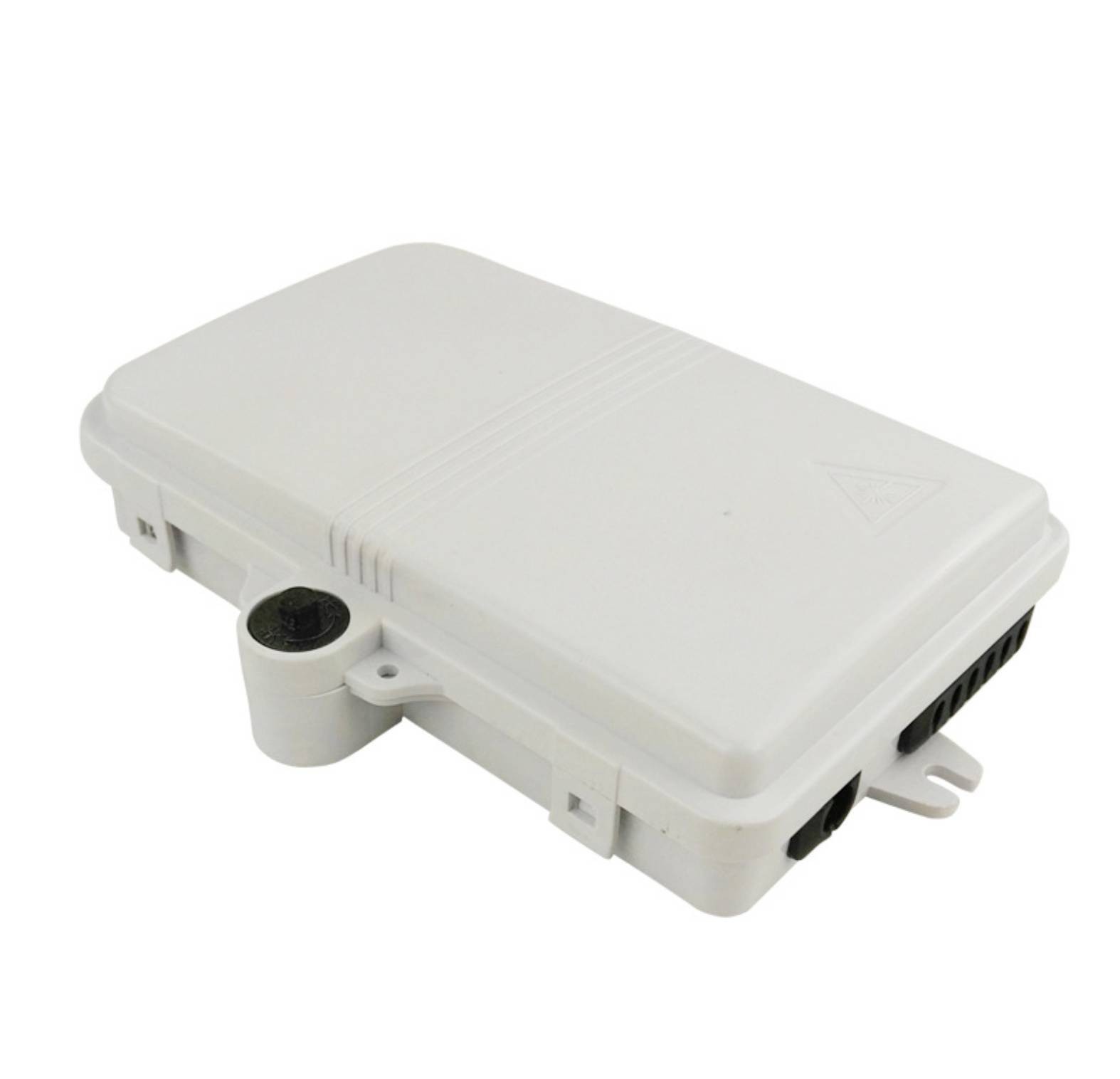

QYY- 6 Cores Optic Fiber Distribution Box
Feature：
. ABS material used ensures the body strong and light.
. Water-proof design for outdoor uses.
. Easy installations: Ready for wall mount - installation kits provided.
. Adapter slots used - No screws and tools needed for installing adapters.
. Ready for splitters: designed space for adding splitters.

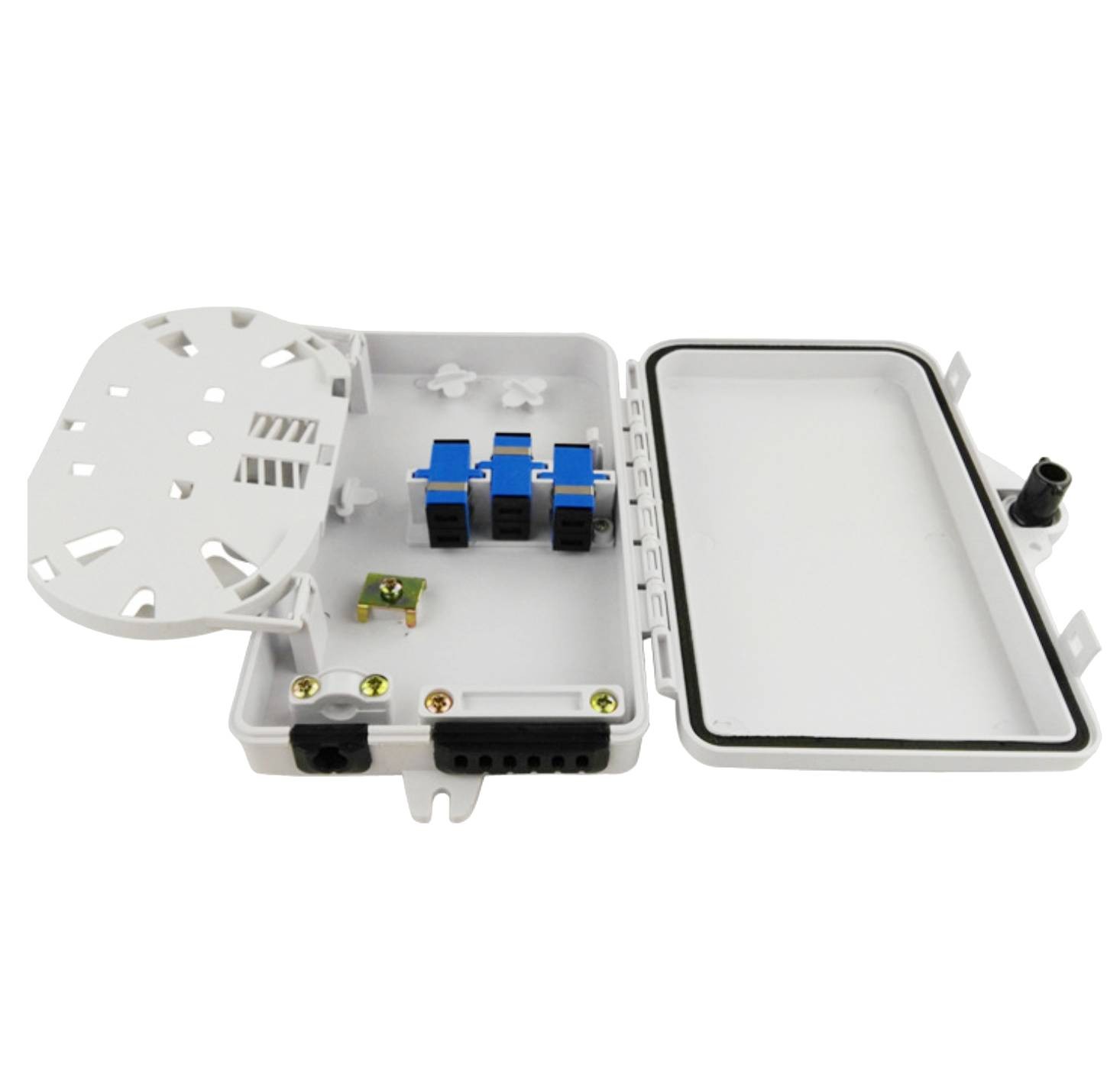

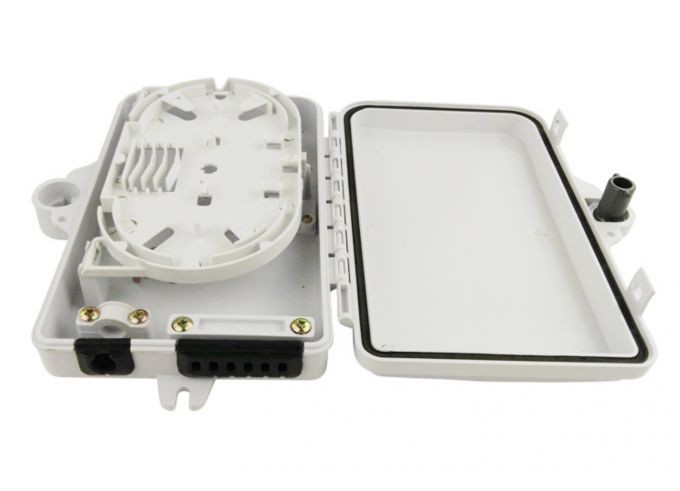

. Space saving! Double-layer design for easier installation and maintenances.
. Lower layer for splitters and over length fiber storage.
. Upper layer for splicing, cross-connecting and fiber distribution.
. Cable fixing units provided for fixing the outdoor optical cable.
. Protection Level: IP67.
. Accommodates both cable glands as well as tie-wraps.
. Lock provided for extra security.
Specifications：
| Part number | QYY-FDB-06D |
| Size | 210*140*40mm |
| Capacity | 6 cores (for SC), 12 cores (for LC) |
| Material | Plastic ABS+PC |
| Cable | indoor cable or FTTH cable |
| Cable diameter | Max. 10mm |
| Adapter | SC, LC, FC, ST, E2000, etc |
| Model | Port | Capacity | Splitter | ||
| SC | LC | SC | LC | ||
| QYY-FDB-02D | 2 cable port | 2 cores | 4 cores | 1x2 | 1x4 |
| QYY-FDB-04D | 4 cable port | 4 cores | 8 cores | 1x4 | 1x8 |
| QYY-FDB-06D | 6 cable ports | 6 cores | 12 cores | 1x6 | 1x12 |
Application：
. Widely used in the end termination of residential buildings and villas, to fix and splice with pigtails;
. Can be installed on the wall;
. May adapt variety of optical connection styles;
. Optical fiber can be managed effectively.
. Available for 1*6/1*12 PLC Splitter.
