Description

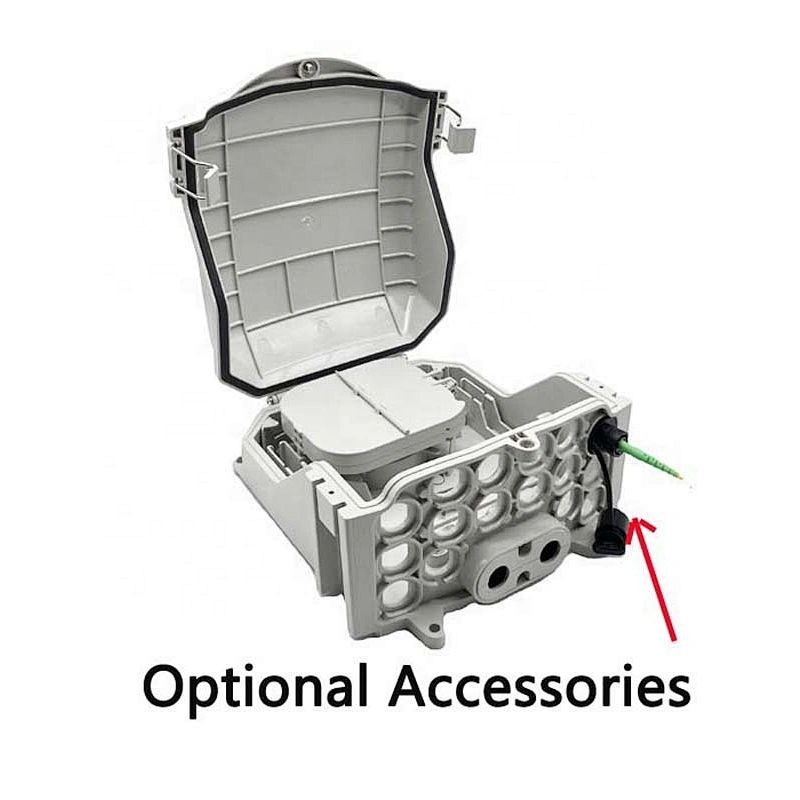

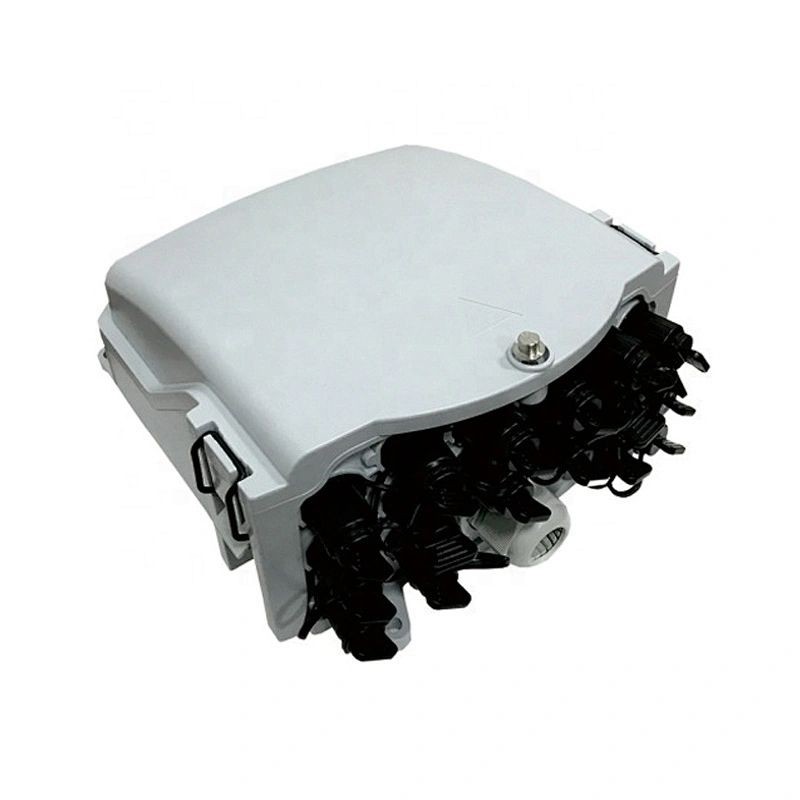

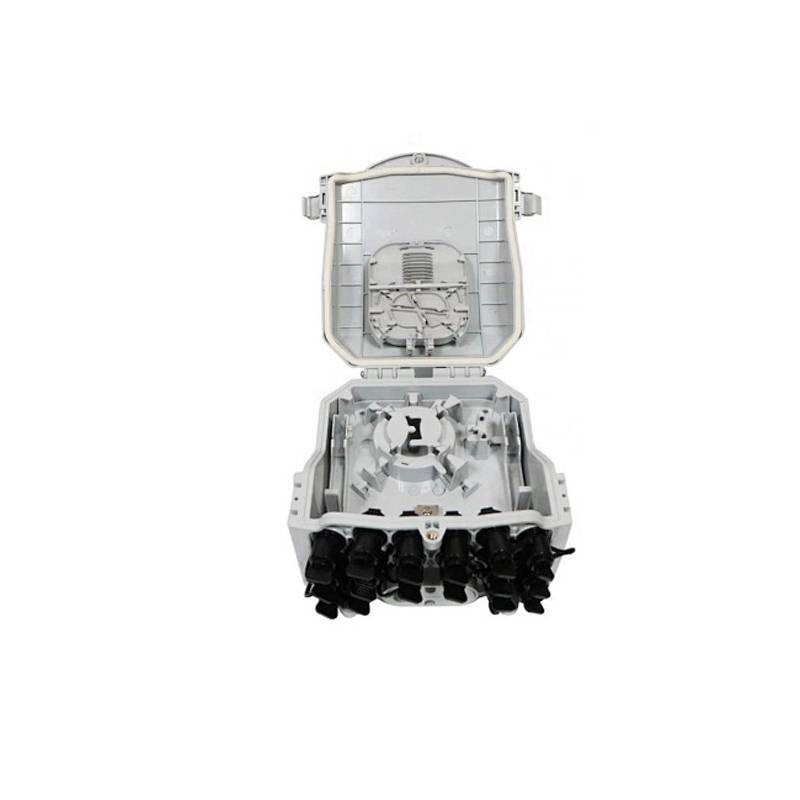

QYY- 16 Cores Optic Fiber Distribution Box CTO FTTH
Feature：
. Fully enclosed structure.
. Material: PC+ABS, moisture-proof, waterproof, dust-proof, anti-aging, protection level up to IP65.

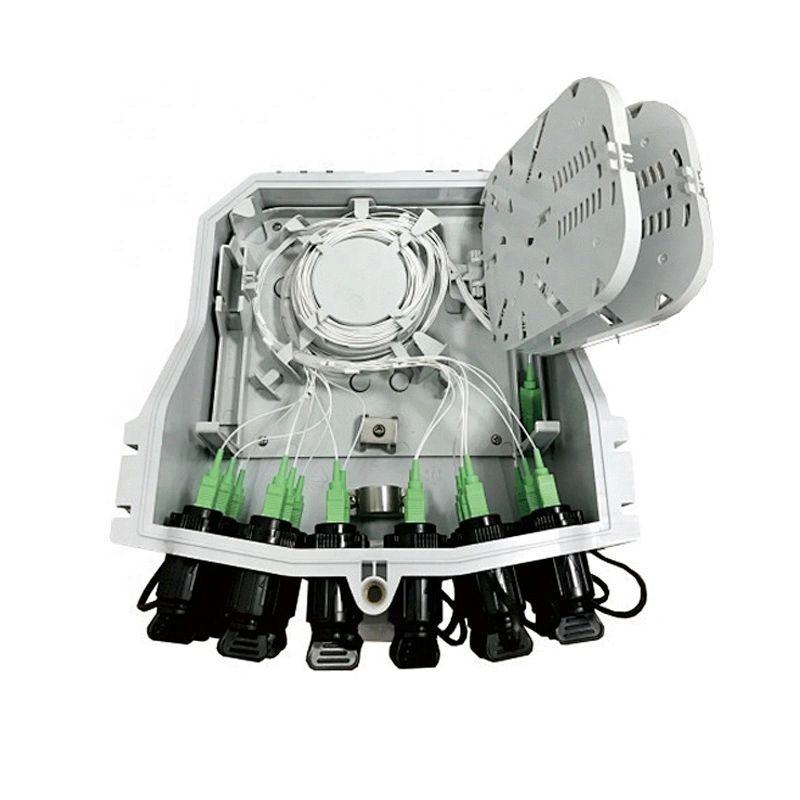

. Clamping, fiber fusion, fixing, storage and distribution of feeder and downline optical cables in one.
. Cables, pigtails and jumpers are self-propelled and do not interfere with each other. Micro PLC splitter installation is easy to maintain.
. The distribution board can be flipped, and the feeder can be placed through the expression port for easy maintenance and installation.
. The box can be wall-mounted or pole-mounted, suitable for indoor and outdoor use.
Specifications：
| Material | PC+ABS |
| Dimensions (Figure 1) A*B*C(mm) | 208*241*117mm |
| Maximum capacity | 16 port SC |
| Input cable diameter(mm) | Max 18 mm |
| Color | Gray |
| Operating temperature | -40℃~+85℃ |
| Relative humidity | ≤85%(+30℃) |
| Air pressure | 70KPa~106Kpa |
| Installation dimensions(Figure 2) (mm) | D*E*F 179*212*126 |
Application：
. Wall-mounted installation
. Pole-mounted installation
