Description

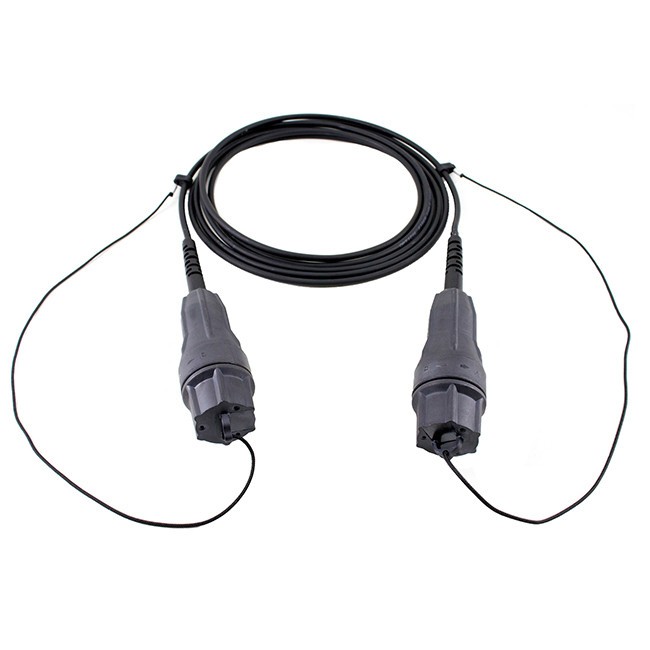

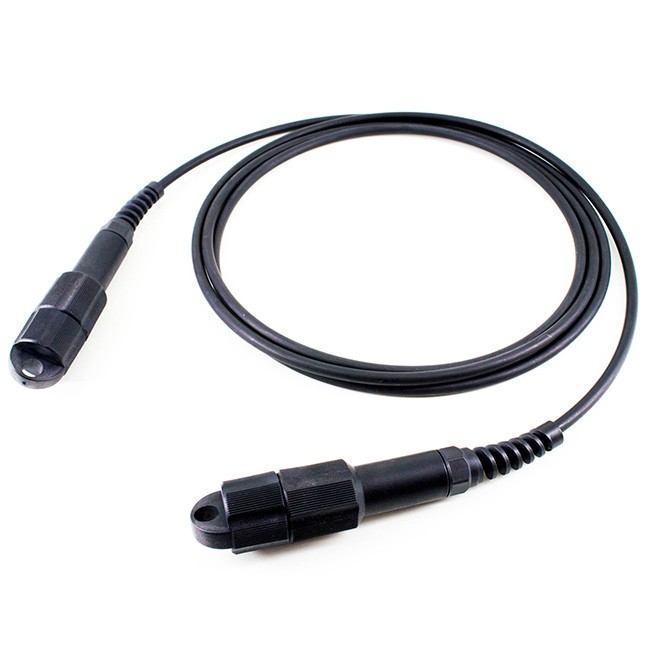

QYY- 7.0mm 2 Core Single Mode GYFJH PDLC DLC Waterproof Fiber Optic Jumper
Feature：

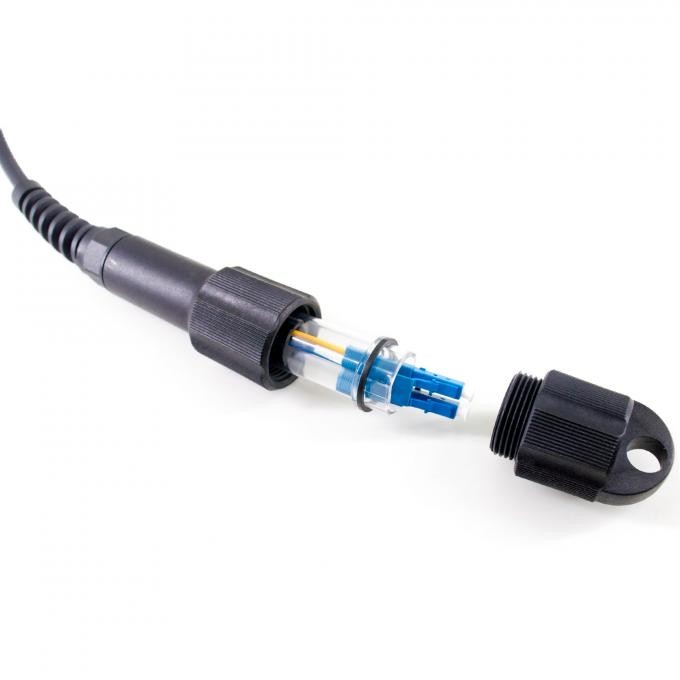

. Standard DLC connector, well connected with standard LC adaptor
. Available Single mode and Multimode
. IP67 water and dust protection
. Compact design
. Broad temperature range and wide range of indoor and outdoor cables
. Easy Operation, reliable and cost-effective installation
Cable Parameters：
SM
G657A1/G657A2
MM
OM1/OM2/OM3/OM4
Count
DX
OD
7.0mm
Jacket
LSZH
Color
Black
IL
SM/UPC≤0.3db MM/PC≤0.3db
RL
SM/UPC≥55 db MM/PC≥35 db
Length
Customizable
Branch Length
Customizable

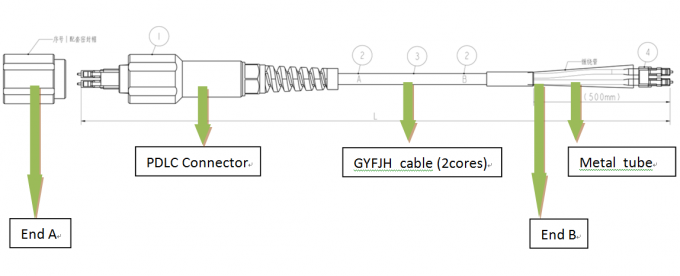

Connector

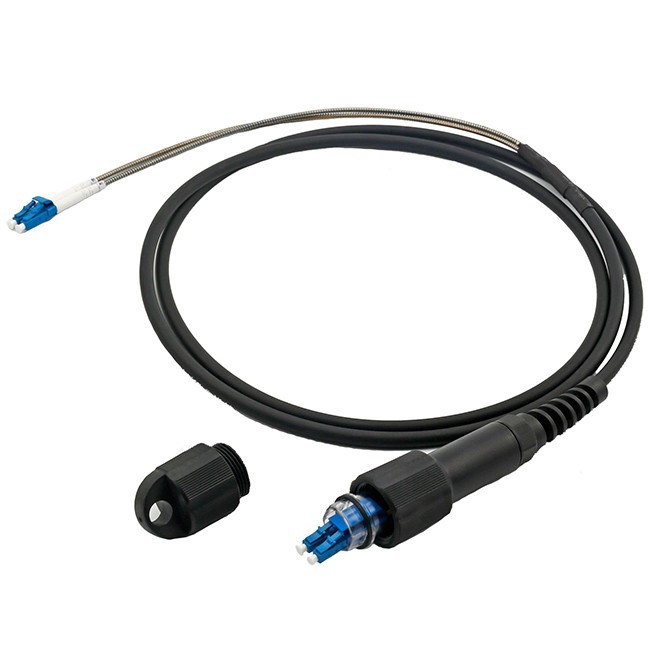

PDLC-LC or PDLC-PDLC
Cable Parameters：
| Item | Unit | Specification |
| Attenuation | dB/km |
1310nm≤0.4 1550nm≤0.3 |
| Dispersion | Ps/nm.km |
1285~1330nm≤3.5 1550nm≤18.0 |
| Zero dispersion wavelength | Nm | 1300~1324 |
| Zero dispersion slope | Ps/nm.km | ≤0.095 |
| Fiber cutoff wavelength | Nm | ≤1260 |
| Mode field diameter | Um | 9.2±0.5 |
| Mode field concentricity | Um | <=0.8 |
| Cladding diameter | um | 125±1.0 |
| Cladding non-circularity | % | ≤1.0 |
| Coating/cladding concentricity error | Um | ≤12.5 |
| Coating diameter | um | 245±10 |
|
bending, dependence induced attenuation |
1550nm, 1turns,32mm diameter 100rums,60mm diameter |
≤0.5 db |
| Proof test | kpsi | ≥100 |
one single mode fiber

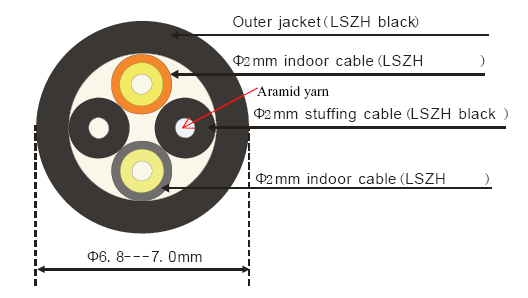

Core Cladding Coating Buffer：
ITEM
PARAMETER
Connector type
LC/UPC . LC/UPC
Insertion Loss
<=0.3db
Return Loss
>=50db
Fiber mode
Single mode 9/125
Operating wavelength
1310nm, 1550nm
Test wavelength
1310nm, 1550nm
Repeatability
<=0.1
Interchangeability
<=0.2dB
Durability
<=0.2dB
Fiber Length
1m, 2m….. any length optional.
Length and tolerance
10cm
Operating Temperature
-40C ~ +85C
Storage Temperature
-40C ~ +85C
Application：
. Widely used in FTTA & FTTH
. Used for 3G 4G base station
. BBU, RRU, RRH, LTE
