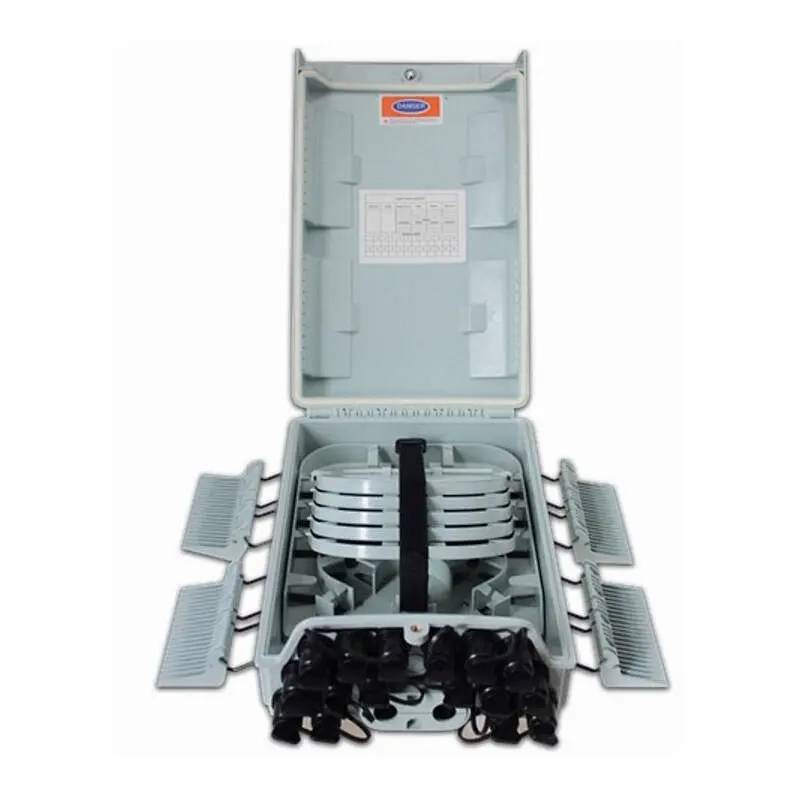

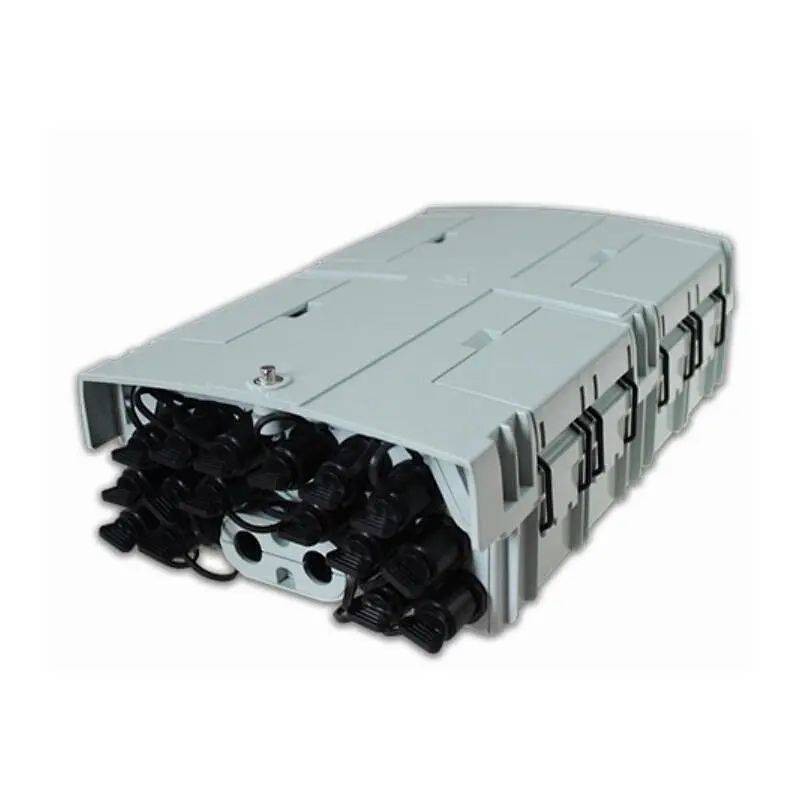

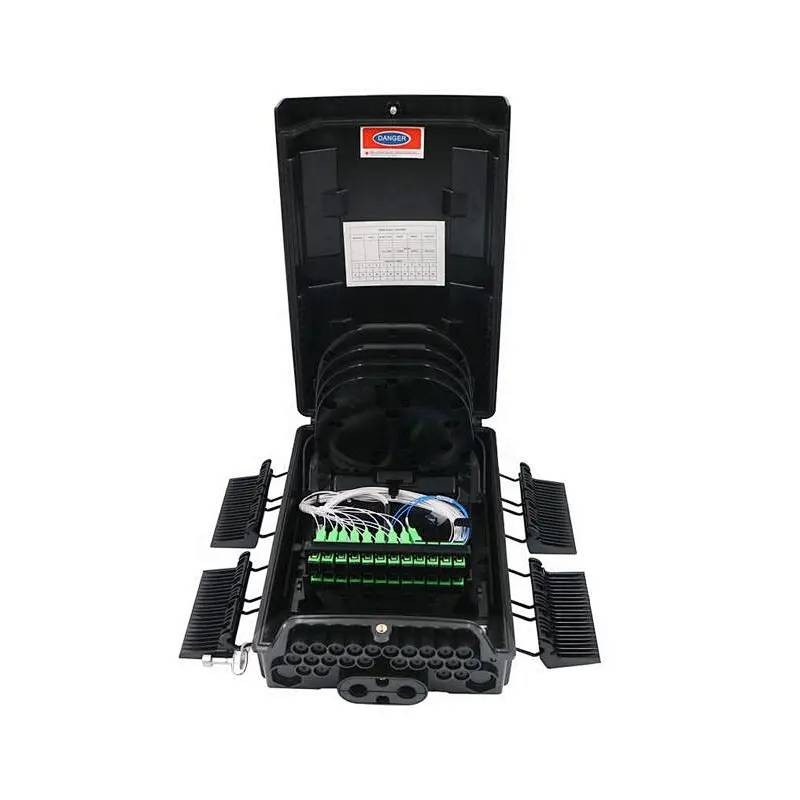

QYY- 16 Cores Optic Fiber Distribution Box waterproof FTTH

QYY- 16 Cores Optic Fiber Distribution Box waterproof FTTH

Material：PC+ABS

Colour：Gray/Black

Size (mm) ：340x220x95

Number of adapters：16pcs SC/UPC

Description

QYY- 16 Cores Optic Fiber Distribution Box waterproof FTTH

Feature：

. Waterproof design, IP-65 protection grade.
. Integrated flip-top junction box and adapter bracket.
. Maximum 120F splicing capacity, stainless steel rust-proof bolts and nuts.
. Easy to maintain and expand.
. Fiber bending radius is controlled above 40mm.
. 180 degree access, with buckle lock structure.
. Can install 2 1*8 PLC splitters
. 16 pre-installed reinforced SC waterproof adapters.
. 1 mid-span cable entry (10-16.5mm) for uncut cables.

Specifications：

Material	Dimensions (mm)	Maximum Capacity		Number of Adapters	Color
PC+ABS	340x220x95	Splicing 120 Fibers/5 x24f/Tray	2pcs 1x8PLC splitter	Splitter 16pcs SC/UPC	Gray Black

Application：

. Wall-mounted installation
. Pole-mounted installation
. High-altitude hanging installation
. Applicable to Huawei pre-connector breakout cables with reinforced connectors.
