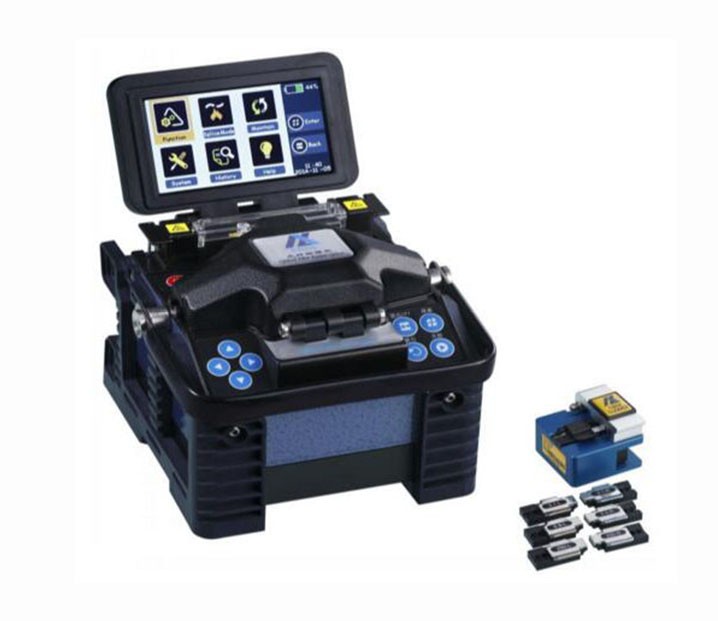

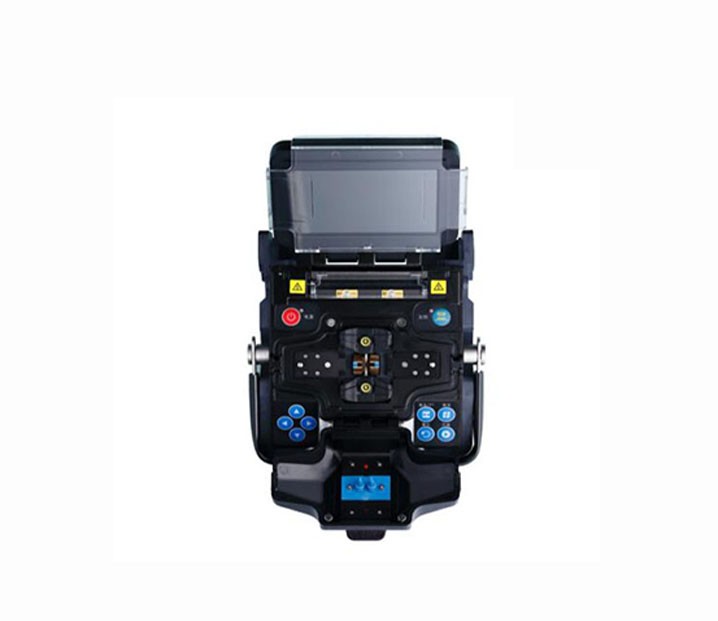

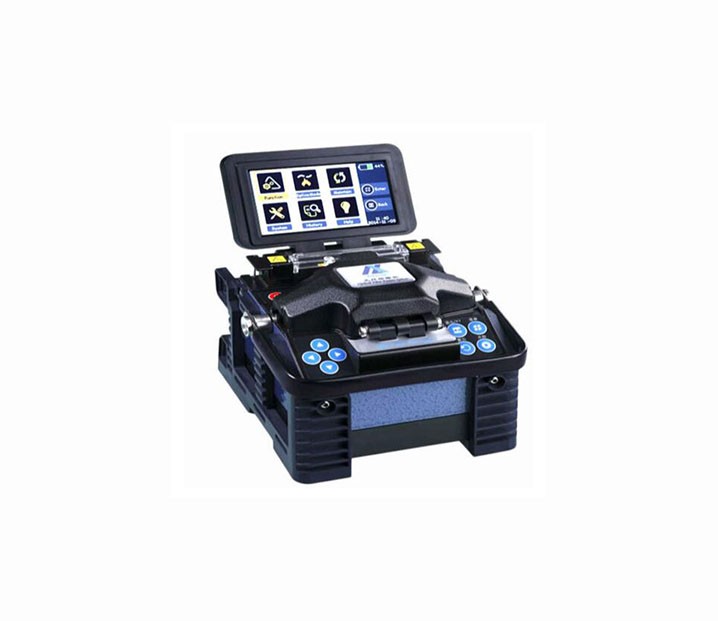

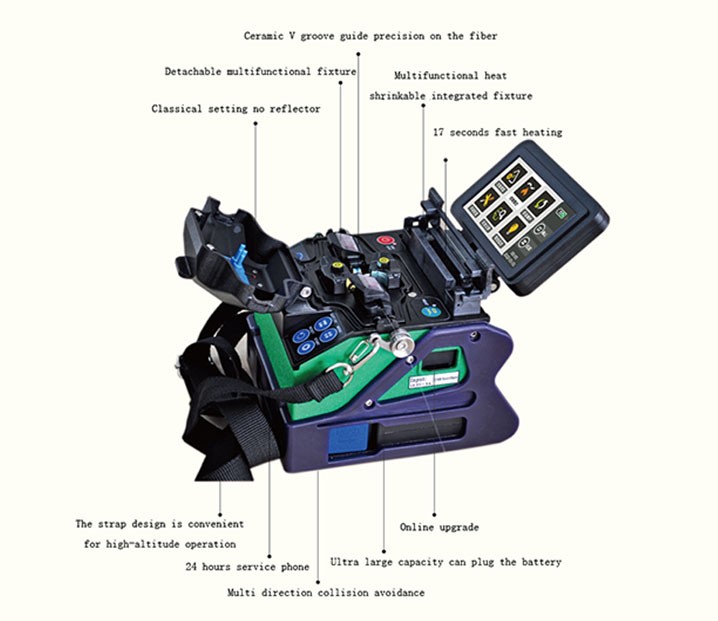

QYY-Signal Fire AI-8 Six Motor Fiber Optic Fusion Splicer Fusion Splicer
Features:
1.Based on the PAS (Lateral Projection System) principle, using advanced image detection algorithms;
2. Dual-core alignment structure, higher fusion success rate and lower loss;
3.Adopt 4.3 inches 16:9 TFT color LCD screen;
4.Typical fusion time: 7 seconds;
5.Typical heating time: 17 seconds, automatic intelligent heating when the lid is closed;
6.The reliability design strengthens the functions of shockproof and dustproof;
7.Low power consumption design, can work for a long time, and multiple functions can run at the same time;
8.Multifunctional, small and portable, greatly improving work efficiency;
9.It can detect environmental factors such as air pressure, temperature and humidity and automatically calibrate the arc.
10.Pluggable battery, convenient and fast charging;
11.The sling can be used for working at heights.
Specification:
Table 1-1 Main technical indexes
Applicable Optical Fiber Types
SM(Single mode), MM(Multi-mode), DS(Dispersion shift), NZDS(Non zero dispersion shift)
Applicable Optical Fiber Core Number
Single core
Applicable Optical Fiber Diameter
Cladding diameter: 80-150μm, Coating diameter: 100～1000μm
Fusion splice Model
Prestore: 40 groups, User define: 80 groups
A verage using Splice Loss
0.02dB(SM)，0.01dB(MM)，0.04dB(DS)，0.04dB(NZDS)，0.04db(BIF/UBIF)
Echo Loss
Better than 60dB
Fusion splice Duration Time
9sec(typical parameter) /7 the sec (fast mode)
Loss Estimation of Fusion Splice
Exist
Tension Test
2N
Monitor
4.3 inches colorized LCD, Support in both Chinese and English, Spanish, Russian, French, Portuguese and other display
Optical Fiber Magnification Times
X/Y:175times, X or Y:340 times
Power Supply
6800mAh Lithium battery, 13.5V/5A power adapter
Battery
Typically work 220 times(Fusion splicing / Heating /Hot stripping), Single battery charge 2Hour，can be recycled 500 times
Splice Results Storage
10000 groups of the latest records
Data Interface
USB2.0
Operating Environment
Elevation:0~5000m, Relative humidity:0~95%, Temperature:-20°C~55°C，Maximum wind speed: 15m/s
Storage Environment
Relative humidity:0~95%, Temperature:-40°C~80°C (Except Battery), Temperature:-10°C~ 40°C (Battery)
Weight of the Equipment
1.93kg(Include battery)
High altitude operation
Cornering, machines can be directly hung on the operators neck normal operation
Table 1-2 Tube Heater
Applicable Optical Fiber Cable Diameter
250μm, 900μm, 2~3mm
Applicable Sleeve Length
60mm, 45mm, 40mm(FP-03)
Heating time
Cover and automatic heating, v-shaped 17s rapid thermal shrinkage (customizable)
