Description

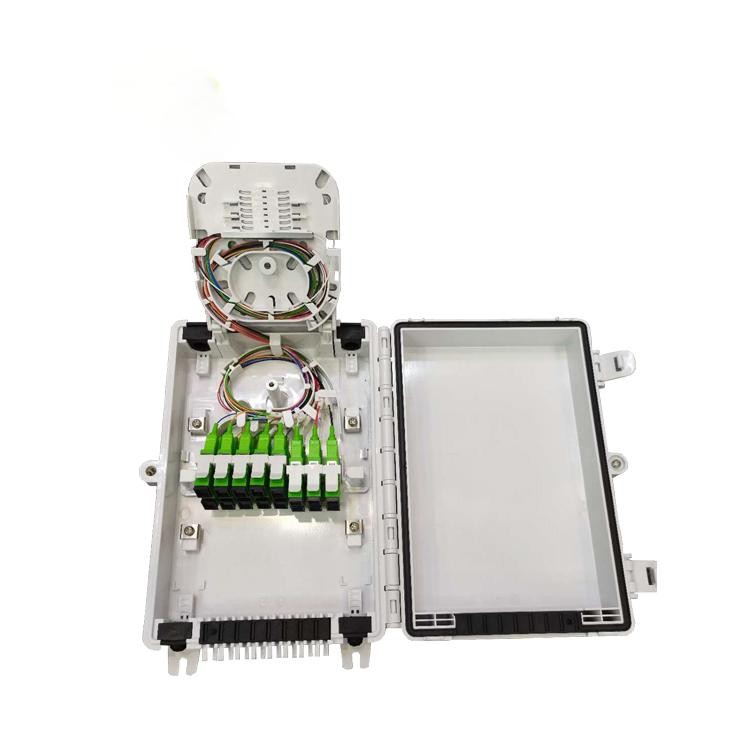

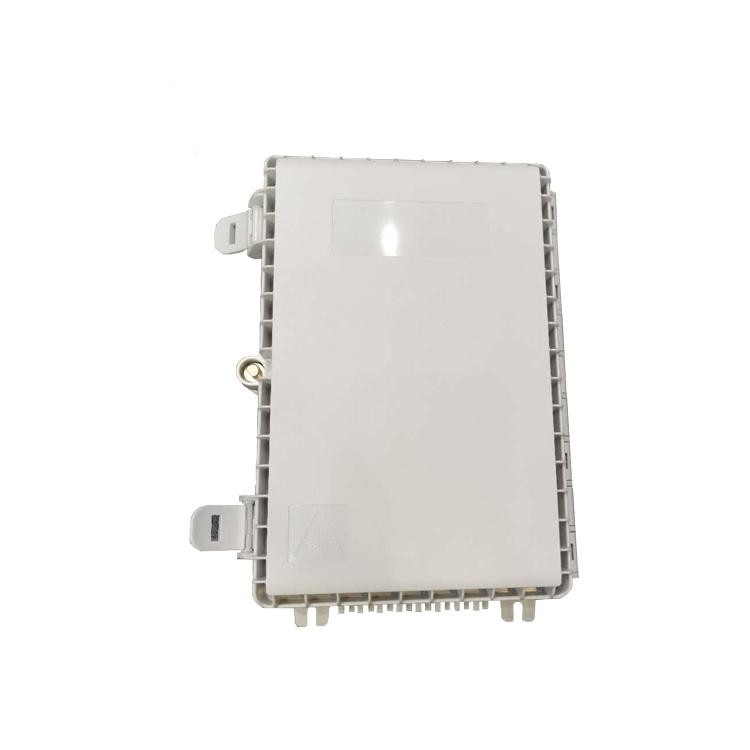

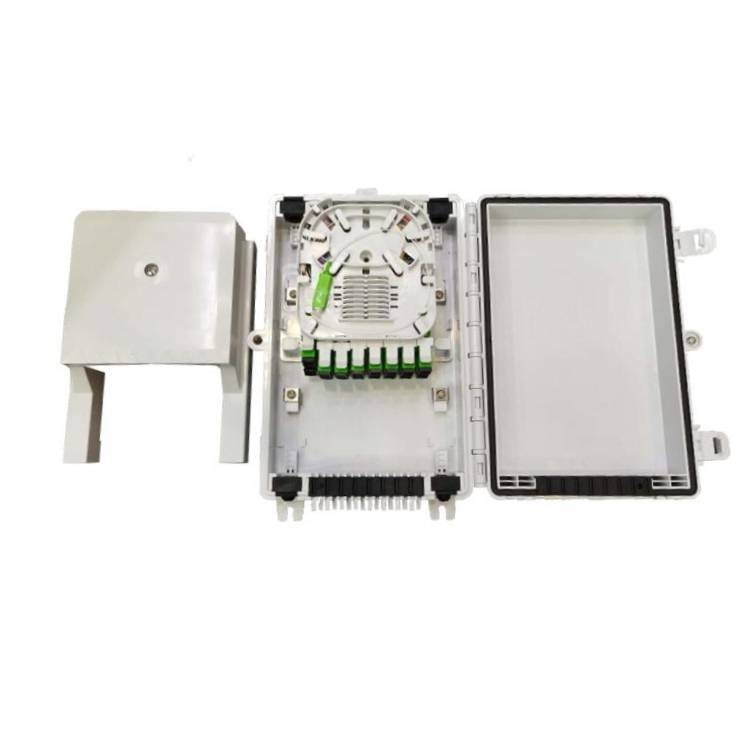

QYY- 16 Cores Optic Fiber Distribution Box
Feature：
. Made of high quality impact resistant plastic with standard user interface;
. Suitable for 2Pcs 1x8 or 1Pcs 1x16 Micro(Tube Type) PLC Splitter; Anti ultraviolet,
. Anti impact and Waterproof; Both for wall mounted and pole mounted;
. The adapter(earless) bracket is a two in one independent part, which can be installed separately and disassembled,
and can be rotated at a certain angle, which is very convenient for operation and can adjust the bending radius of the outgoing cable.
. All 4 open style cable entrance meets the requirement of optical cable not breaking;
. The structural design of the bottom shell, reversible middle splice tray and inner cover makes the cable in/out area, splicing area,
cable winding&storage area and cable outlet area form a closed independent partition, which is conducive to management and maintenance.
Specifications：
| Product Model | FDB-0416 | Max Splice Ratio | PLC 1:16 (1 Pcs) |
| Size(mm) | 231x152x59 | Packing Size(mm) | |
| Weight (kgs) | 0.8 | Packing Volume (m3) | |
| In/Out Fiber account | 4/16 | Packing Weight(Kg) | |
| Avaible Cable OD | ≤Φ12 | Other | |
| Max Splice Cores | 18(Simplex) | Installation | Wall Mount (Standard) |
| Adapter type | SC Simplex(16 pcs) | Pole Mount (Option) | |
Technical Data：
. Curvature radius of optical fiber: ≥40mm;
. Splice Tray additional loss: ≤0.01dB;
. Working temperature: -10℃ ~ +60℃;
. Resistance to lateral pressure: ≥2000N/10cm;
. Shock resistance: ≥20N.m;
. Waterproof: IP54.
