Description

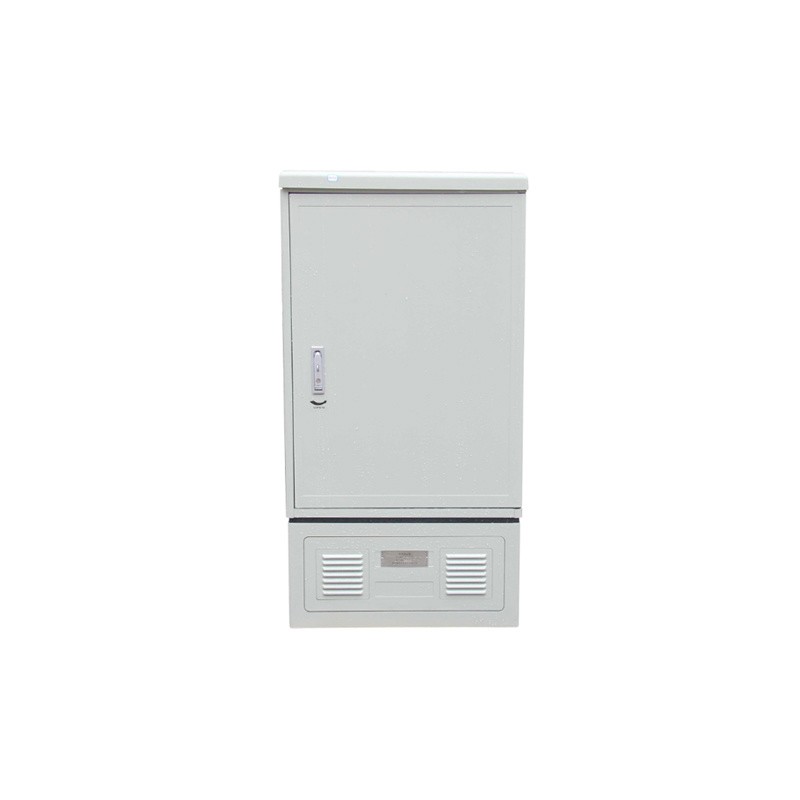

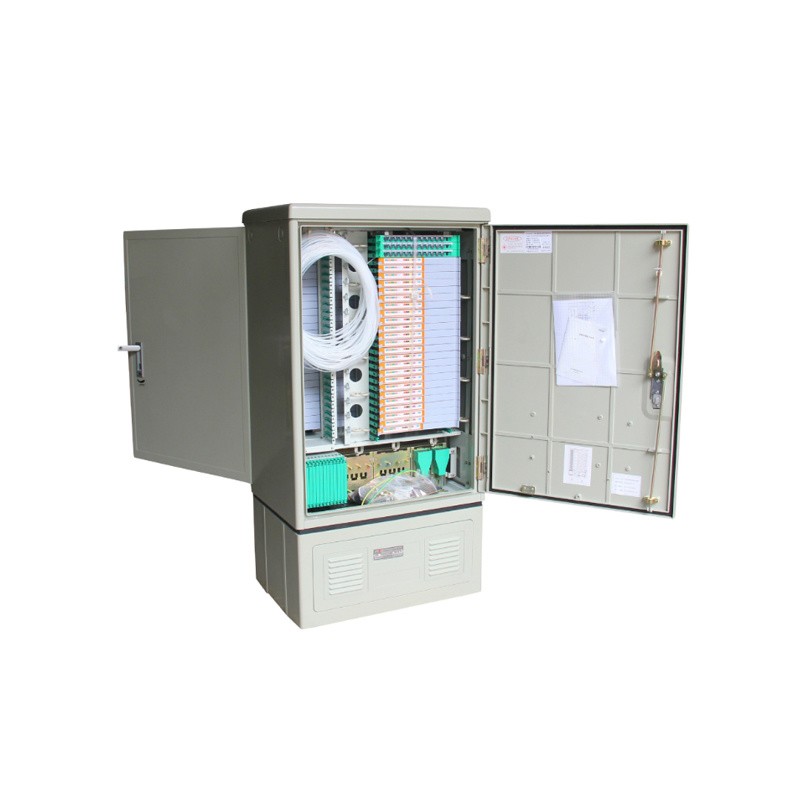

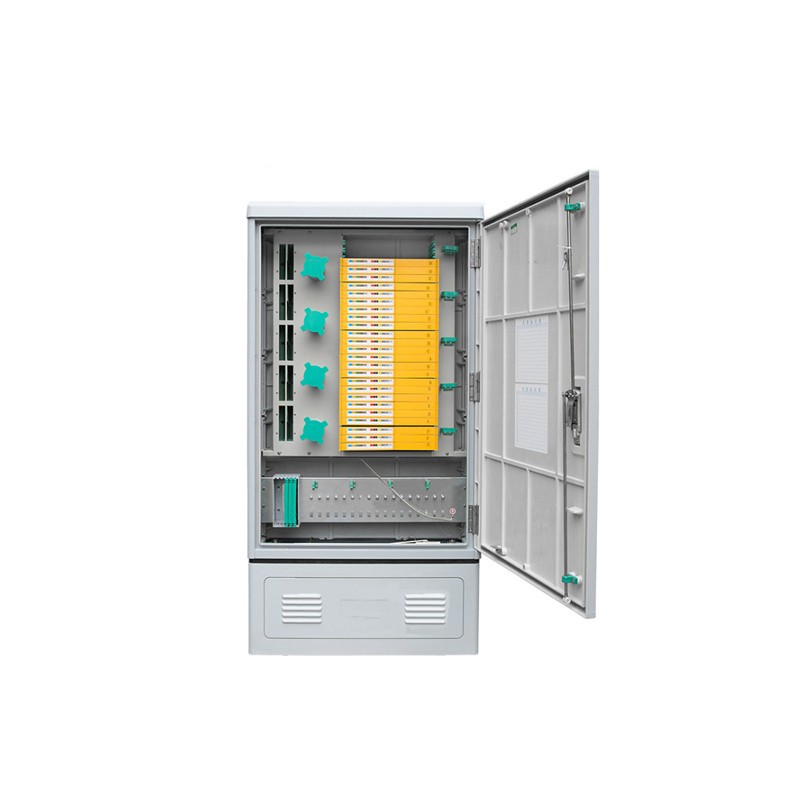

QYY- Optical Transmission Box odf 144 cores SMC Cabinet
Features:
. SMC material has excellent electrical insulation performance, high insulation resistance and high power frequency dielectric strength.
. Light weight, high tensile strength, bending strength and impact strength.
. No electromagnetic shielding. not reflect or block the propagation of microwave, suitable for wireless communication, remote measurement and monitoring.
. Unique design to have integrates optical fiber fusion, disk storage and wiring. Each fusion module can be extracted separately, meeting the requirements of off frame or on frame operation
Application:
. FTTX FTTH afiber wiring;
. Telecommunication networks;
. CATV, Data communication Networks;
. UV protection for outdoor ODF installation solution
Specification:
| Dimensions(W*H*D) | 550*310*940mm |
| Material: | SMC(Metal case optional) |
| Capacity: | max 144 cores |
| Optional Accessories | Ready for installation kits provided. Use stainless steel to make the wire fixing to antirust. with an operating instruction. |
| Warranty time： | 30 years |
| Working Temperature: | -40°C~+80°C |
| APC Return Loss | ≥60dB |
| Weight | 32KGS |
