Description

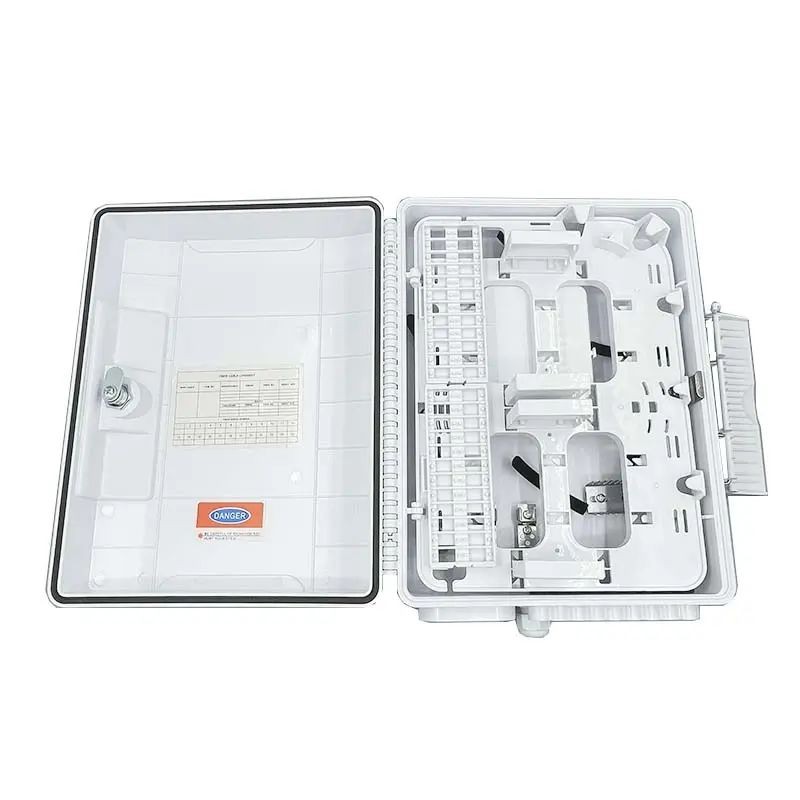

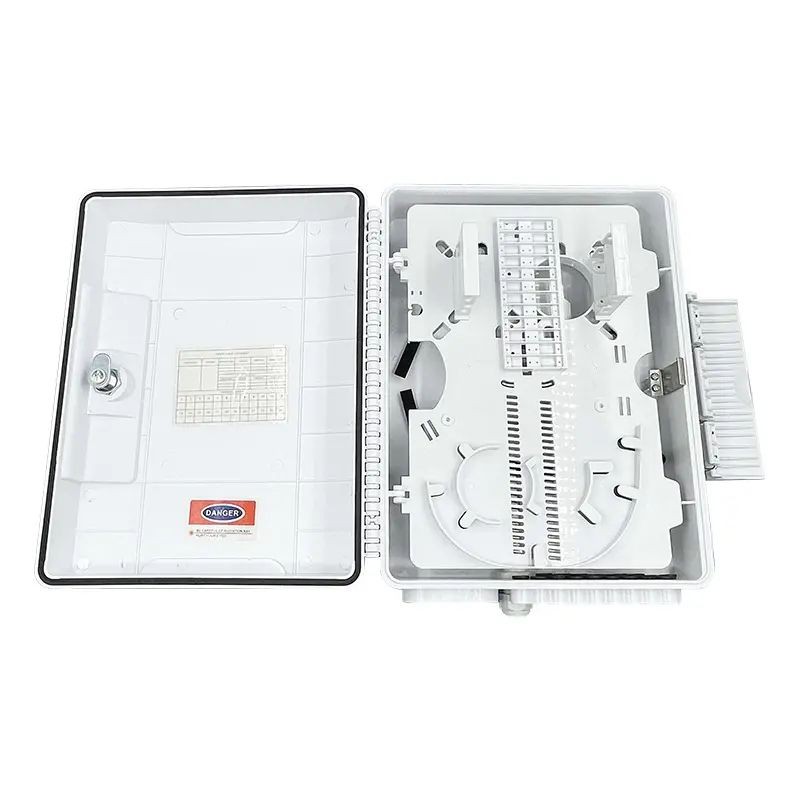

QYY- 48 Cores Optic Fiber Distribution Box
Feature：
. Total enclosed structure.
. Material: ABS, waterproof design with IP-66 protection level, dustproof, anti-aging, RoHS.
. Optical fiber cable, pigtails, and patch cords are running through their own path without disturbing each other.
. The distribution box can be flipped up, and the feeder cable can be placed in a cup-joint way, making it easy for maintenance and installation.
. The distribution Box can be installed by wall-mounted or pole-mounted methods, suitable for both indoor and outdoor use.
. Suitable for fusion splice or mechanical splice.
. 4 pcs of 1*8 Splitter or 2 pcs of 1*16 Splitter can be installed as an option.
. 48ports for cable entrance for drop cable.
Specifications：
| Item No. | Description | Weight (kg) | Size (mm) |
| OYY-48A-A-24 | For 24PCS SC Simplex Adapter | 1.5 | 270 x 350 x120 |
| OYYI-48A-A-16 | For 2 pcs of 1*8 Splitter or 1 pcs of 1*16 Splitter | 1.5 | 270 x 350 x120 |
| OYY-48A-B-48 | For 48PCS SC Simplex Adapter | 1.5 | 270 x 350 x120 |
| OYY-48A-B-32 | For 4 pcs of 1*8 Splitter or 2 pcs of 1*16 Splitter | 1.5 | 270 x 350 x120 |
| Material | ABS/ABS+PC | ||
| Colour | White, Black, Gray or customer’s request | ||
| Waterproof | IP66 | ||
Application：
. FTTX access system terminal link.
. Widely used in FTTH access network.
. Telecommunication networks.
. CATV networks.
. Data communications networks.
. Local area networks.
