Description

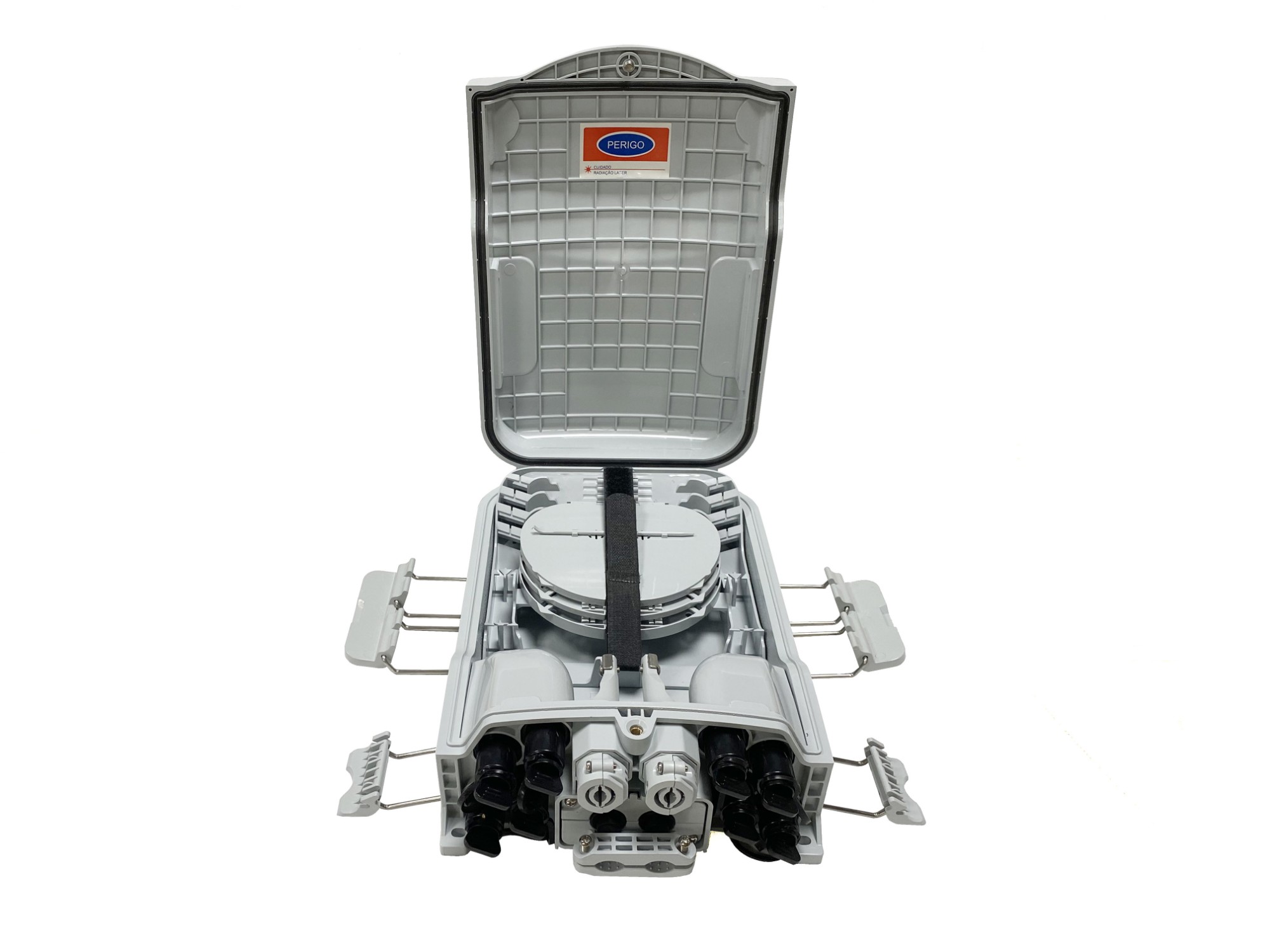

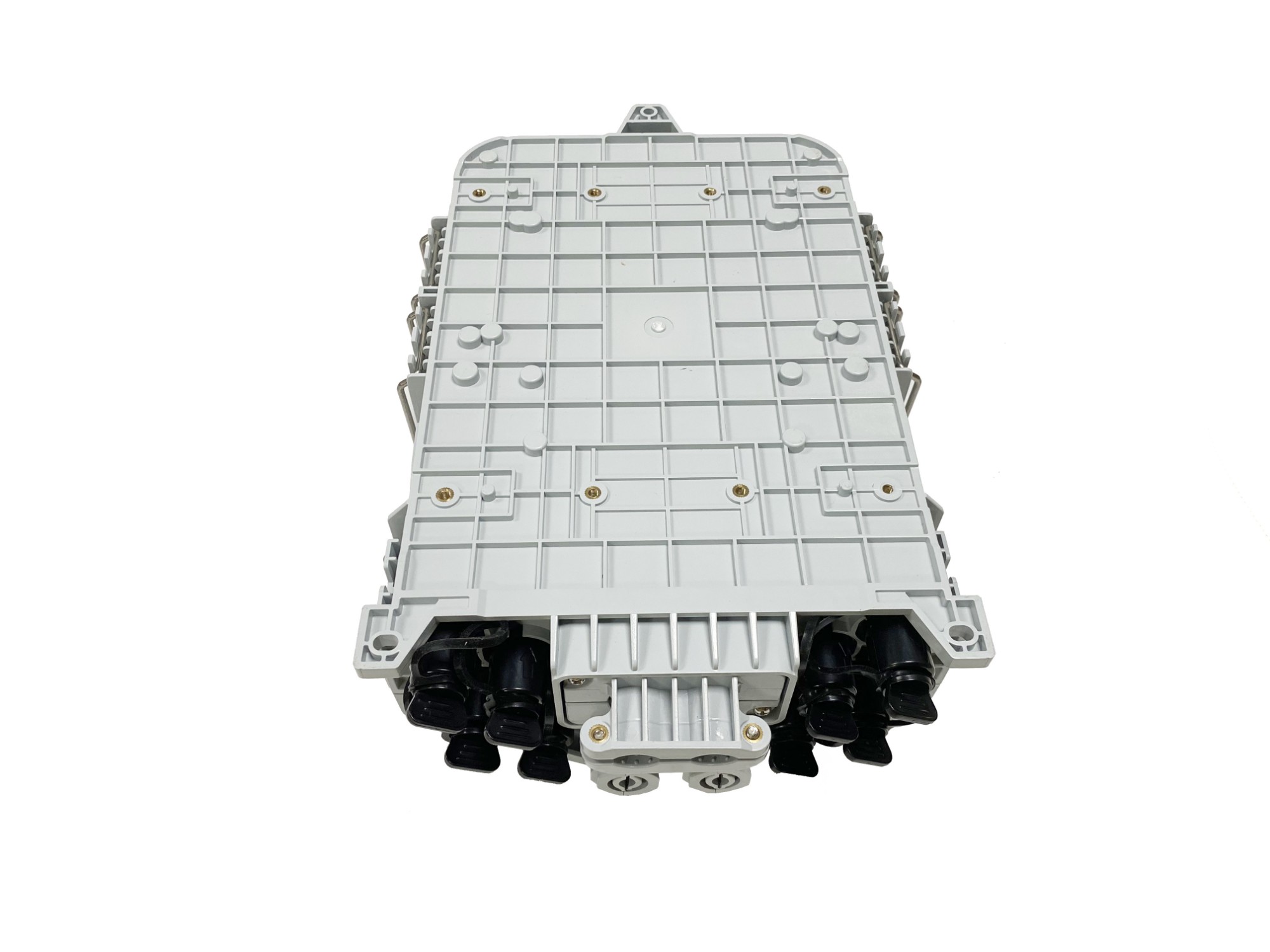

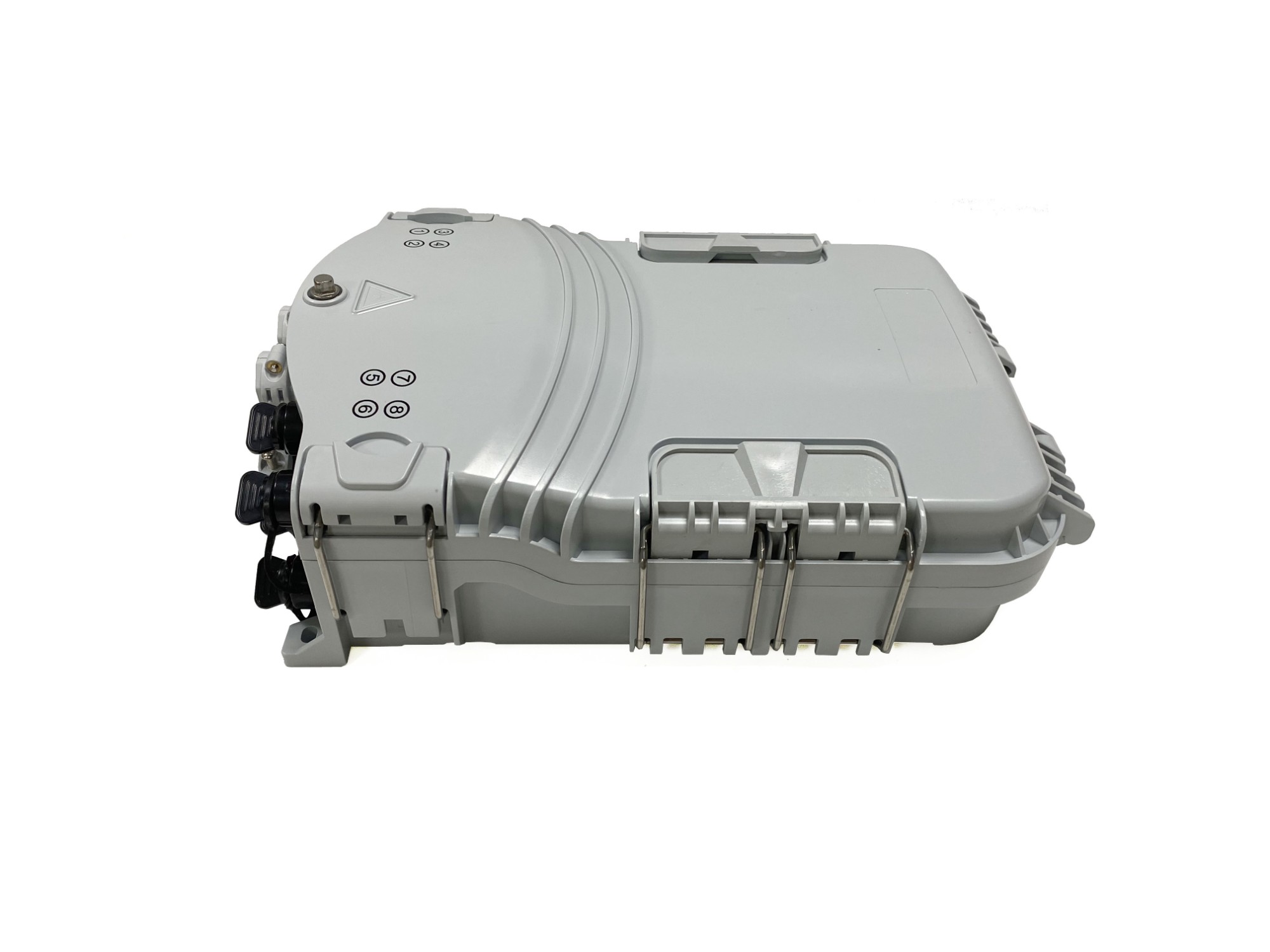

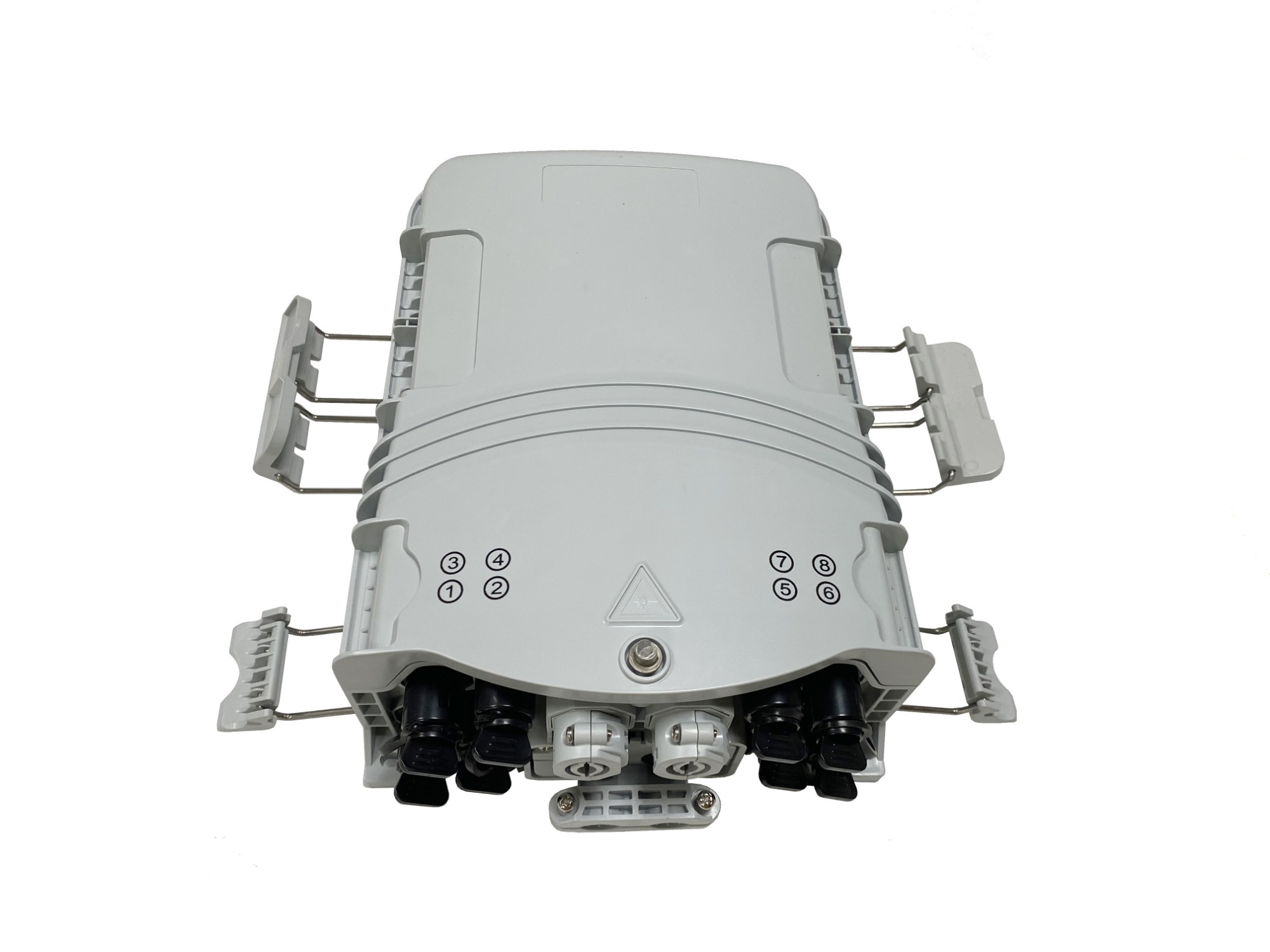

QYY- 8 Cores Outdoor Optic Fiber Distribution Box
Features：
. Total enclosed structure with key and buckles.
. High strength engineer plastic, wet-proof, water-proof, dust-proof, anti-aging
. Outdoor wall mount, pole mount or aerial mount, protection level up to IP65
. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one
. Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
. Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
Specifications：
| Model | QYY-8DR |
| Dimension (A*B*C) /mm | 319.3*200*97.5 |
| Installation size (D*E/F*G)/mm | 52*166*166 |
| Max.Capacity | 36 cores (single fiber) |
| Cable entry | 2big round: ᴓ8~14mm, branch cable:ᴓ16mm |
| Cable exit | 8pcs Mini SC adapters |
| Splitter quantity | 1x2, 1x4, 1X8 mini splitter |
| Waterproof grade | IP65 |
| Material | PC+ABS |
| Color | Grey, black |
Application：
. Wall-mounted, Pole-mounted InstallationFTTH access network
. Telecommunication network
. CATV networks
. Data communications network
. Local area networks
. Suitable for ftth pre-connectorized drop cable with SC/LC connectors
