Description

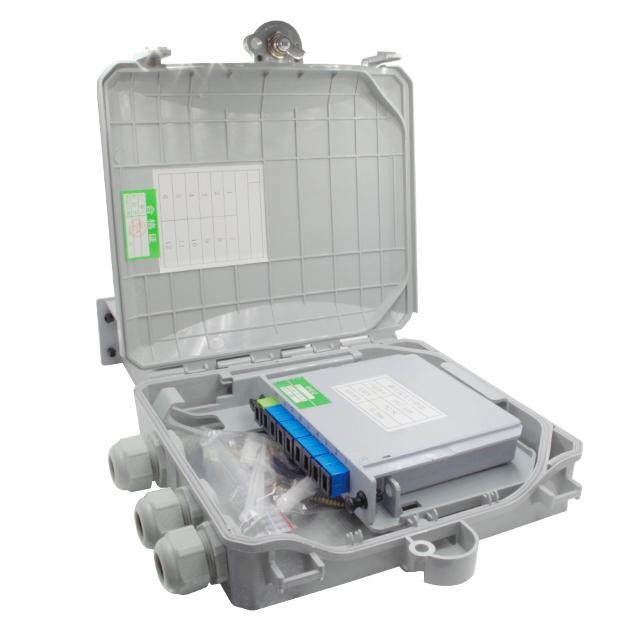

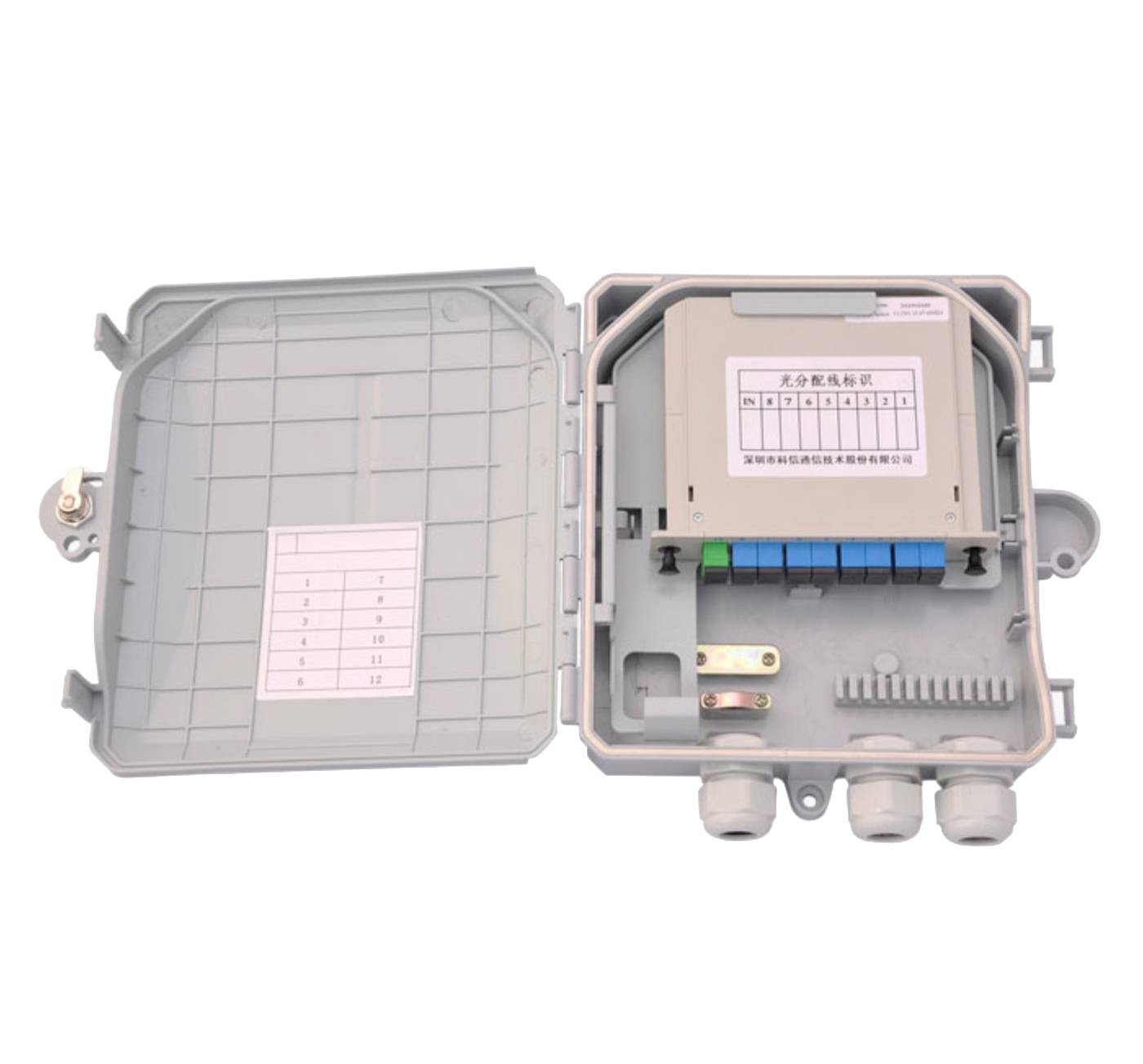

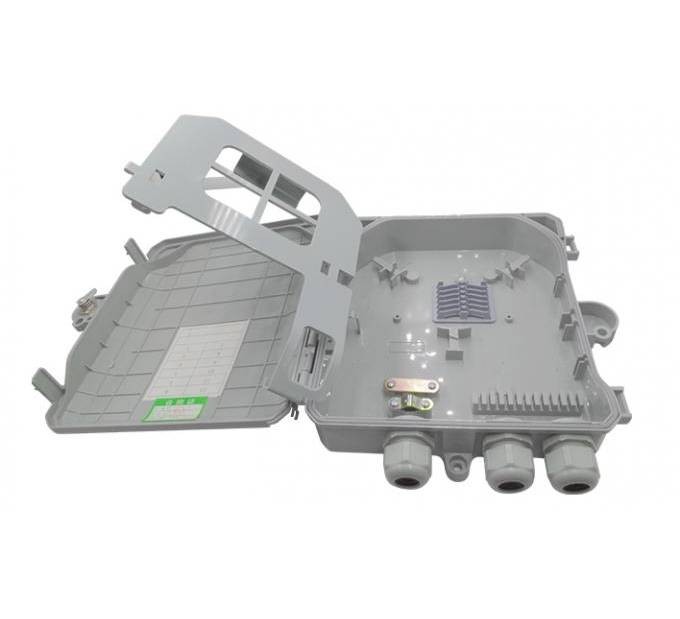

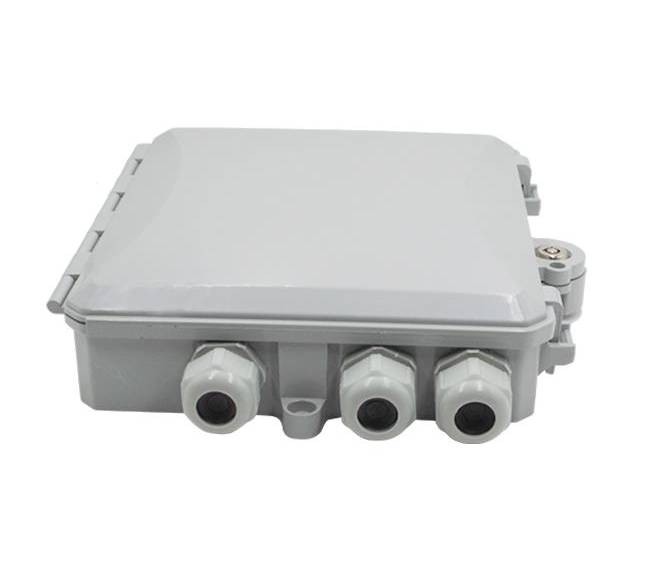

QYY- 8 Cores Water-proofing Optic Fiber Distribution Box
Features：
. ABS material used ensures the body strong and light.
. Water-proof design for outdoor uses.
. asy installations: Ready for wall mount – installation kits provided.
. Adapter slots used – No screws and tools needed for installing adapters.
. Ready for splitters: designed space for adding splitters.
. Space saving:Double-layer design for easier installation and maintenances:
. Lower layer for splitters and over length fiber storage.
. Upper layer for splicing, cross-connecting and fiber distribution.
. Cable fixing units provided for fixing the outdoor optical cable.
. Protection Level: IP55.
. Accommodates both cable glands as well as tie-wraps
. Lock provided for extra security
Specifications：
| Item | Outdoor Water Proof Fiber Optic Terminal Splitter Distribution Box |
| Part Number | QYY-FDB-8E |
| Material | PC + ABS |
| Size | 190*165*42mm |
| Weight | 0.65kg |
| Cable port | 3 cable ports |
| Cable diameter | < 24 cm |
| Accessories | heat shirk tube, fiber optic splitter, fiber optic adapter, Outer box |
Application：
. Wall-mounted, Pole-mounted InstallationFTTH access networkWidely used in FTTH access network.
. Telecommunication Networks
. CATV Networks
. Data communications Networks
. Local Area Networks
Operation conditions：
. Temperatures:-40℃ -- 60℃. Humidity:93% at 40℃
. Air Pressure: 62 kPa – 101 kPa
