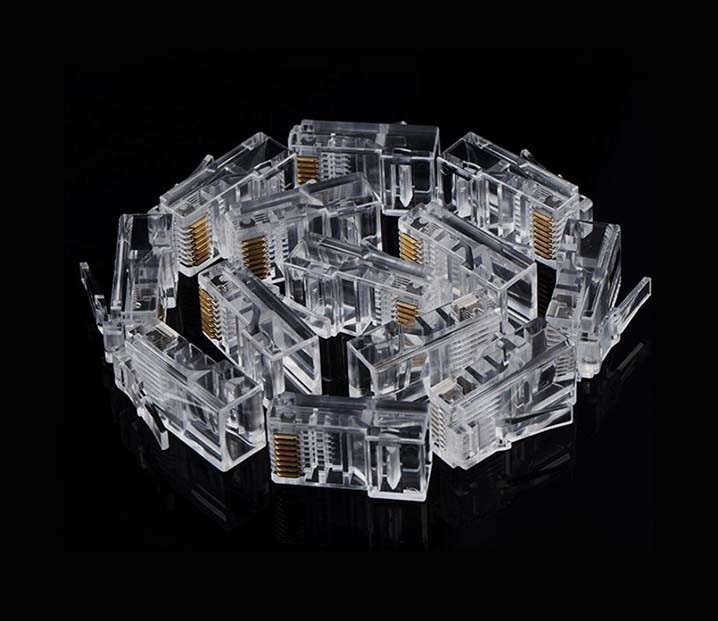

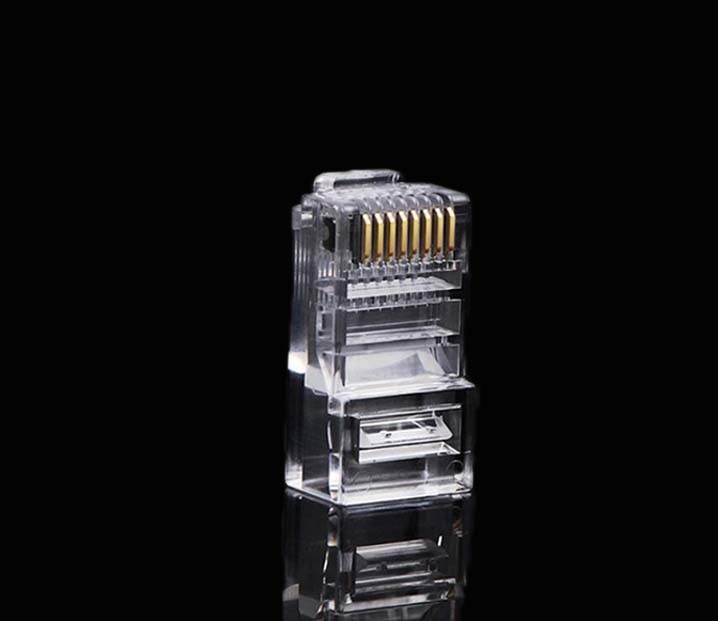

QYY-RJ45 8P8C Unshielded Plug Connector Application

QYY-RJ45 8P8C Unshielded Plug Connector Application

Contact：Phosphor Bronze

Aspects：8P8C

Category：CAT6 UTP

Plating：Gold Plating

Description

QYY-RJ45 8P8C Unshielded Plug Connector Application

Electrical:

1.UL applications: 250V AC, 2A (max.) .

2. Dielectric withstanding voltage: 500V AC.

3. Insulation Resistance: 100MΩ.

4. Termination: Resistance 20MΩ Max After Environmental Testing.

Application:

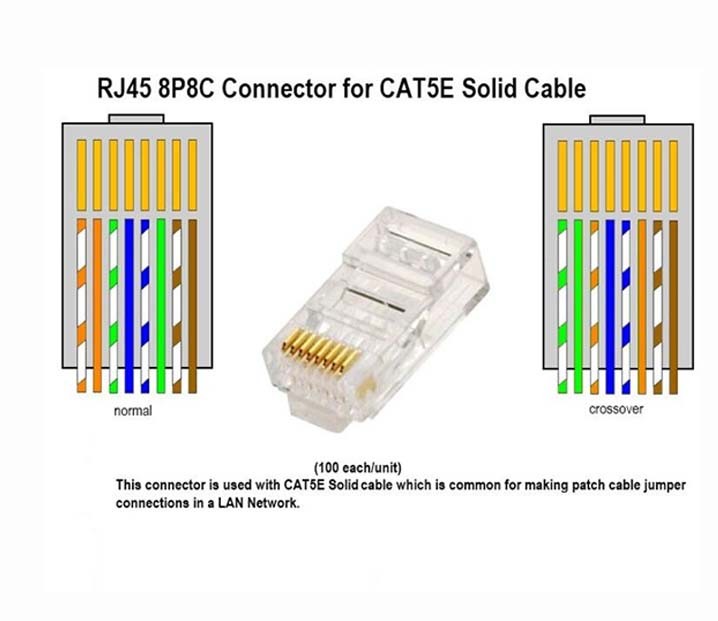

1.For telecom field wiring systems, network communications in Gigabit Ethernet, used with patch panels, panels, patch cords, cable management, Cat5e/Cat6 cables, etc.

Specification:

Mechanical	Cable-to-plug Tensile Strength : 20kg Min.
	Durability : 200 Mating Cycles.
Material & Finish	Housing: Polycarbonate, UL94V-0 Or UL94V-2.
	Color: Transparent Or Other Color Are Available.
	Contact Blade: Phosphor Bronze.
	Temperature range: -40~60°C.
	Gold Plating: 3u''~50u",are Available.
