Description

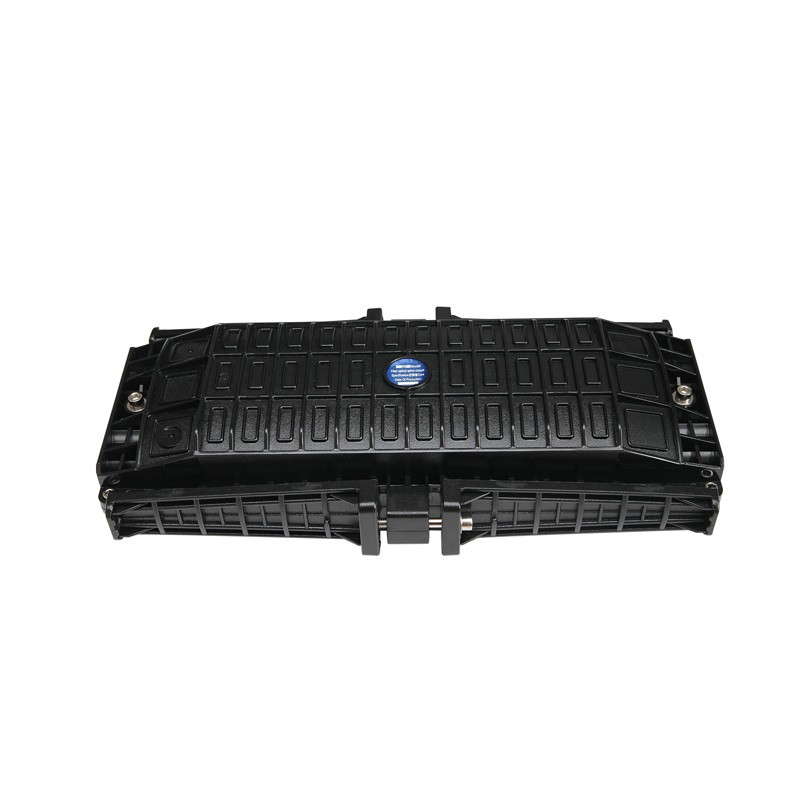

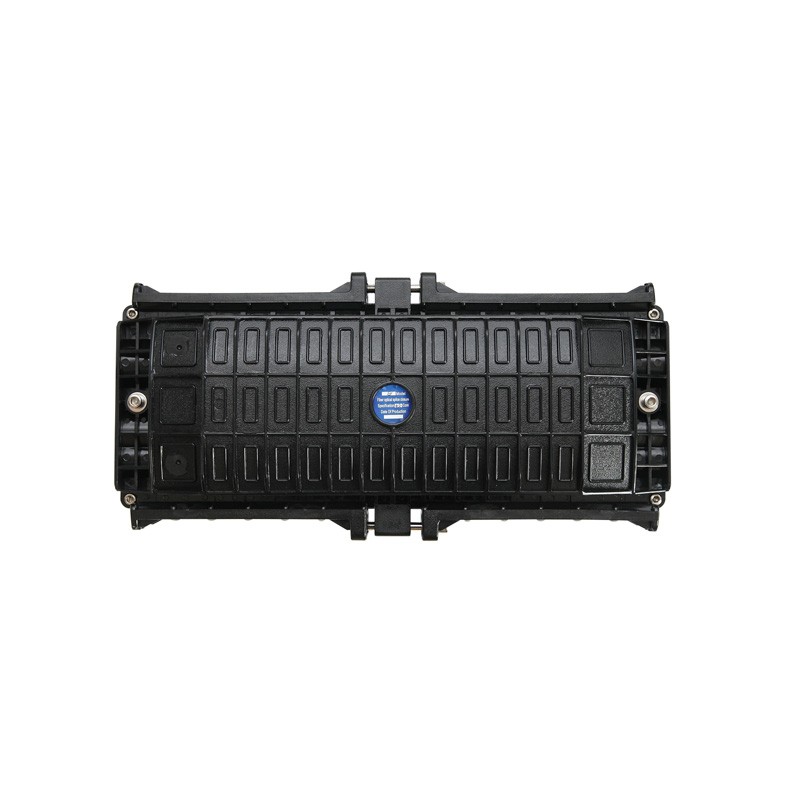

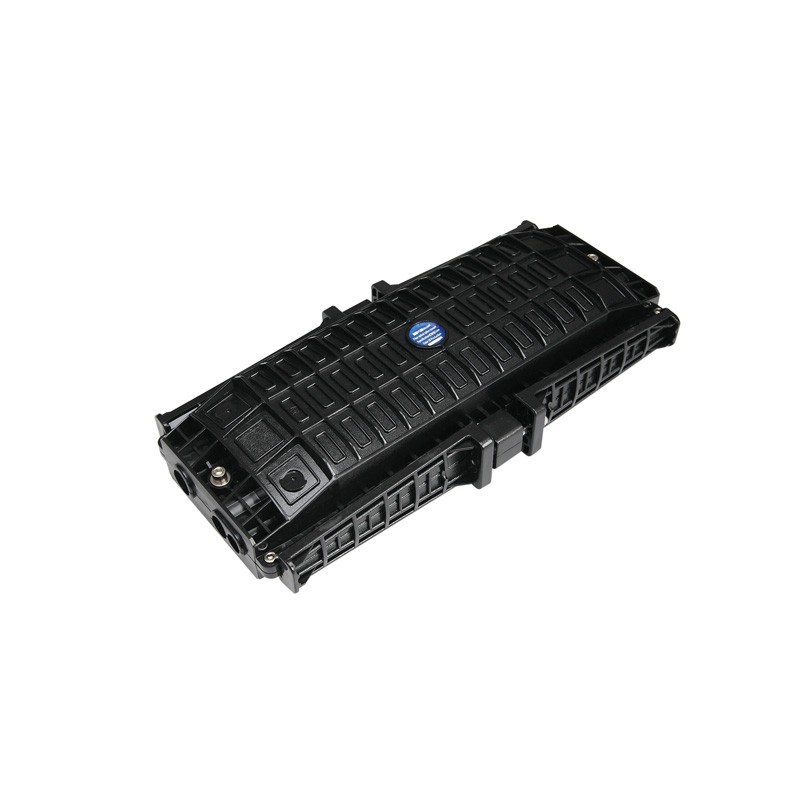

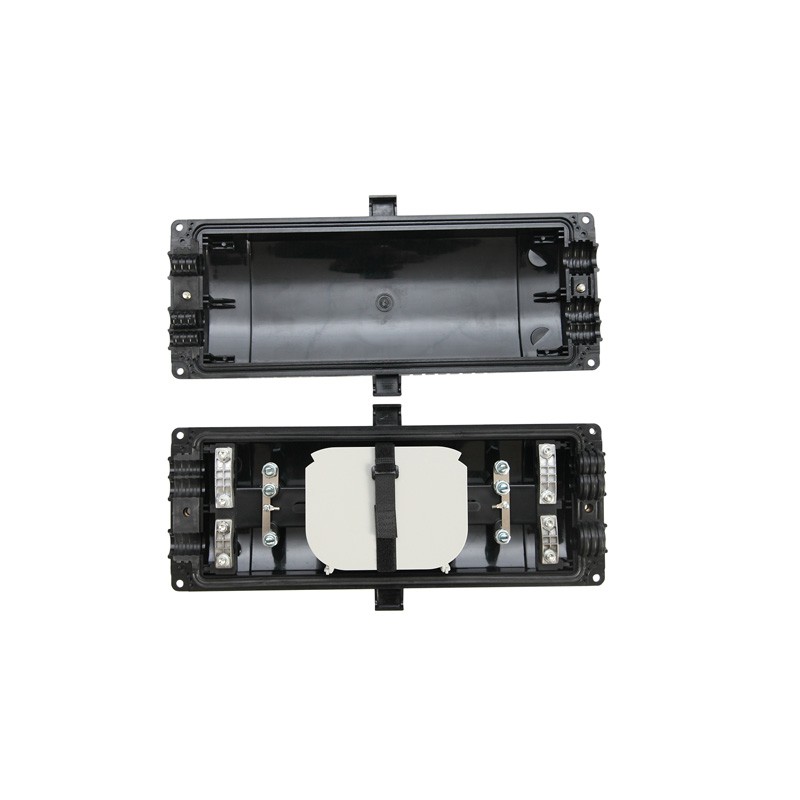

QYY- 96 Cores Fiber Optical Joint Closure Box
Specifications：
| Splice box housing dimensions (L×W×H) | 450mm×216mm×110mm |
| Weight (excluding large carton weight) | 2750克—3200克 |
| The number of cables in and out | 3 on one side (6 in total) |
| Fiber optic cable diameter can be installed | Φ8mm～Φ23 mm |
| Fiber capacity | Bundle 6-96 cores, ribbon 216 cores |
Applications：
. GJS-E Hafu fiber optic cable splice closure can be buried, overhead, pipeline, and manhole wall-mounted. . The applicable ambient temperature range is -40°C~+65°C.
