Description

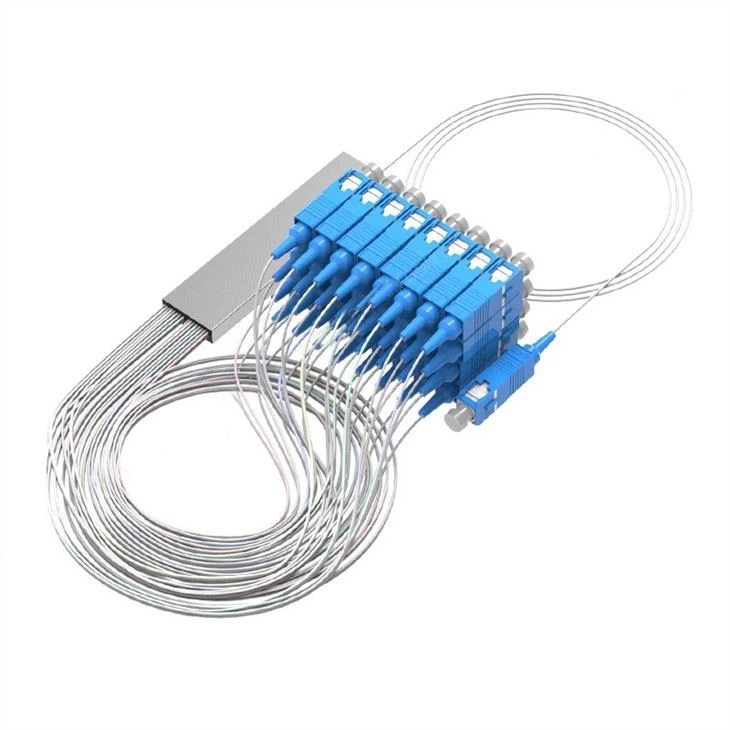

QYY- 1x32 Mini PLC Splitter
Features：
. Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.
. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity,
. and is widely used in PON networks to realize optical signal power splitting.
. Wolon provides whole series of 1xN and 2xN splitter products that are tailored for specific applications
Specifications:
Parameter
Unit
Specification (P Grade)
Operation Wavelength
nm
1260～1650
Channel Number
1X2
1x3
1X4
1x6
1X8
1x12
1X16
1x24
1X32
1X64
1x128
Insertion Loss(Max)
dB
4.3
6.2
7.2
9.8
10.5
12.5
13.6
16.５
17.2
21.0
25.5
Uniformity (Max.)
dB
0.5
0.6
0. 6
0.8
1.0
1.0
1.4
1.5
1.6
2.0
2.5
Polarization Dependent Loss
dB
0.2
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.5
0.8
Return Loss
dB
≥55
Directivity
dB
≥55
Parameter
Unit
Specification (P Grade)
Operation Wavelength
nm
1260～1650
Channel Number
2X2
2X4
2X8
2X16
2X32
2X64
2x128
Insertion Loss (Max.)
dB
4.5
7.5
11.2
14.6
17.5
21.5
25.8
Uniformity (Max.)
dB
0.8
1.0
1.2
1.5
1.8
2.5
3.0
Polarization Dependent Loss
dB
0.2
0.3
0.3
0.3
0.3
0.5
1.0
Return Loss
dB
≥55/50
Directivity
dB
≥55
Note: UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB.
Application：
. Fiber Optic Equipment and Systems
. CATV Systems
. Local Area Network, PON, and FTTH
. Fiber Sensors
