Description

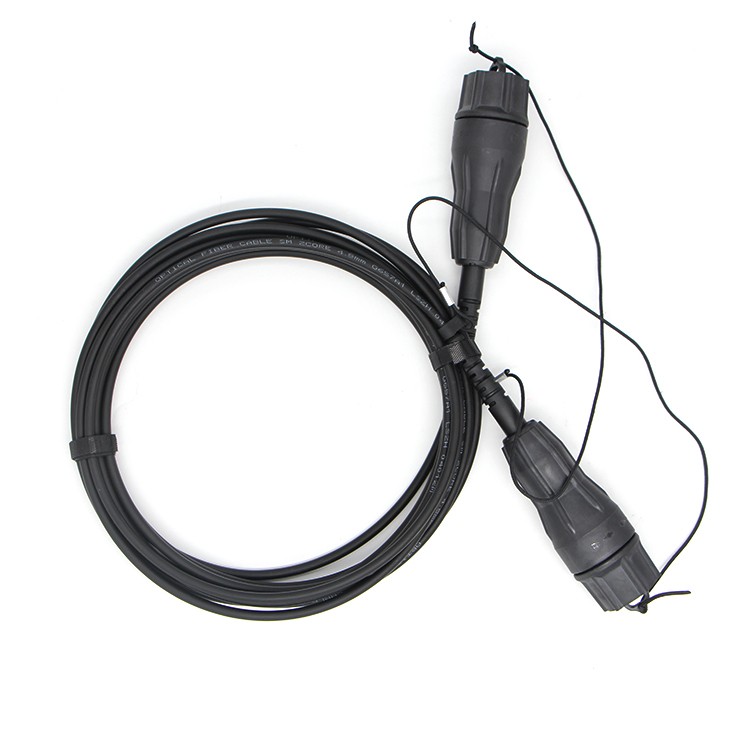

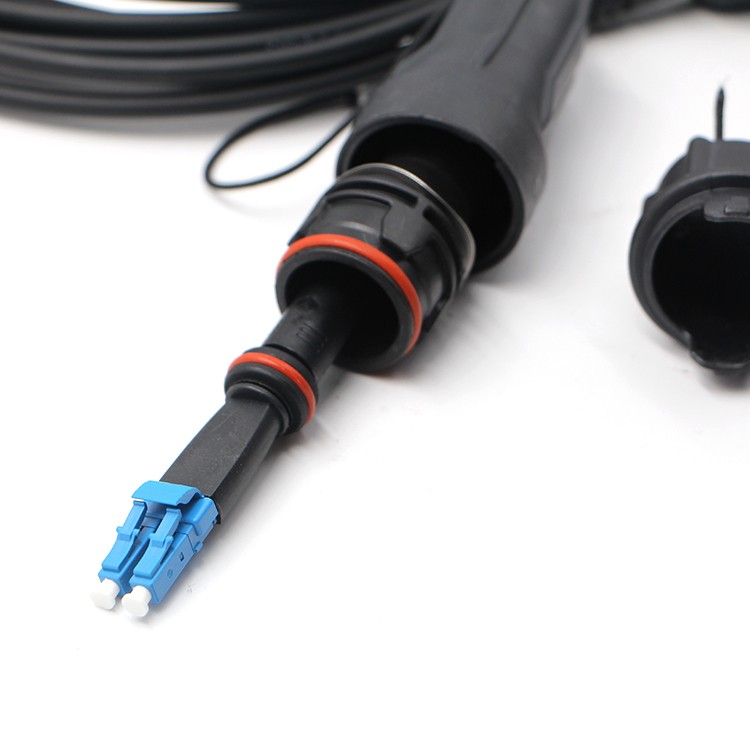

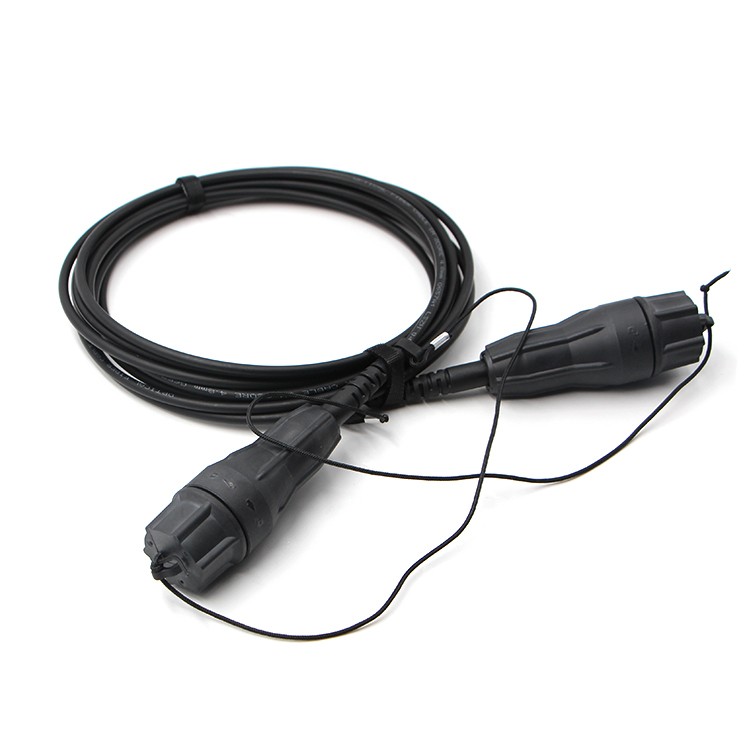

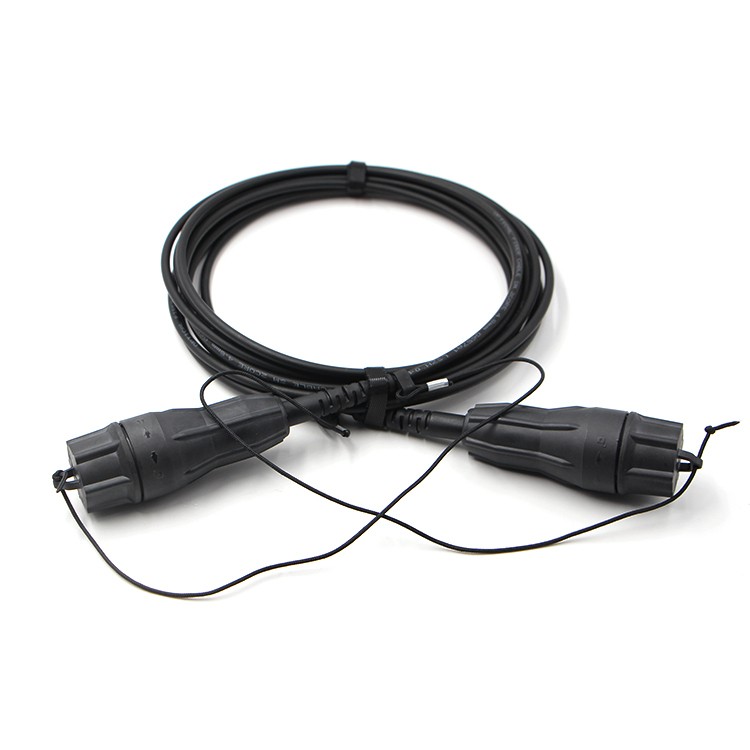

QYY- LC SM Duplex G657A1 Outdoor Waterproof LSZH Fiber Jumper Patch Cord
Features:
1. Ruggedised sealing system for fiber-to-the-antenna and industrial applications
2 .FTTA , 4G/5G base station,CATV outdoor Application;
3. Cable’s jacket:LSZH or TPU; Armoured or Non Armoured;
4. Cable diameter 4.8 mm
5. Waterproof (IP67), dust proof and corrosion resistant
Item
Data
Insertion Loss
≤0.3dB
Return Loss
SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB
Mechanical life
500cycles
Working temperature
-20°C~+70°C
Storage temperature
-20°C~+70°C
Protection Level
IP67
Tensile Data
Tensile between junction and fiber cable≥100N
