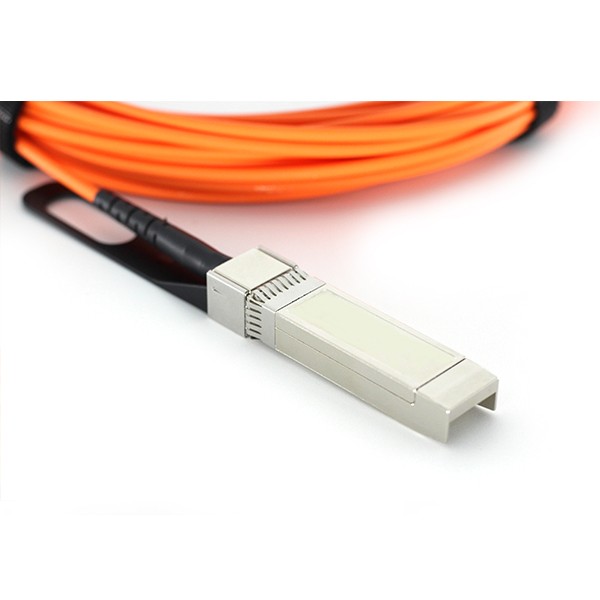

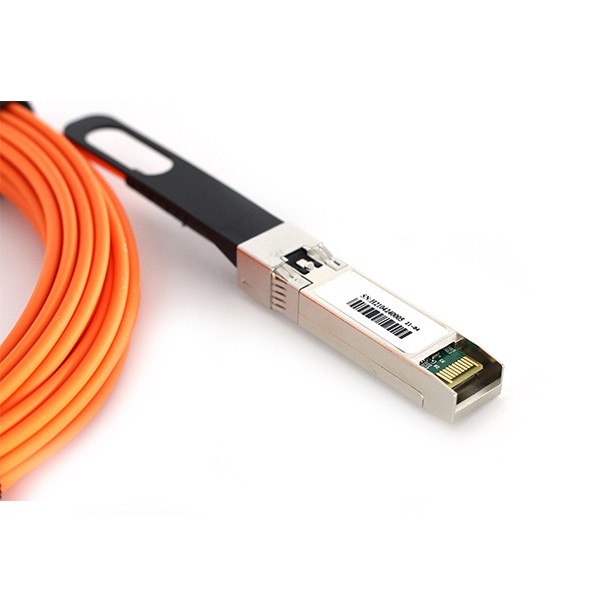

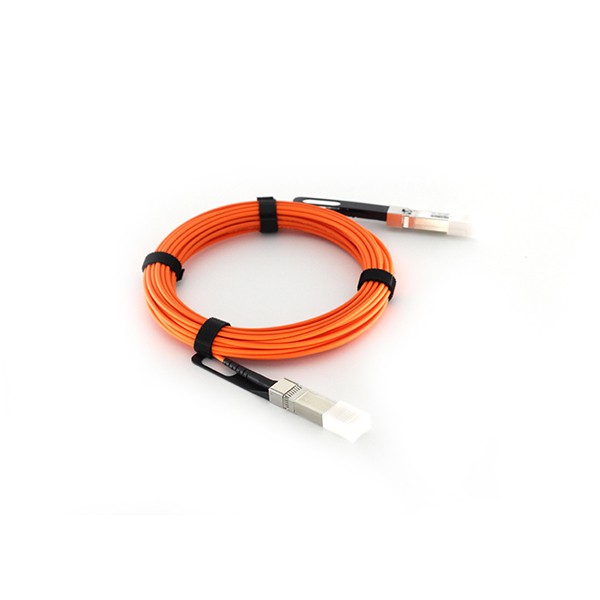

QYY- 10G SFP+ Active Optical Cable

optical Transceiver module  , SFP  , 40G QSFP+ Direct Attach Cable
Inquiry Send Email

Description

QYY- 40G QSFP+ Direct Attach Cable


Features:

. Support 10GBASE-SR/10G Fiber Channel application

. Compliant to SFP+ Electrical MSA SFF-8431
. Compliant to SFP+ Mechanical MSA SFF-8432
. Multi rate of up to 11.3Gbps
. Transmission distance up to 300m
. +3.3V single power supply
. Low power consumption
. Operating case temp Commercial: 0°C to +70 °C
. RoHS compliant
. Password protection for A0h and A2h



Optical Characteristics :

Parameter Symbol Unit Min Typ Max Notes
Optical transmitter Characteristics
Data Rate DR Gbps 9.953 10.3125 11.3
Center Wavelength Range λc nm 820 850 880
Laser Off Power Poff dBm - - -45
Launch Optical Power P0 dBm -6.0     1
Extinction Ratio ER dB 3 - -
Spectral Width(RMS) RMS nm - - 0.45
Optical Receiver Characteristics
Data Rate BR Gbps 9.953 10.3125 11.3
Bit Error Rate BER dBm - - E-12 2
Overload Input Optical Power PIN dBm 2.4 - - 2
Center Wavelength Range λc nm 820 - 880
Receiver Sensitivity in Average Power Sen dBm - - -9.9 3
Los Assert LosA dBm -26 - -
Los De-Assert LosD dBm - - -12
Los Hysteresis LosH dB 0.5


Applications:

. 10GBASE-SR at 10.31Gbps
. InfiniBand QDR, SDR, DDR
. Other optical links
