Description

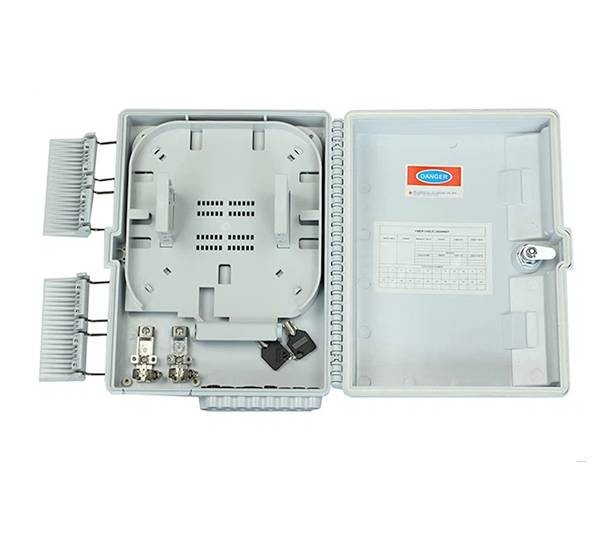

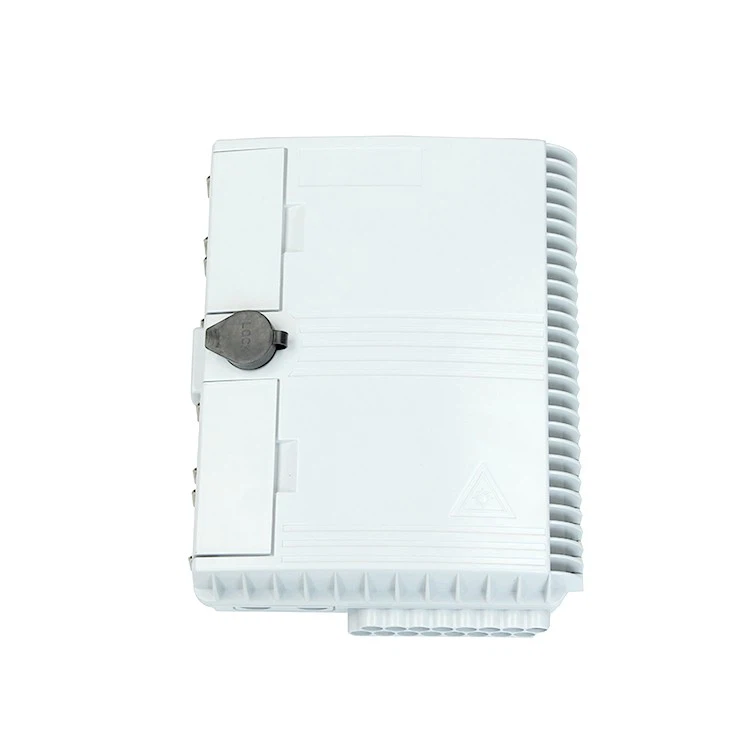

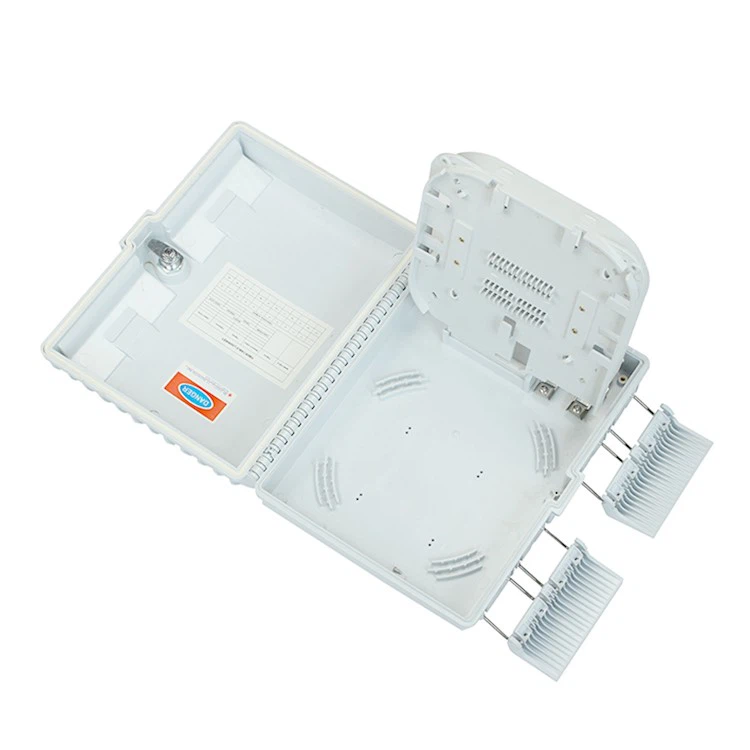

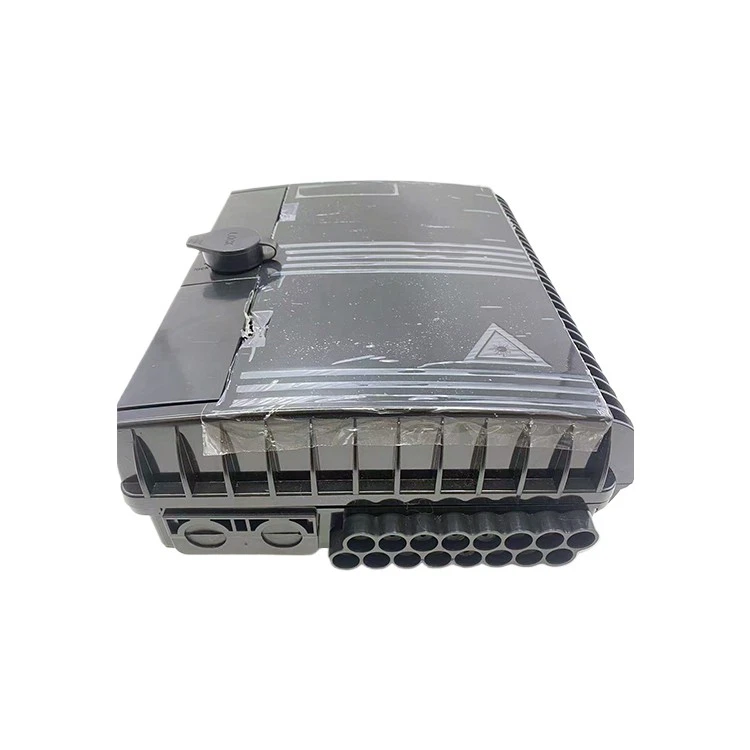

QYY- 16 Cores Optic Fiber Distribution Box
Feature：
. 16 core Anti-aging Optical Fiber Splitter Box is an exceptional product that exudes quality, reliability and cost-effectiveness.
. It represents the best in fiber optic technology and is a must-have for all who seek to enhance their communication networks.
. The box's compact design further ensures that it takes up minimum space and can be easily installed without disrupting the system's existing layout.
Specifications：
| Model | Description | Size(Pic 1) | Max Capacity | Installation Size(Pic 2) | Cable ways | ||
| A*B*C(mm) | SC | LC | PLC | D*E (mm) | |||
| QYY-020A | Distribution Box | 250*190*72 | 8 | 16 | 16(LC) | 130*82 | Not cup-joint |
| QYY-020B | Distribution Box | 250*190*72 | 12 | 24 | 16(LC) | 130*82 | Not cup-joint |
| QYY-021A | Distribution Box | 293*219*84 | 16 | 32 | 32(LC) | 155*82 | Not cup-joint / cup-joint |
Application：
. Especially suitable for FTTH construction in PON technology optical distribution network buildings,
supporting the installation and use of SC, FC adapters, and quick connectors.
. Supports wall mounting, suitable for indoor or outdoor installation, convenient and flexible.
