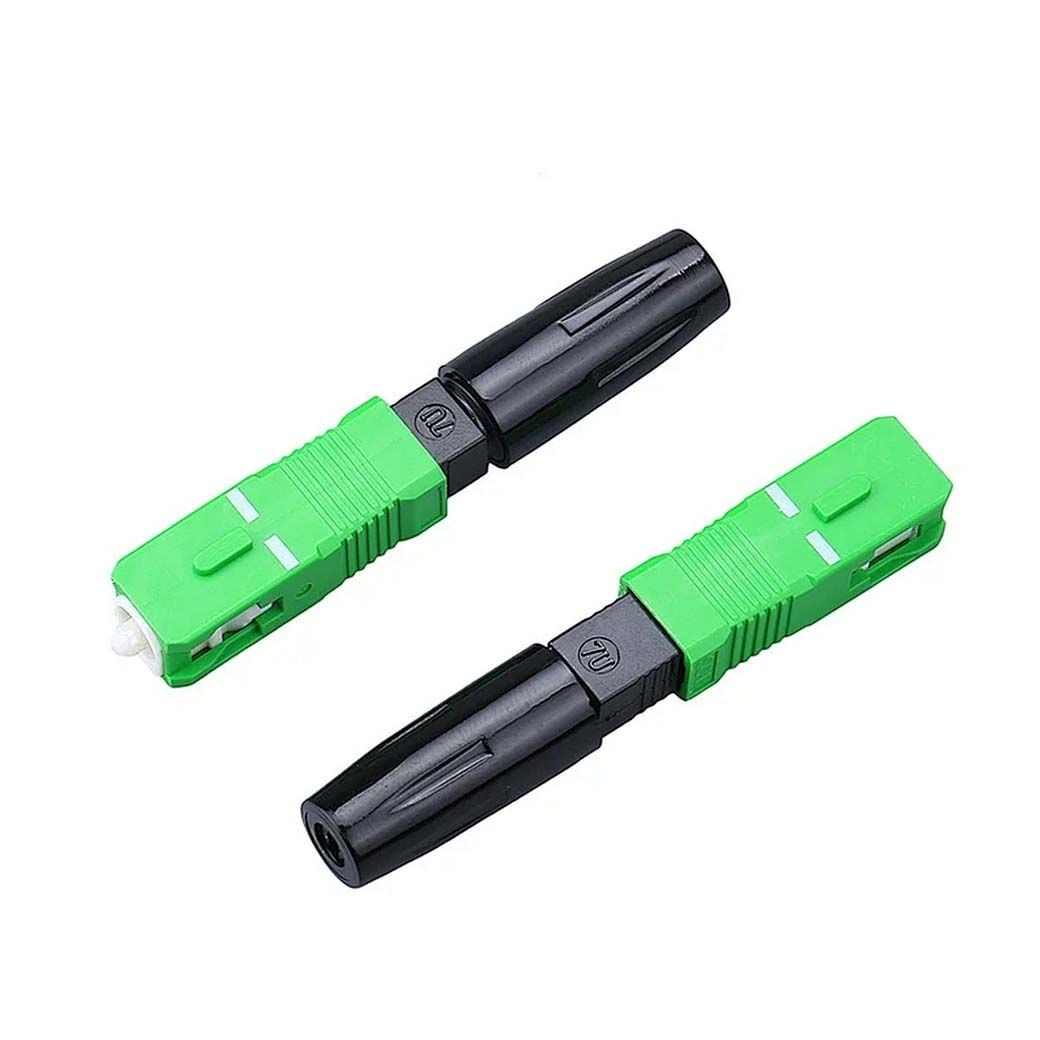

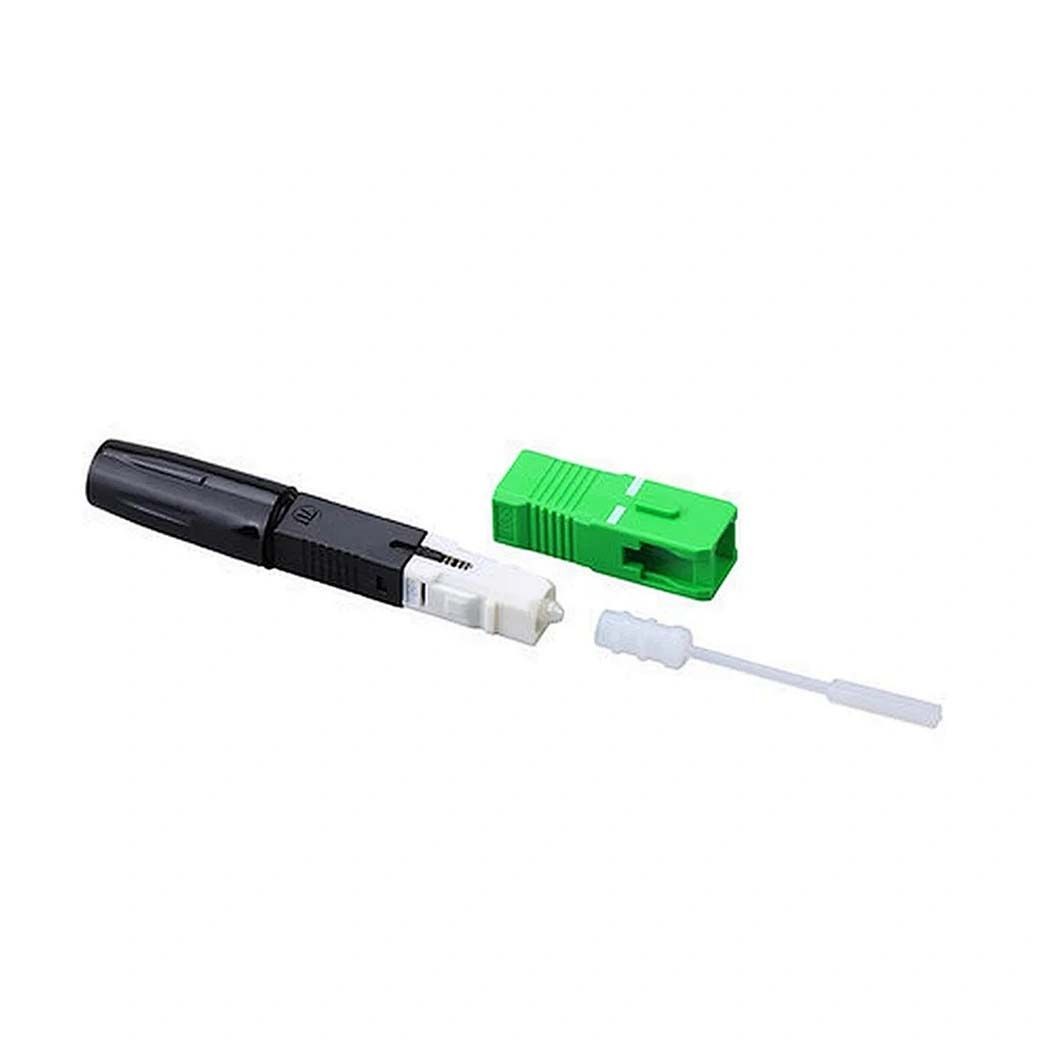

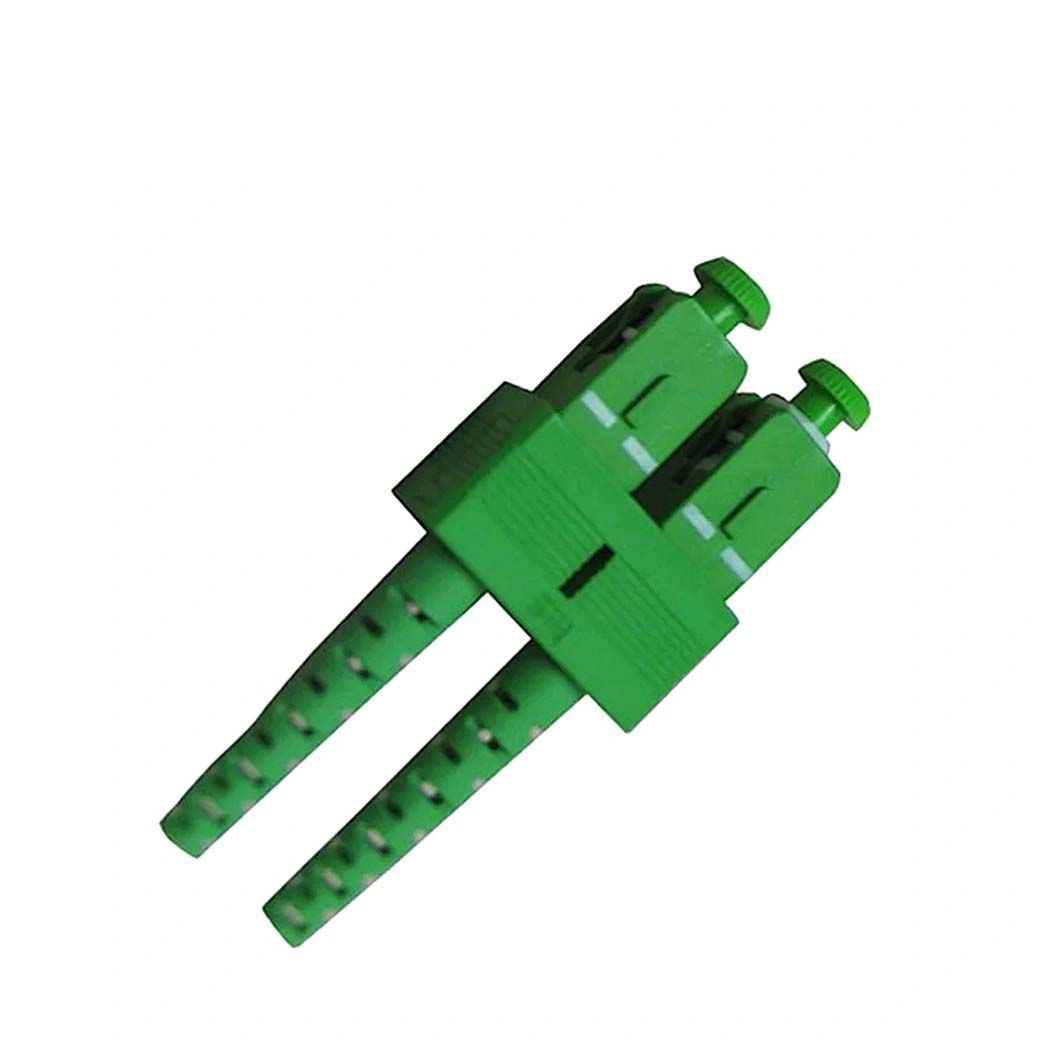

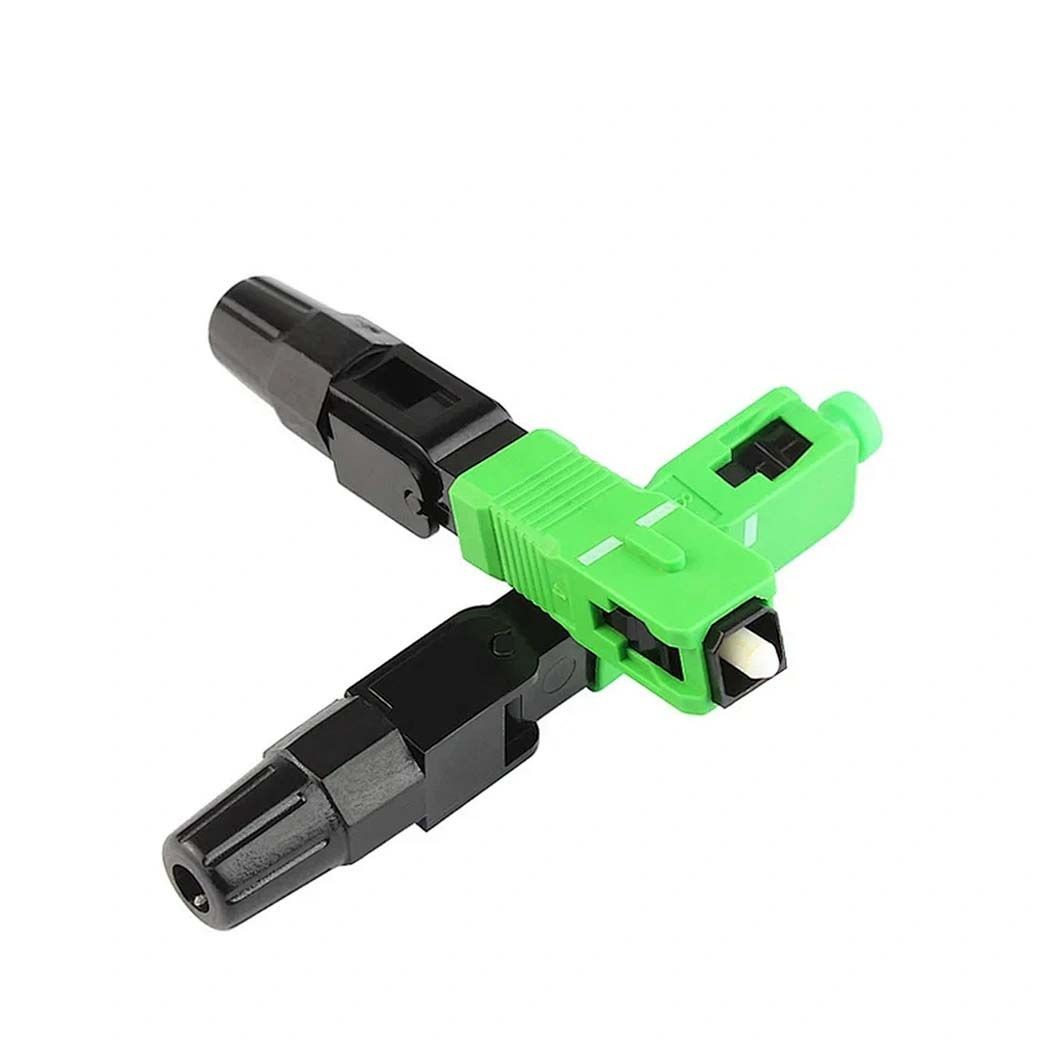

QYY- Fiber Optic Connector SC / APC Connector

Item ：SC/APC fast connector

NO. of fiber：1

Insertion Loss：UPC<0.2dB, APC<0.3dB

Material ：Plastic or steel

QYY- Fiber Optic Connector SC / APC Connector

Fast Connector Sc Apc Description:

. The fast connector is designed for high quality and high efficiency for installation

. The structure of crimping position is a unique design, and need not gluing, polishing neither any consumables.

. Adopted fiber pre-installed structure

. Could be reused, and convenient for field installation

Feature:

. Low insertion loss, high return loss

. Comply standard of IEC61754-4

. ROHS compliant

. Patch panels

. Direct equipment termination

. Fiber to the Subscriber (FTTx) applications

. Repair/replacement requirements

. Equipment test leads

Specification:

cable applicable	3.1 x 2.0 mm drop cable
cable diameter	125μm ( 657A & 657B )
clad diameter	250μm
fiber type application	single mode
operation time	about 100s(not including fiber management )
insertion loss	≤ 0.3dB(1310nm & 1550nm)
return loss	≤ -40dB
bare fiber strength	>5 N
clad strength	>10 N
of tension	>50 N
operation temperature	-40~+7 250μm 5°C
tensile strength (20 N)	IL ≤ 0.2dB RL ≤ 5dB
mechanical ‎durability	(500 times) IL ≤ 0.2dB RL ≤ 5dB

Name	Type
Fiber patch cord /Jumper	SC FC,ST LC, , MPO, MTRJ,MU
Fiber adapter	SC,FC,ST,LC,MPO, e2k,bare,hybrid
Fiber connector	LC,SC,ST,FC,MPO,MTRJ,MU
Fiber splitter	FBT,PLC
Fiber distribution box	FDB
Fiber terminal box	TB
Fiber optic splice Closure	Horizonal Dome
Fiber Cable	2 core 4core 6core 8 core 12core 24 core 48 core 96core,Armoured,waterproof,MPO,Multimode ,(MM)(OM1 OM2 COM3 OM4 ),Standred(FC LC SC ST ))
Fiber attenuator	Variable,Others
Fiber tester and tool	OTDR Tester,Fusion Splicer fiber cleaner
Fiber patch panel	standred
Fiber loopback	Standred
