Description

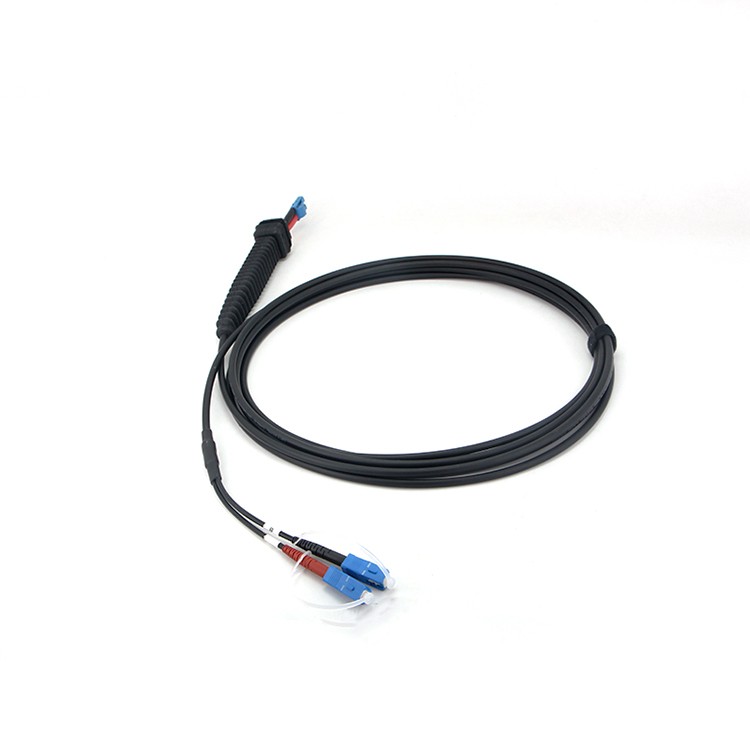

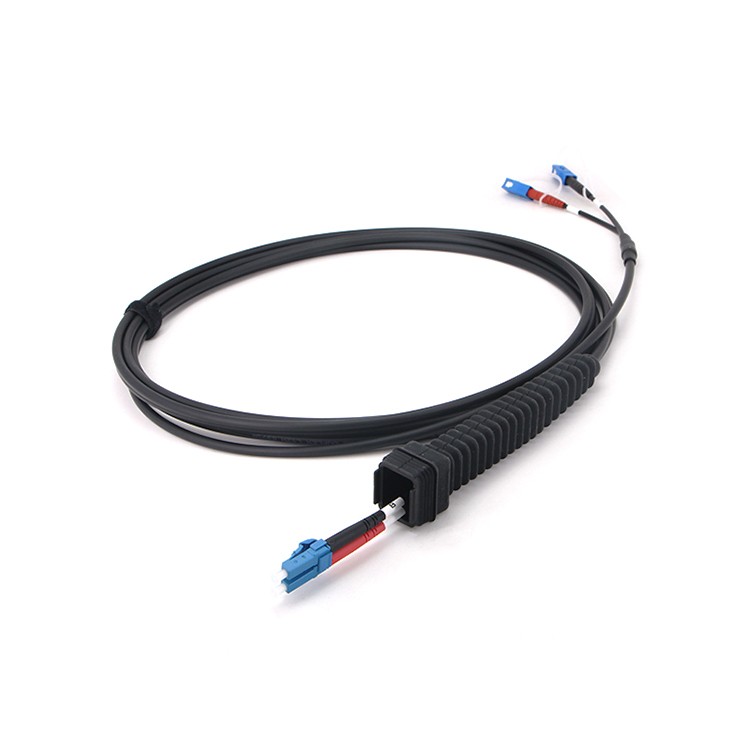

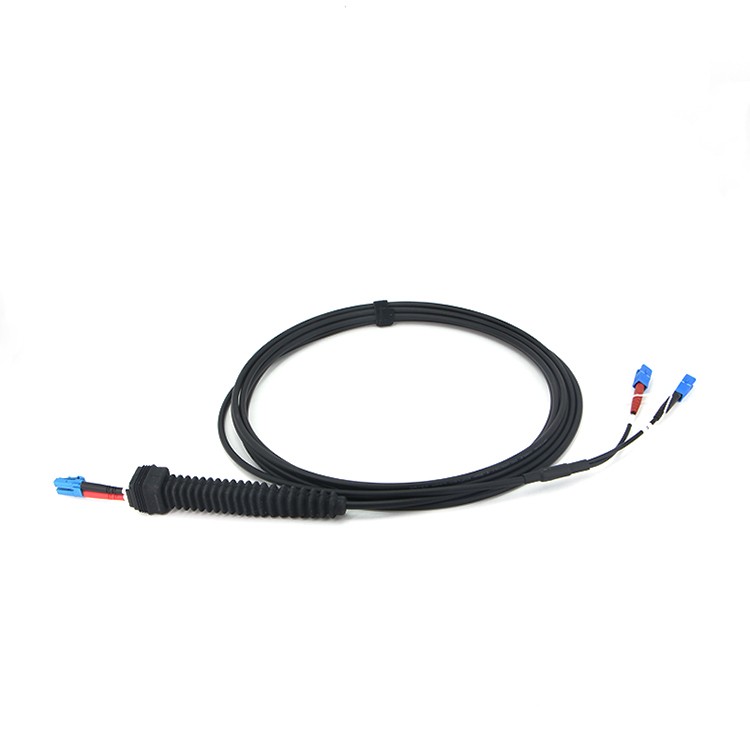

QYY- LC SM Duplex G657A1 Outdoor Waterproof LSZH Fiber Jumper Patch Cord
Features:
1.Standard DLC connector
2.Available Single mode and Multimode
3.IP67 protection, salt-mist proof, humidity proof
4.Aluminum housing, compact design
5.Broad temperature range and wide range of indoor and outdoor Patch cables
6.Easy Operation, reliable and cost-effective Installation
7.The connector of side A is DLC, and side-B can be LC,FC,SC
8.Used for 4G 5G base station BBU, RRU, RRH, LTE
Item
Data
Insertion Loss
≤0.3dB
Return Loss
SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB
Mechanical life
500cycles
Working temperature/Storage temperature
-20°C~+70°C
Protection Level
IP67
Tensile Data
Tensile between junction and fiber cable≥100N
