Description

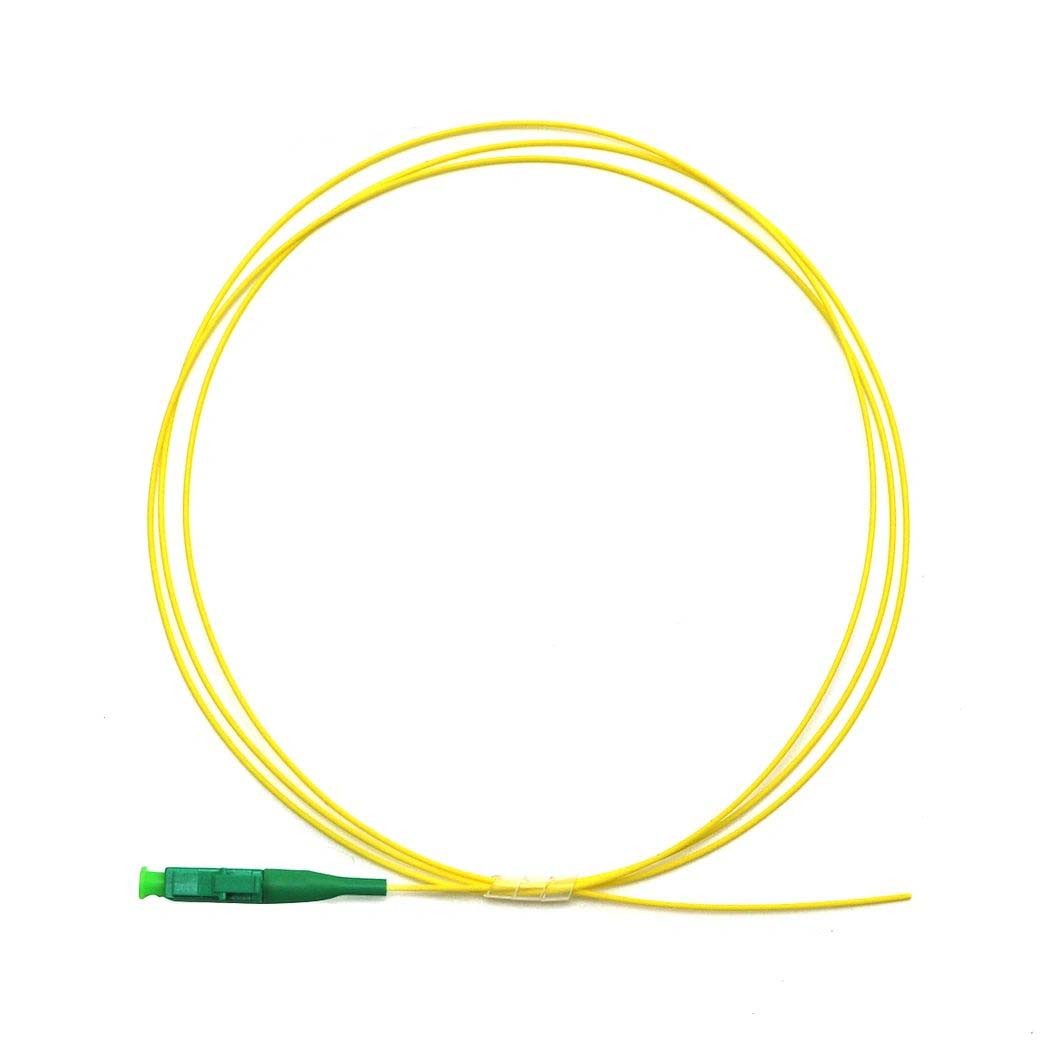

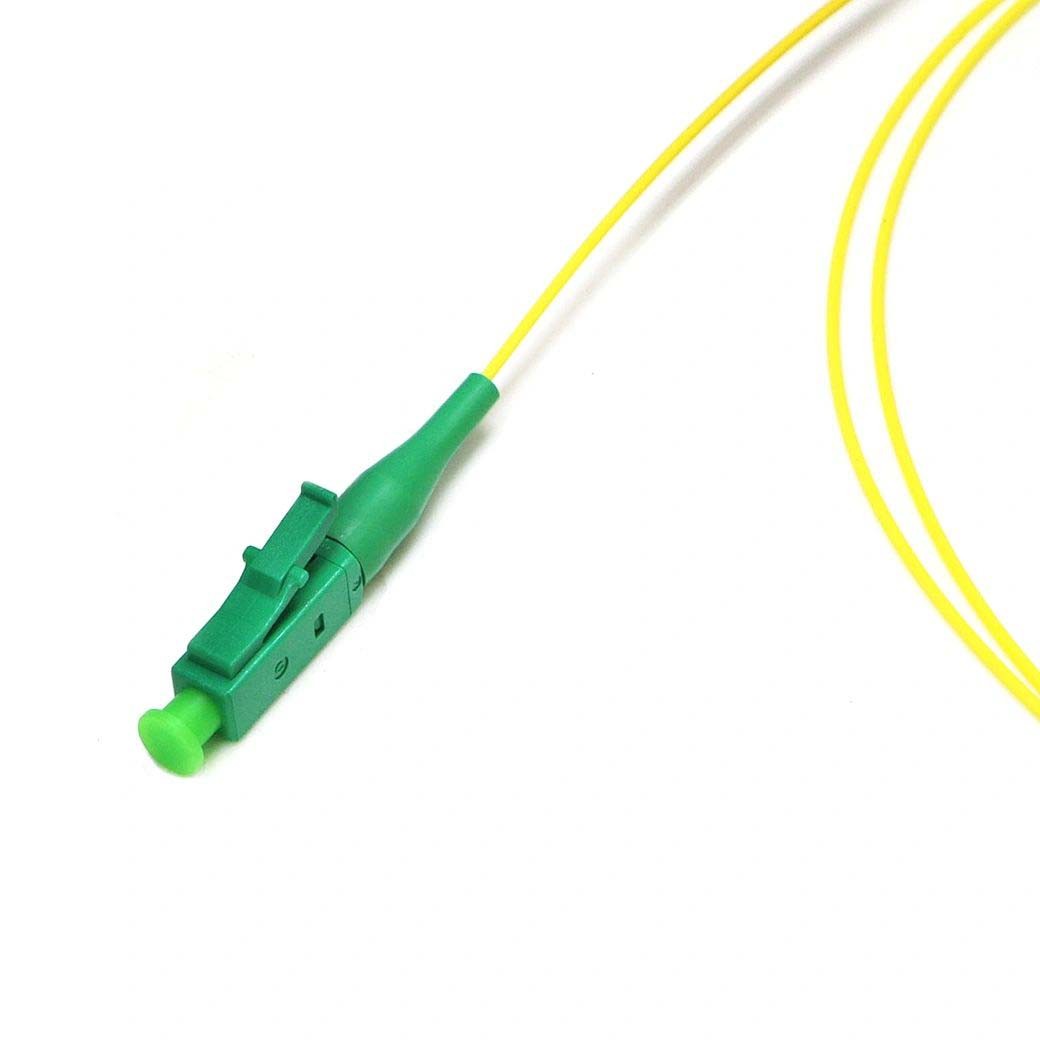

QYY- FiberOpticPigtailSimplex/Singlemode0.9mmPatchCord
Features:
. 100% test before shipment
. Low insertion loss and high return loss
. Custom Configurations Available at No Extra Charge
. Available in fiber bunch, ribbon fan-out, pigtail available
. Serialized & Individual Test Records
. Meets ROHS and Bell core GR 326-core standards
Applications:
. FTTH application
. Premise installations
. Data processing networks
. Wide Area Networks (WANs)
. Industrial ,mechanical and military
Specification:
Parameter | Single Mode | Multi Mode | ||||
Basic | Fiber connector | FC, SC, LC, ST, MU, MTRJ, MPO | ||||
Ferrule End-face | PC | UPC | APC | UPC | ||
Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3bB | ||
Return Loss | ≥50dB | ≥55dB | ≥60dB | ≥35dB | ||
Ceramic Ferrule Specification | 125.5um concentricity deviations:<=1um | 127um concentricity deviations:<=3um | ||||
Suitable Fiber | 9/125um | 50/125um,62.5/125um | ||||
End-face Geometry | Radius of Curvature | 7~25mm | 5~12mm | N/A | ||
Fiber Protrusion | ≤50nm | ≤100nm | N/A | |||
Fiber Under Cut | ≤100nm | ≤100nm | N/A | |||
Apex offset | ≤50um | |||||
Mechanical | Exchangeability | ≤0.2dB | ||||
Salt Spray | ≤0.1dB | |||||
Drop | ≤0.2dB(1.5M, 5 drops) | |||||
Vibration | IL ≤0.2dB(550Hz, 1.5mm) | |||||
Repeatability | ≤ 0.1dB(1000 times) | |||||
Durability | > 1000 times | |||||
Operating Temperature | -40°C ~ +85°C |
