Description

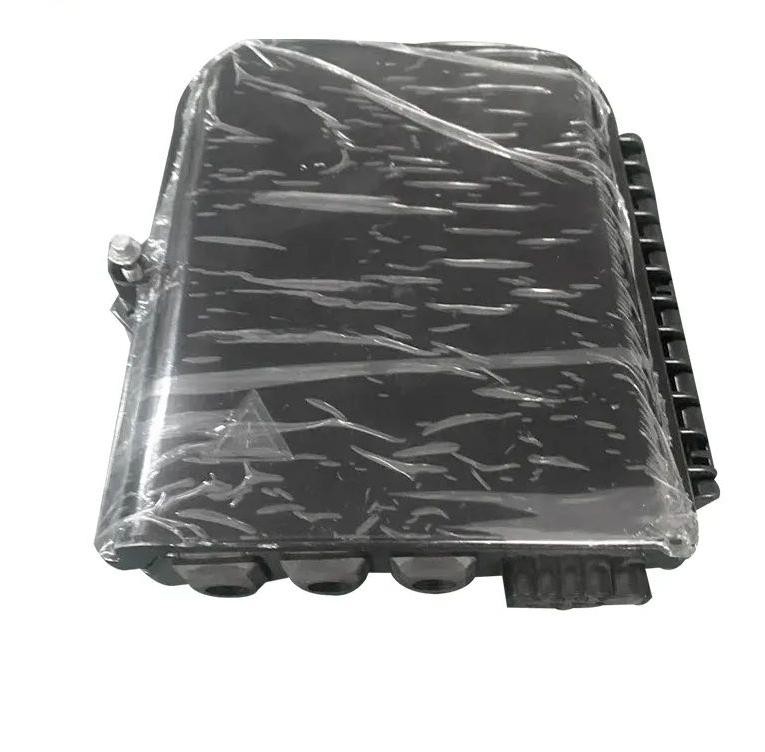

QYY- 8 Cores Optic Fiber Distribution Box
Feature：
. Total enclosed structure.
. Material: ABS, wet-proof、water-proof、dust-proof、 anti-aging, protectionlevel up to lP65.
. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distri-bution...etc all in one.

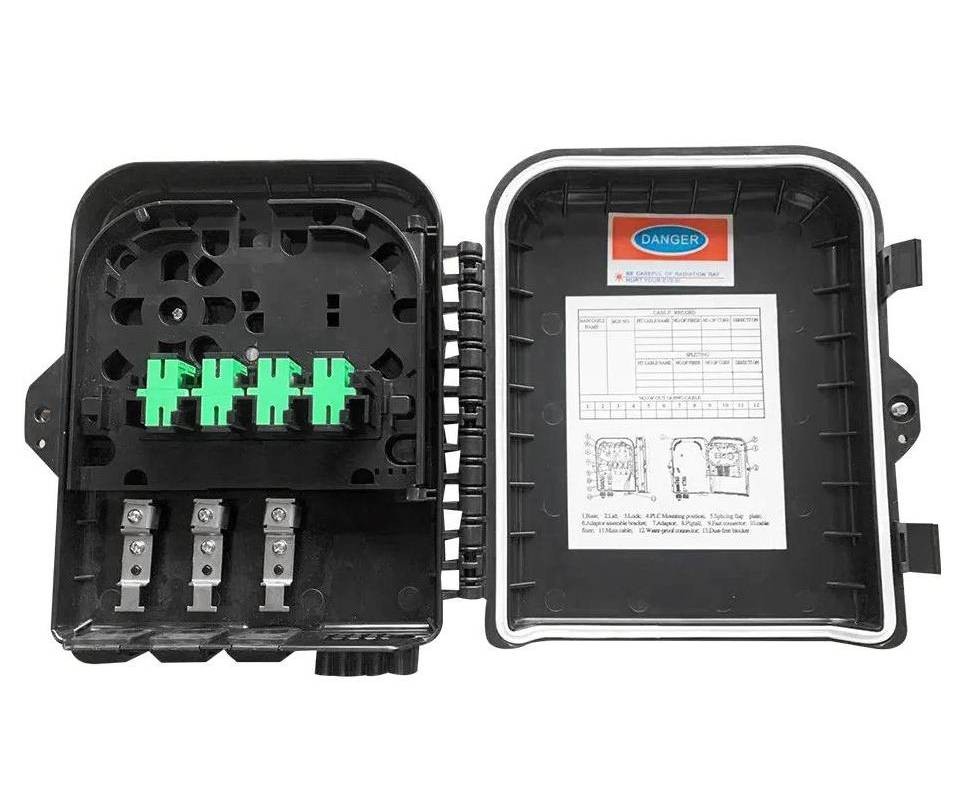

. Cable, pigtails, patch cords are running through own path without disturbingeach other,cassette type SC adaptor installation, easy maintenance.

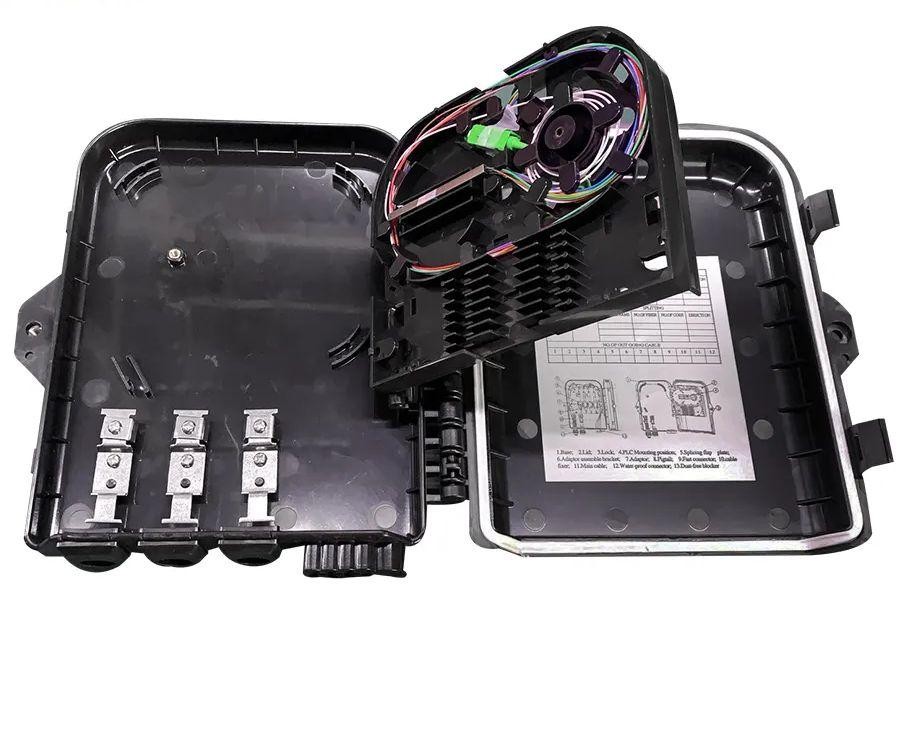

. Distribution panel can be flipped up, feeder cable can be placed in a cup-jointway, easy for maintenance and installation.

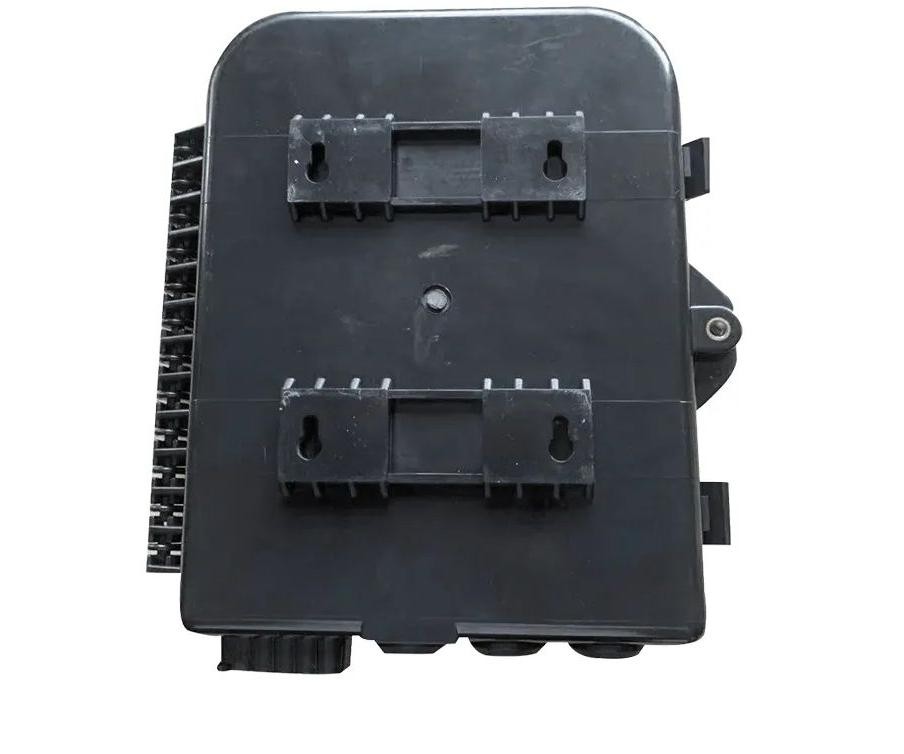

. Cabinet can be installed by the way of wall-mounted or poled-mounted, suitablefor both indoor and outdoor uses.
Specifications：
Work Environment：
. Environmental requirement
Working temperature:-40℃~+85°Relative humidity:<85%(+30℃)Atmospheric pressure: 70KPa~106Kpa
. Main technical datasheet
Insertion loss:<0.2dB
UPC return loss:>50dBAPCreturn loss: >50dB
Life ofinsertion and extraction:>500 times
