Description

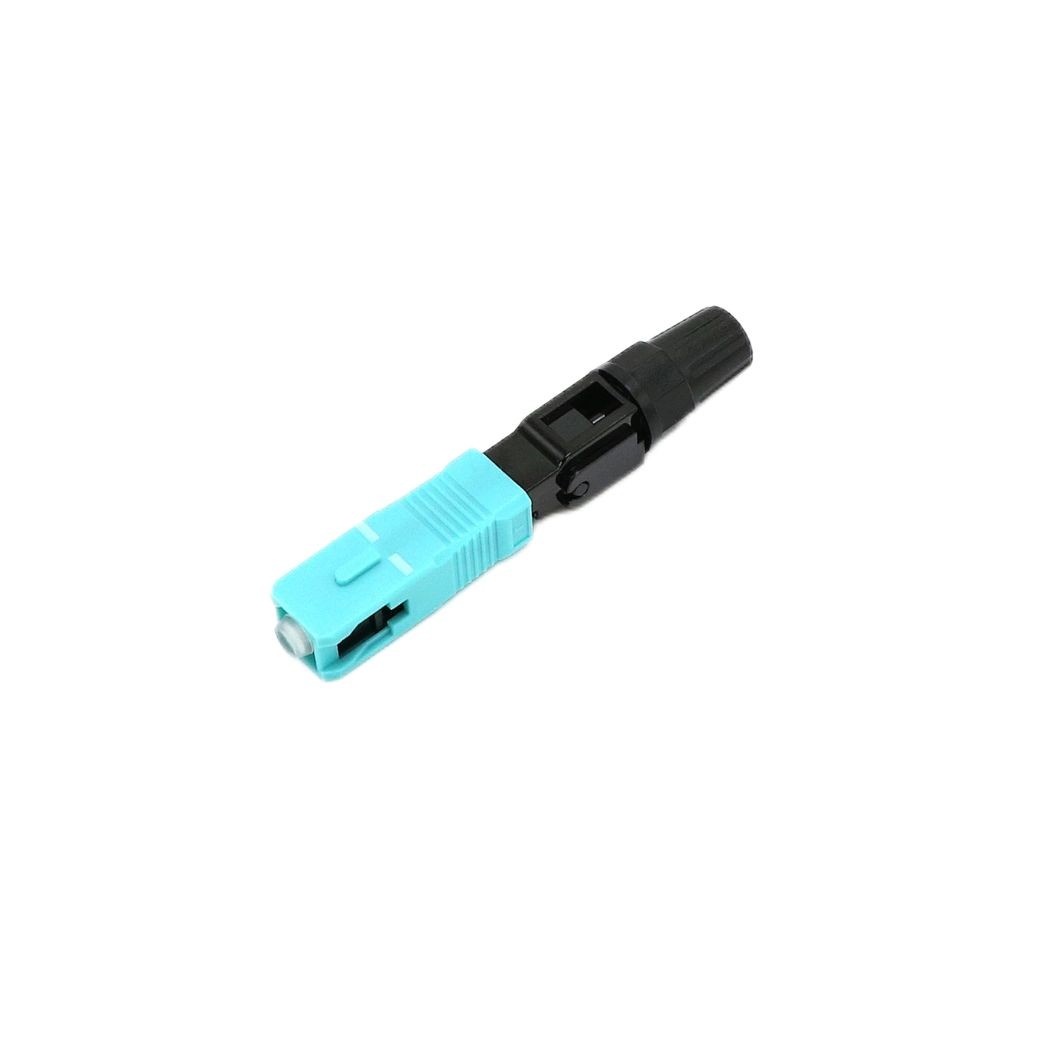

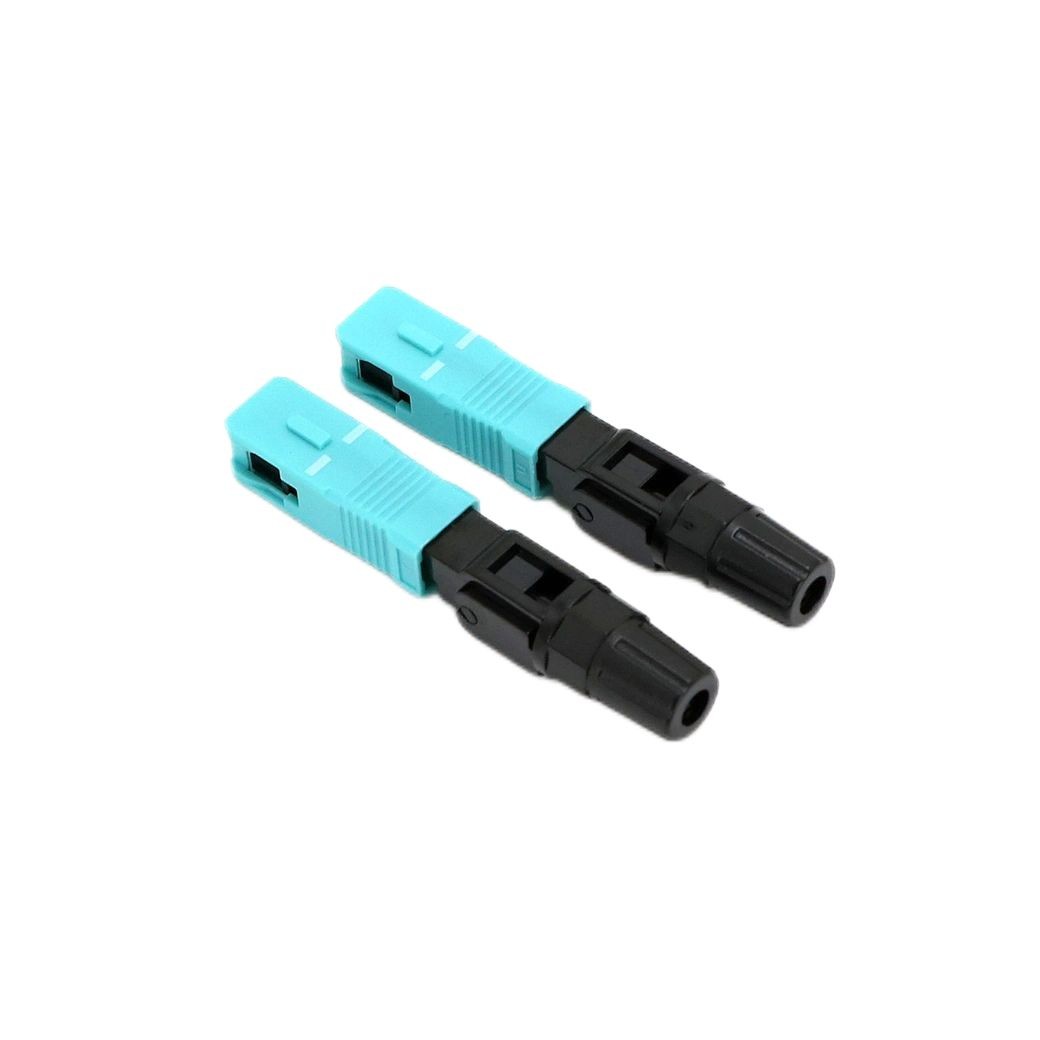

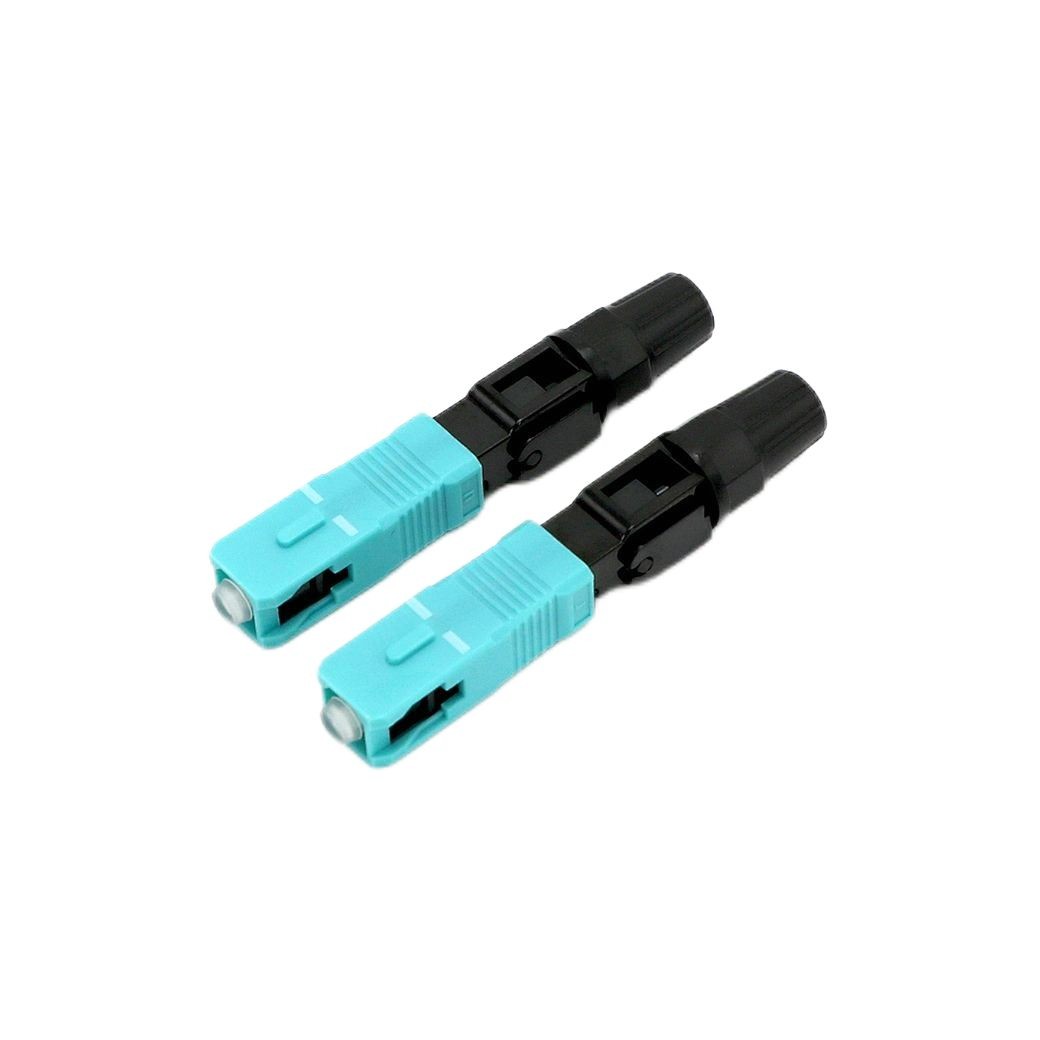

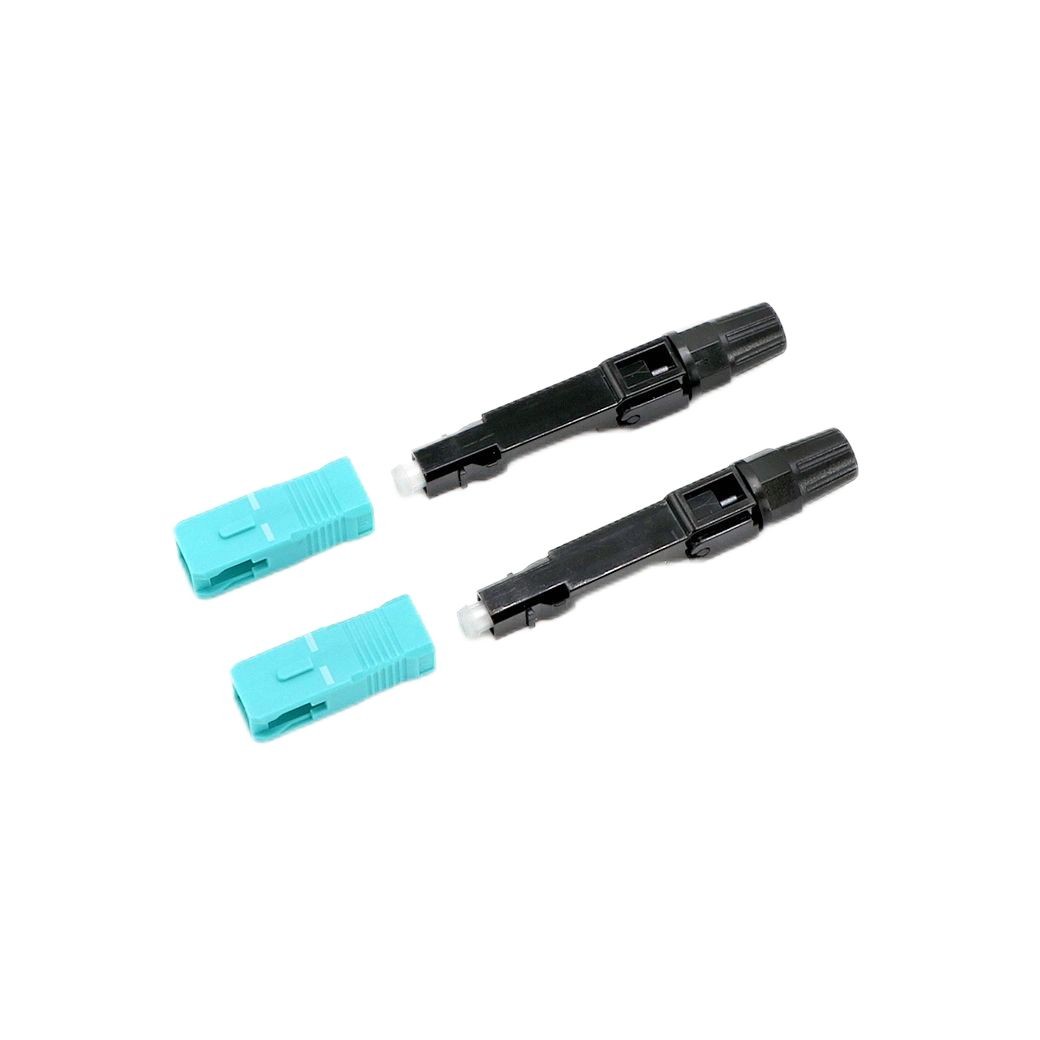

QYY- SC/UPC SC/APC Mechanical FTTH Optical Fiber Fast Connector
Feature:
. No special assembling tool
. Easy for learning technology by a simple assembling method (within 1 and half minutes)
. Minimize the defect rate by features of removal and reusable.
. Easy for assembling with mechanical splice and no polishing
Application:
. Optical network maintaining and repair.
. Local area network environment of connection.
. Fiber optic distribution frame.
. Terminal connection-leg of FTTH optic network.
Specification:
| Article | value |
| Insertion loss | ≤0.3 (max 0.4) |
| Return loss | ≥60dB |
| Connector type | SC/APC |
| Cable | drop 3.0mm / flat 2x3mm cable |
| Fiber clamping force | ≥3N |
| Tensile Strength | Typical ≥40N (Max 50N) |
| Online tensile strength 20N | IL variation (≤0.2dB) RL variation (≤5dB) |
| Working Temperature | -40℃ ~ +75℃ |
| Can be repeatedly used | Possible |
Ferrule Hole Sizes：
Singlemode：
125.0+1/-0um, concentricity<=1.0um
125.5+1/-0um, concentricity<=1.0um
126.0+1/-0um, concentricity<=1.0um
Multimode：
125um concentricity <=3um
127um concentricity <=3um
128um concentricity <=3um
Application:
. FTTH FTTB FTTX Network, CATV, to make patch cord, Telecommunication
Connector type:
. SC, SC/APC, 12 and 24 fiber connector, LC, MT based Multi-fiber Connector
Connector:
. LC, SC Fiber Optic connector, SC/FC, Fast Connector SC APC, FC
Fiber type:
. SM, SM or MM, G657A1, G652D, SM/MM
Operating temperature:
. -40°C ~ +80°C, -40 to +85 degree, -40~75℃, -45 to +85
Insert loss:
. less 0.1DB, <0.2dB, ≤0.3dB
