Description

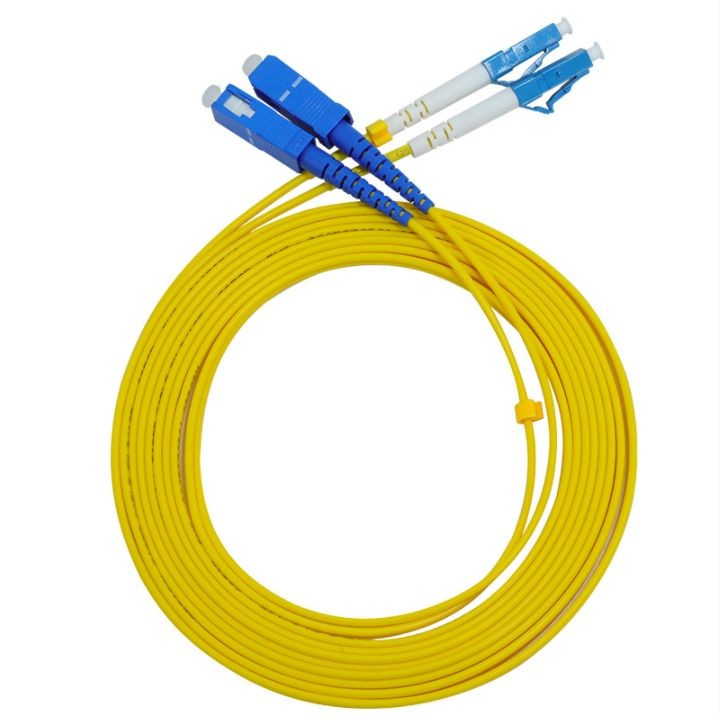

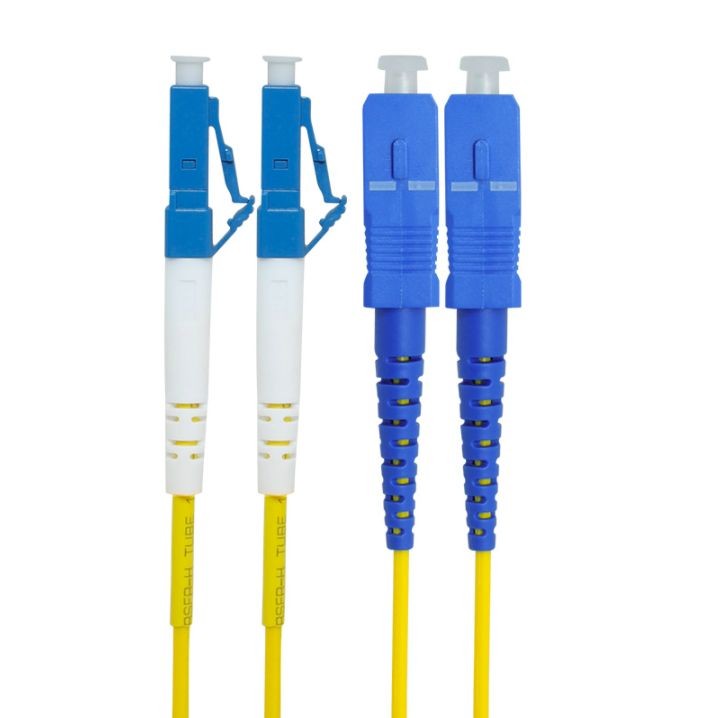

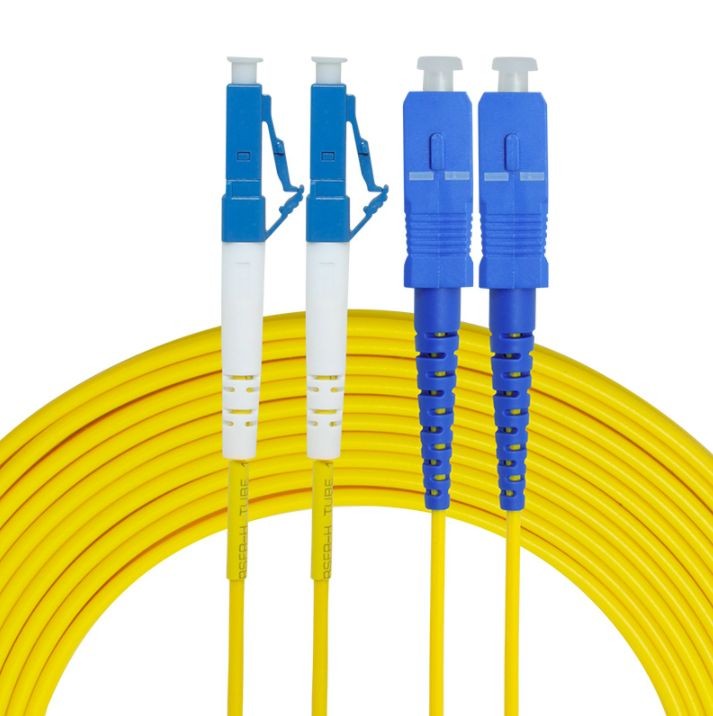

QYY- LC UPC-SC/UPC Duplex OS2 2.0mm PVC LSZH Fiber Patch Cord,Fibre Jumper, Fibre Patch Leads 1m
Features:
1. Low insertion loss .<=0.3DB
2.High return loss . >=55DB
3.Precise end face inspection by microscope .
4.Environmentally stable in optical performance .
5.Available lengths: 1/2/3/4/5/10/15/30 meters.
6.Ceramic ferrules for long-lasting reliability and precision.
Mode
SM
MM
Polish
UPC/APC
PC
Insertion Loss
Typical ≤0.2dB Maximum ≤0.3dB
≤0.25dB
Return Loss
≥50dB/≥65dB
≥40dB
Interchangeability
≤0.2dB
Durability
≤0.2dB (1000 times)
Repeatability
≤0.1dB
Temperature
≤0.2dB (-40+85 sustain 100 hours)
Order Information：
. LC/APC - LC/APC/ SM 9/125 SIMPLEX 3.0mm-2M PVC
1 2 1 2 3 4 5 6 7
. 1 Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
. 2Ferrule End-face: PC, UPC, APC
. 3 Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
. 4 Cable Quantity: simplex or duplex
. 5 Cable Diameter: 3.0mm, 2.0mm, 0.9mm
. 6 Cable Length: 1, 2, 3 meter or customized
. 7 Cable type: PVC, LSZH,
Application :
. Fiber Optic Patch Cord LC/APC to LC/APC
. Communication Workshop
. FTTH
. Local Area Network
. Fiber Sensor
. CATV
. Fiber Optical Communication System.
